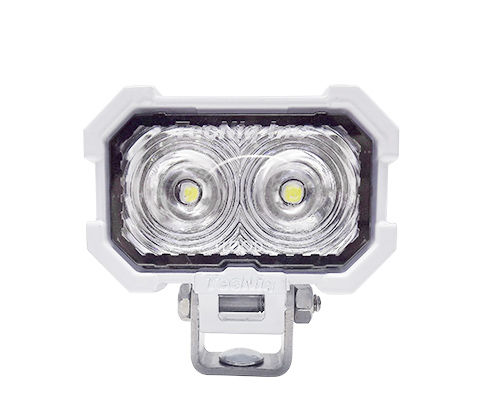

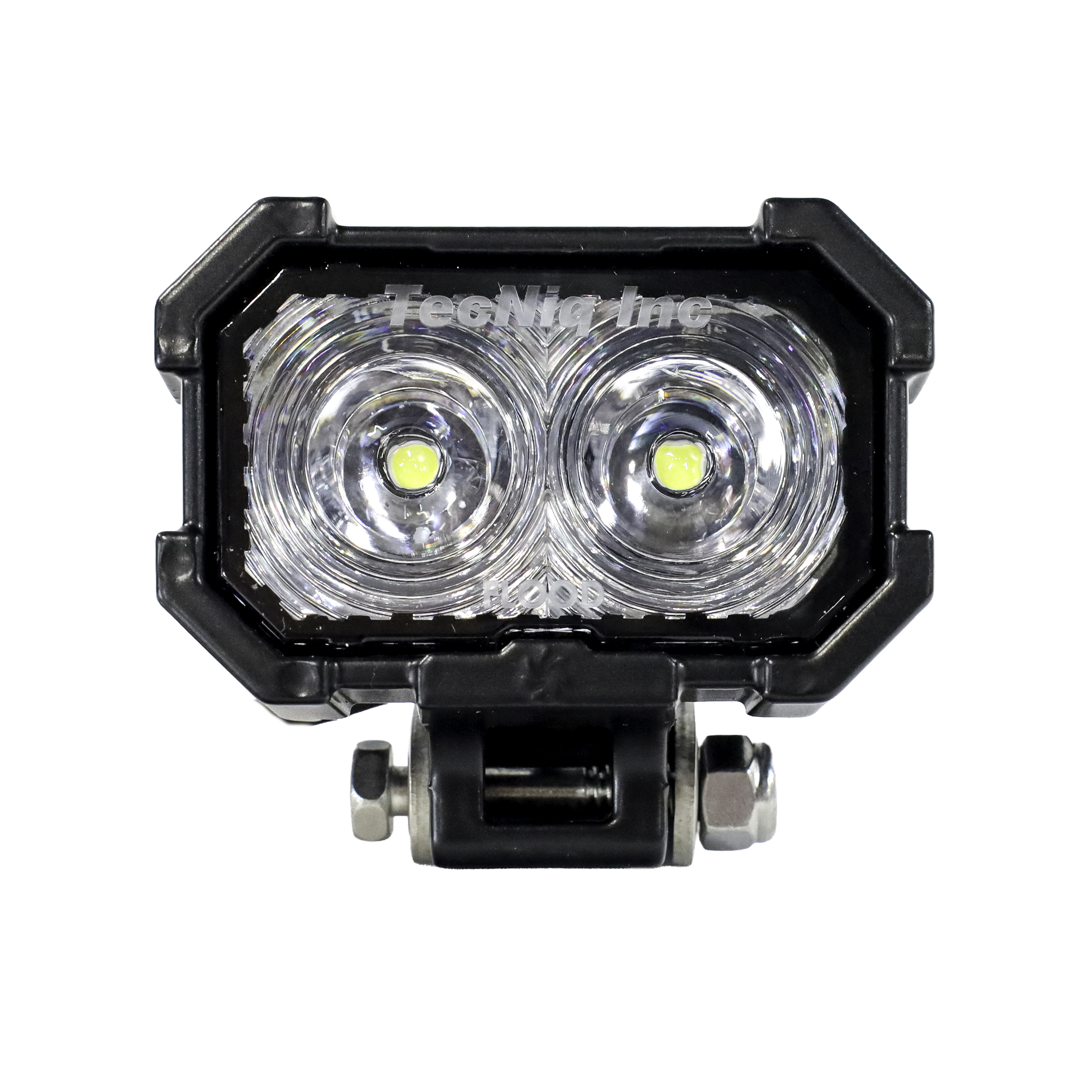

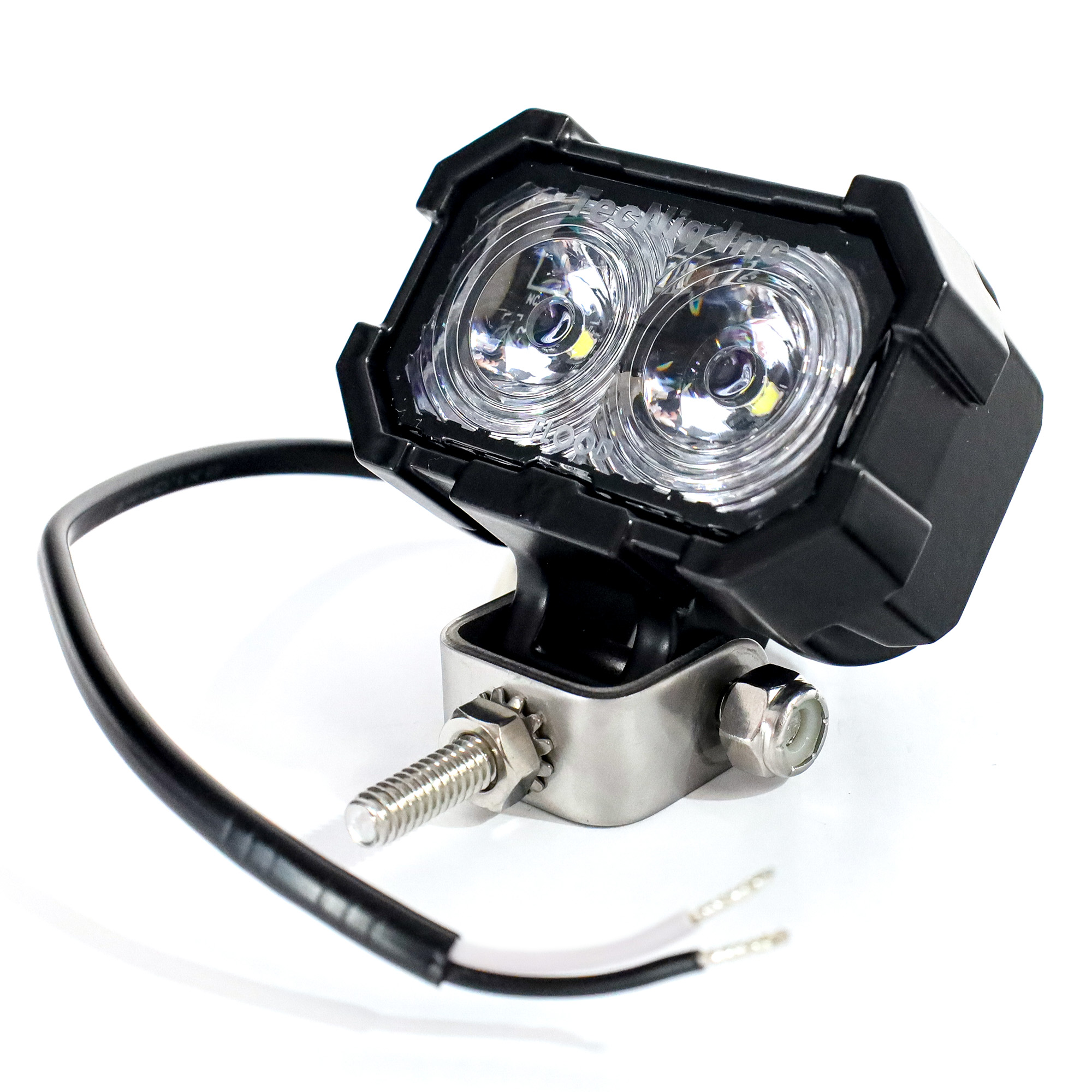

P02 2 LED Steelhead Heavy Duty Work Light
P02 2 LED Steelhead Heavy Duty Work Light
Technical Features
- Designed for the most demanding task illumination applications, in the most extreme environments
- Vibration resistant and 100% water proof
- Models include Flood or Spot light projection
- Available in Black or White Heavy Duty Powder Coating

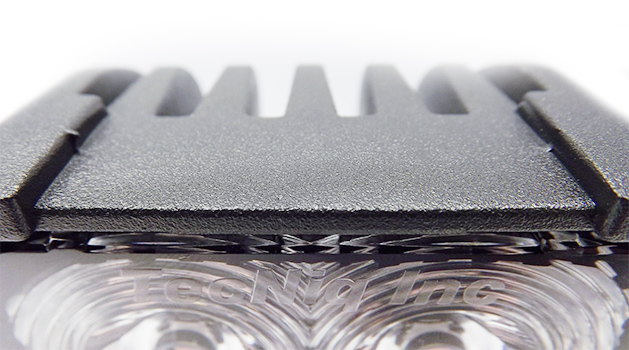

- Proprietary thermal management provides powerful performance in a small package
- IP68 Rated - Dust and water proof
- Stainless Steel mounting hardware included
The TecNiq Steelhead Line was engineered with the most extreme conditions in mind; 100% waterproof, vibration resistant, IP68 rated, and backed by the TecNiq guarantee. With flood or spot light lens options, and ability to choose from varying lumens, resulting in a heavy duty work lamp that surpasses the competition in performance and quality.
| Dimensions |
|
| LEDs | 2 |
| Lumens | 750 Lumens |
| Voltage | 9-20VDC |
| Current |
2 LED (12V/24V) White - 0.52A/0.26A |
| Connectors | 9" Pigtail |

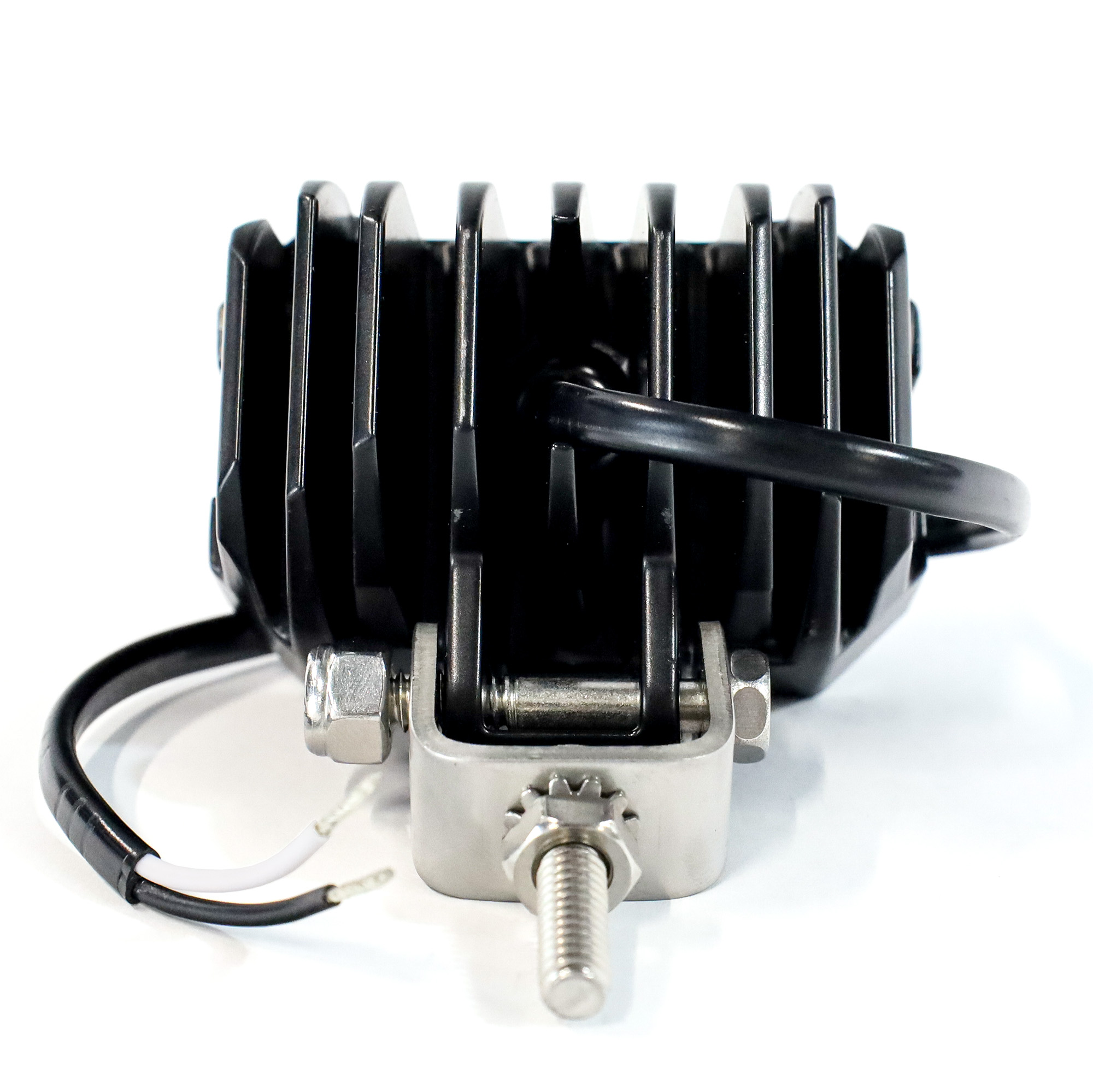

| Mounting | Mounts with 5/8" mounting bolt and hardware (included) |
| LED Colors | White |
| Wire Colors |
Black Wire - Ground White Wire - 12/24VDC Power |
| Ground | Black Wire |
| Lens Colors | Clear |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| P02-WBFP-1 |
SteelHead Flood Lamp 2 LED Black Finish Pigtail Wires
|
 |
 |
4 | Sheathed Pigtail | |
| P02-WBSP-1 |
SteelHead Spot Lamp 2 LED Black Finish Pigtail Wires
|
|
|
4 | Sheathed Pigtail | |
| P02-WWFP-1 |
SteelHead Flood Lamp 2 LED White Finish Pigtail Wires
|
|
|
4 | Sheathed Pigtail | |
| P02-WWSP-1 |
SteelHead Spot Lamp 2 LED White Finish Pigtail Wires
|
|
|
4 | Sheathed Pigtail |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
