M90 Accent Accent Lights
M90 Accent Accent Lights
Technical Features
- Completely waterproof light, perfect for illuminating steps or walk ways

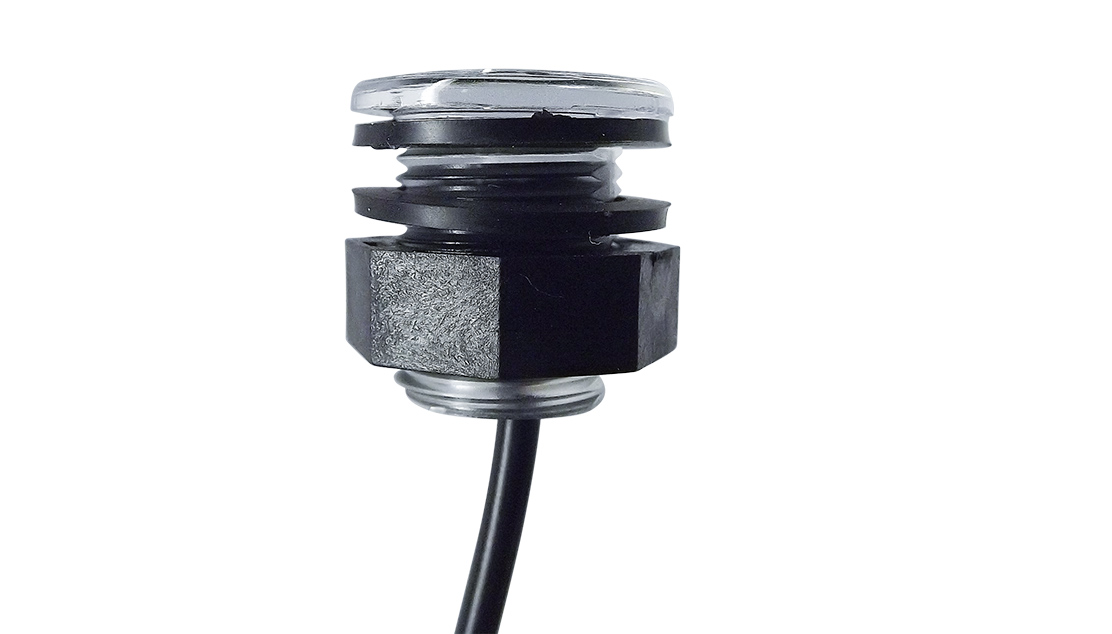

- Easy installation with threaded nylon nut
- Comes with our corrosion resistant 316 SS polished cover
- Illuminates your livewell for the life of your boat.
- Smooth lens surface, blends into well wall nicely

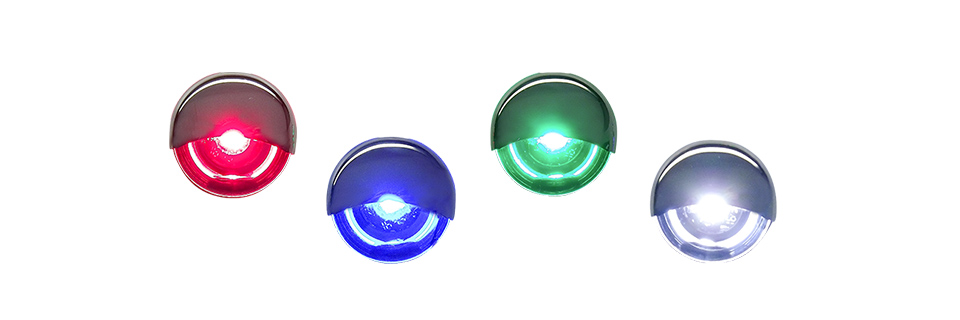

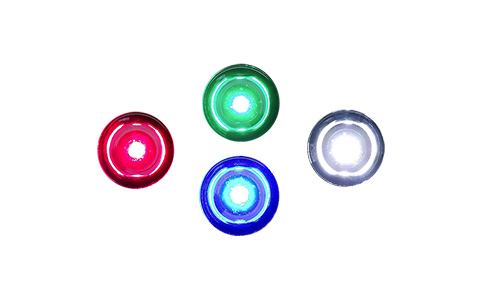

- Available in four colors, Red, Green, Blue, and White
- Includes (2) chemical resistant TPE gaskets, and one nylon nut
- Vibration and shock proof
- IP68 Rated
- Life performance: 50,000 hours
- WIRE COLORS
Black – Ground, White – Positive
Introducing the very best in Livewell Illumination - TecNiq's M90. TecNiq's new Livewell Lights are available in Blue, Green, Red, and White colored LEDs. Guaranteed to be water & shock proof for a lifetime of use. These lights are easily installed with the threaded nut attachment design. They include two TPE gaskets that are chemical & gasoline resistant. For dependable livewell lighting, look no further than TecNiq's M90 Livewell Lights.

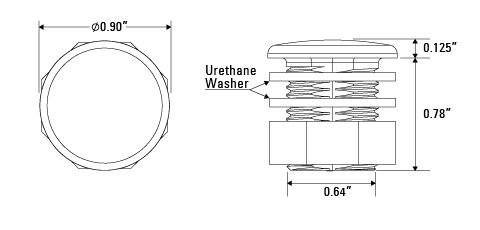

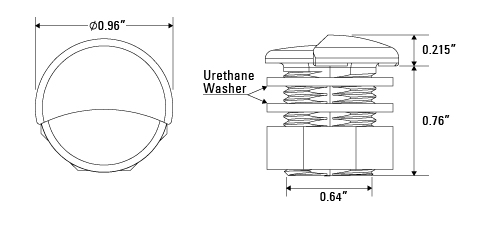

| Dimensions |
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current |
0.05A-0.07A - Red 0.02A-0.03A - Green/Blue 0.06A-0.08A - White |
| Connectors | 9" |
| Mounting |
Mounts using 3/4" hole with nylon nut and TPE gaskets
|
| LED Colors | White • Blue • Red • Green |
| Wire Colors |
White Model Black Wire - Ground White Wire - 12/24VDC Power RGB Model Black Wire - 12/24VDC Power Red Wire - Ground (Red) Green Wire - Ground (Green) Blue Wire - Ground (Blue) |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| M90-3S00-1 |
Interior Accent Light, RGB LED, SS Cover
|
 |
 |
50 | Sheathed Pigtail (9") | |
| M90-BC0F-1 |
Live Well Light, Blue, TPU Gasket, Nylon Nut w xTM06-2S
|
 |
|
50 | Sheathed Pigtail (9") | |
| M90-BS00-1 |
Interior Accent Light, Blue LED, SS Cover
|
|
|
50 | Sheathed Pigtail (9") | |
| M90-GS00-1 |
Interior Accent Light, Green LED, SS Cover
|
 |
|
50 | Sheathed Pigtail (9") | |
| M90-RS00-1 |
Interior Accent Light, Red LED, SS Cover
|
 |
|
50 | Sheathed Pigtail (9") | |
| M90-WS00-1 |
Interior Accent Light, White LED, SS Cover
|
 |
|
50 | Sheathed Pigtail (9") |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
