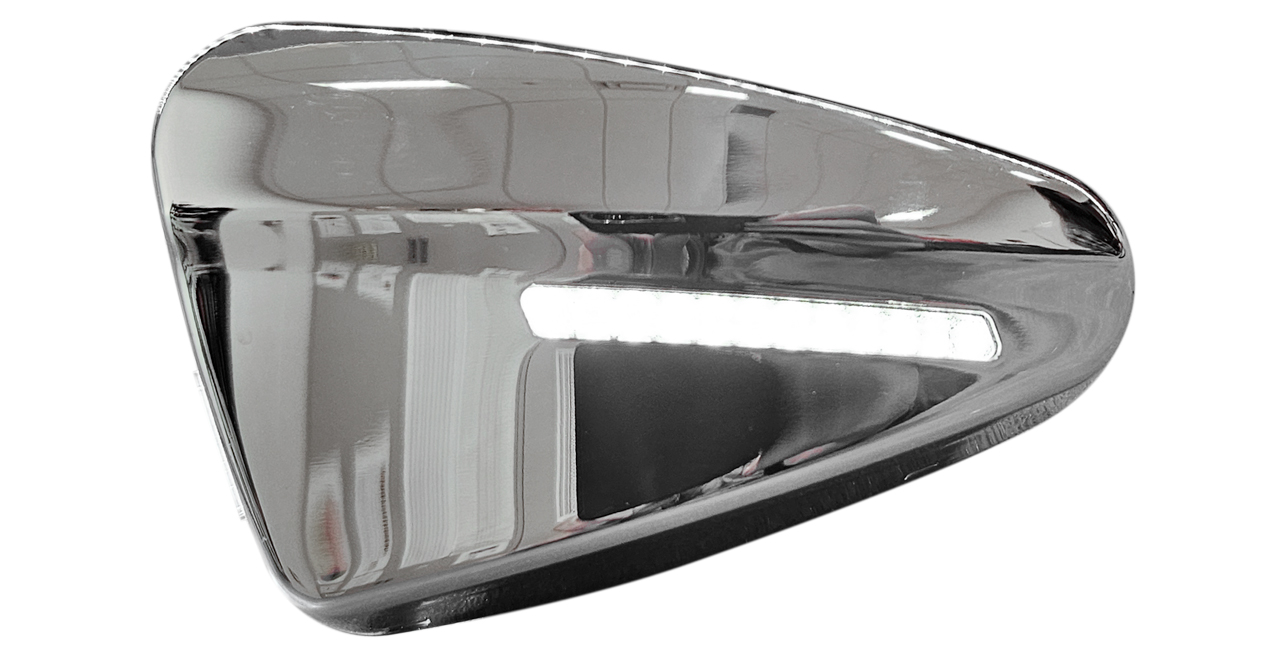

M512 Vertical Mount Docking/Courtesy Lights
M512 Vertical Mount Docking/Courtesy Lights
Technical Features
- C5 Certified - Highly resistant to corrosion from salt and other elements
- Stainless steel body for protection against salt & fresh water conditions
- Thermal overheat protection for longer lasting lifespan
- Surface mount design is a snap to install, no large holes to seal
- TecSeal Potting for guaranteed circuit board protection
- (12) LED Waveguide Courtesy light
- (3) LED High powered Docking light
- WIRE COLORS
Black – Ground, White – Docking, Yellow – Navigation
TecNiq's BRAND NEW M510 3-in1 Navigation/Docking/Courtesy lights are ready to hit the market. Designed to give boaters an all-in-one solution for safety and coastal boating regulations. The M510 is a surface mounted light that provides 1750 lumens at the docking light position, while also providing a 100,000 hour lifespan. The M510 also provides a navigation light that is visible up to 2NM, meeting all NMMA and Coast Guard specs.

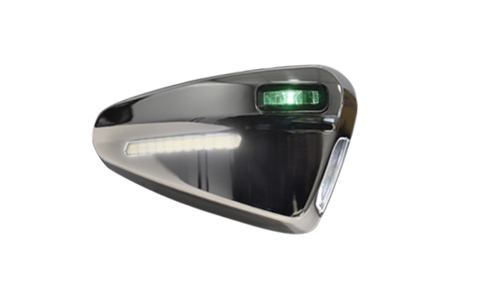

Related Products
| Dimensions |
|
| LEDs | 15 |
| Lumens | 1750 |
| Voltage | 9-14VDC |
| Current | 1.0A per light |
| Connectors | 11" Sheathed Pigtail |
| Mounting | Surface mount using (2) #8 screws |
| LED Colors | White |
| Wire Colors |
Black Wire - Ground White Wire - Docking LEDs |
| Ground | Black |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| M512-WSP0-1 |
Sidemount Docking Light White LED SS Cover Port Side 30" Wire
|
 |
 |
10 | Sheathed Pigtail (30") | |
| M512-WSPF-1 |
Sidemount Docking Light White LED SS Cover Port Side w/ xT04-2P
|
|
|
10 | xT04-2P (30") | |
| M512-WSS0-1 |
Sidemount Docking Light White LED SS Cover Starboard Side 30" Wire
|
 |
|
10 | Sheathed Pigtail (30") | |
| M512-WSSF-1 |
Sidemount Docking Light White LED SS Cover Starboard Side w/ xT04-2P
|
|
|
10 | xT04-2P (30") | |
| M515-W0PD-1 |
Docking Light 48 LED Port Side w Delphi Connector
|
 |
|
|||
| M515-W0SD-1 |
Docking Light 48 LED StBd w Delphi Connector
|
|
|
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
