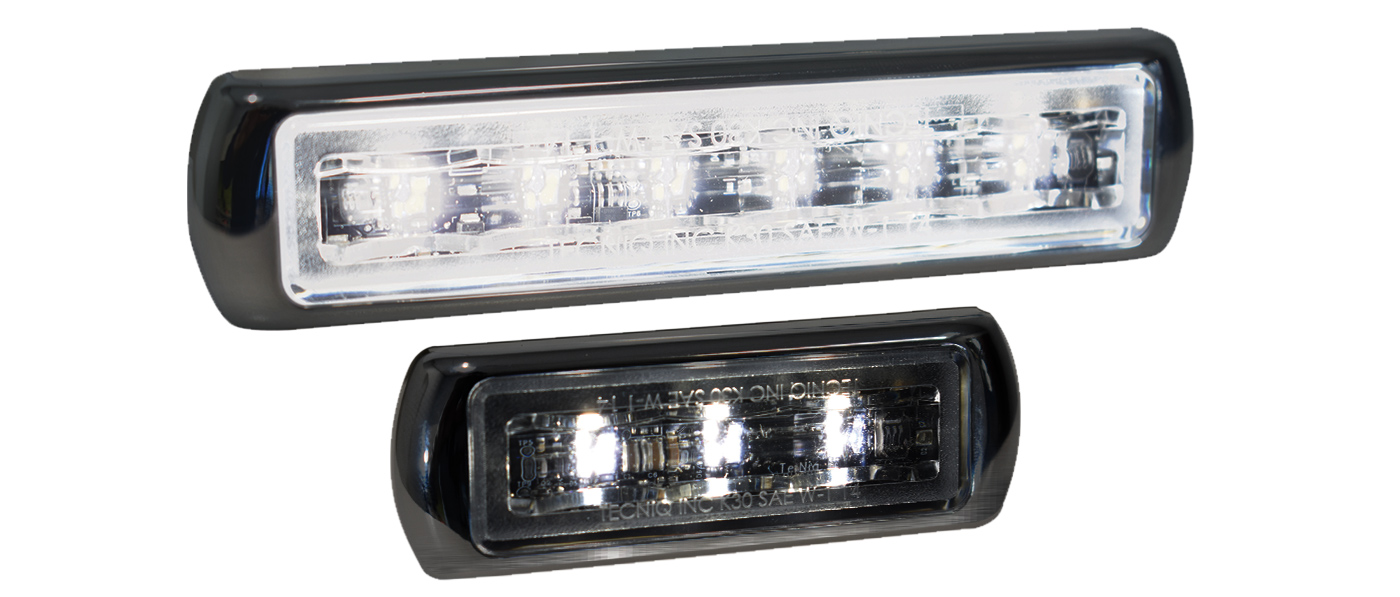

M30 Ancillary White Light
M30 Ancillary White Light
Technical Features
- Surface mount, sleek design providing a lifetime of safety & visibility
- TecSeal Potting for a Guaranteed sealed light
- (3) LED version
- (6) LED version
- Stainless Steel design prevents corrosion
- Provided with a 12" Pigtail connector
- WIRE COLORS
Black – Ground, White – Positive
TecNiq's M30 Pontoon Docking Lights are a great option, providing safety & visibility for boaters. The M30 is offered in a (3) or (6) LED model, with 450/900 lumens of output respectively. Each light comes with a 12" pigtail connector, is surface mounted, and runs on 9-14V DC. The M30s utilize TecSeal potting for guaranteed circuit board protection, and meet or exceed IP68 ratings for dust and water incursion.
Related Products
| Dimensions |
|
| LEDs | 3 or 6 |
| Lumens |
3 LED - 450 6 LED - 900 |
| Voltage | 9-30VDC |
| Current |
3 LED – 0.225A - 0.275A 6 LED – 0.450A - 0.550A |
| Connectors | 12" pigtail |
| Mounting | Surface mounted |
| LED Colors | White |

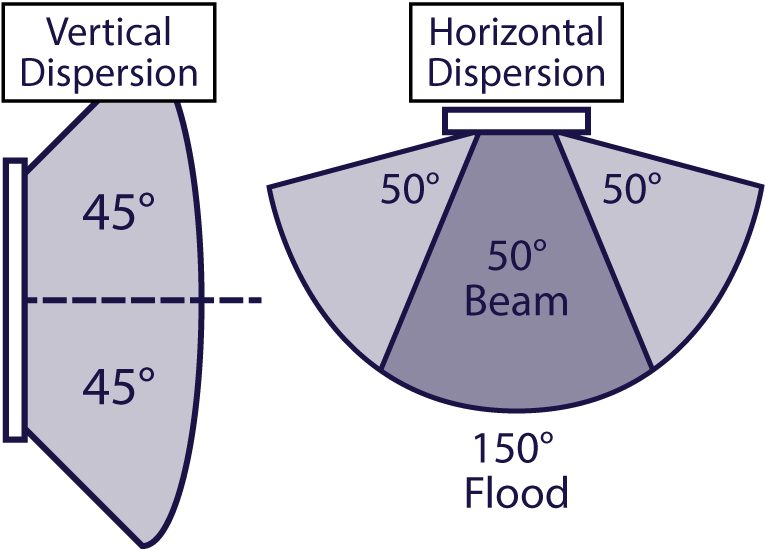

| Angle |
|
| Wire Colors |
Black Wire - Ground red Wire - 12/24VDC Power |
| Ground | Black |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| M30-WB030-1 |
White Marine Steady Burn 3 LED Clear Lens
|
 |
 |
12" Pigtail | ||
| M30-WB060-1 |
White Marine Steady Burn 6 LED Clear Lens
|
|
|
12" Pigtail | ||
| M30-WB12B-1 |
Marine Steady Burn Wht 12LED Clr Lens .180 Bullet
|
|
|
|||
| M30-WS030-1 |
White Docking Light 3 LED w SS Trim Ring
|
|
|
12" Pigtail | ||
| M30-WS03D-1 |
White Docking Light 3 LED w SS Trim Ring
|
|
|
12" Deutsch Connector | ||
| M30-WS060-1 |
White Docking LIght 6 LED w SS Trim Ring
|
|
|
12" Pigtail |
