M21 Side Mount Navigation Light
M21 Side Mount Navigation Light
Technical Features
- Includes 316 stainless steel cover
- Active overheat protection
- IP68 rated for Dust & Waterproof
- Impact resistant lens
- Reliable 100,000 hour life performance
- WIRE COLORS
Black – Ground, White – Positive
TecNiq's M21 Side Mounted Navigation Light has been designed to compliment today's style and craftsmanship of top boat builders across the industry. Constructed to resist impacts, overheating, and backed by TecNiq's lifetime guarantee - the M21 checks the boxes for sleek, stylish navigation light.

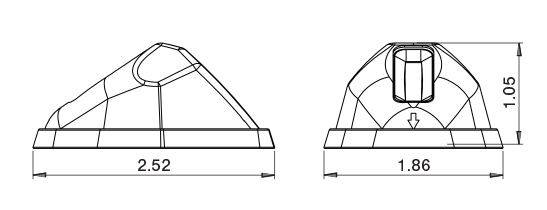

| Dimensions |
|
| Voltage | 9-14VDC |
| Current | 0.73A - 0.97A |
| Connectors | 12" Pigtail |
| Mounting | Surface mounted with two screws |
| LED Colors |
Red (port side) Green (starboard side) Red/Green |
| Wire Colors |
Black Wire - Ground White Wire - 12VDC Power |
| Ground | Black |
| Range | 2 Nautical Miles |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| M21-GSS0-1 |
Sidemount Navigation Light w SS Cover Starboard Side
|
 |
 |
10 | Pigtail (9") | |
| M21-GSSD-1 |
Sidemount Navigation Light w SS Cover Starboard Side w xT06-2S Connector
|
|
|
10 | 9" Deutsch (xT06-2S) | |
| M21-GSSG0-1 |
Sidemount Nav Light w SS Cover Starboard w Angled Gasket
|
|
|
10 | Pigtail (9") | |
| M21-RSP0-1 |
Sidemount Navigation Light w SS Cover Port Side
|
 |
|
10 | Pigtail (9") | |
| M21-RSPD-1 |
Sidemount Navigation Light w SS Cover Port Side w xT06-2S Connector
|
|
|
10 | 9" Deutsch (xT06-2S) | |
| M21-RSPF-1 |
Sidemount Navigation Light w SS Cover Port Side w xT04-2P
|
|
|
10 | xT04-2P | |
| M21-RSPG0-1 |
Sidemount Nav Light w SS Cover Port w Angled Gasket
|
|
|
10 | Pigtail (9") |
