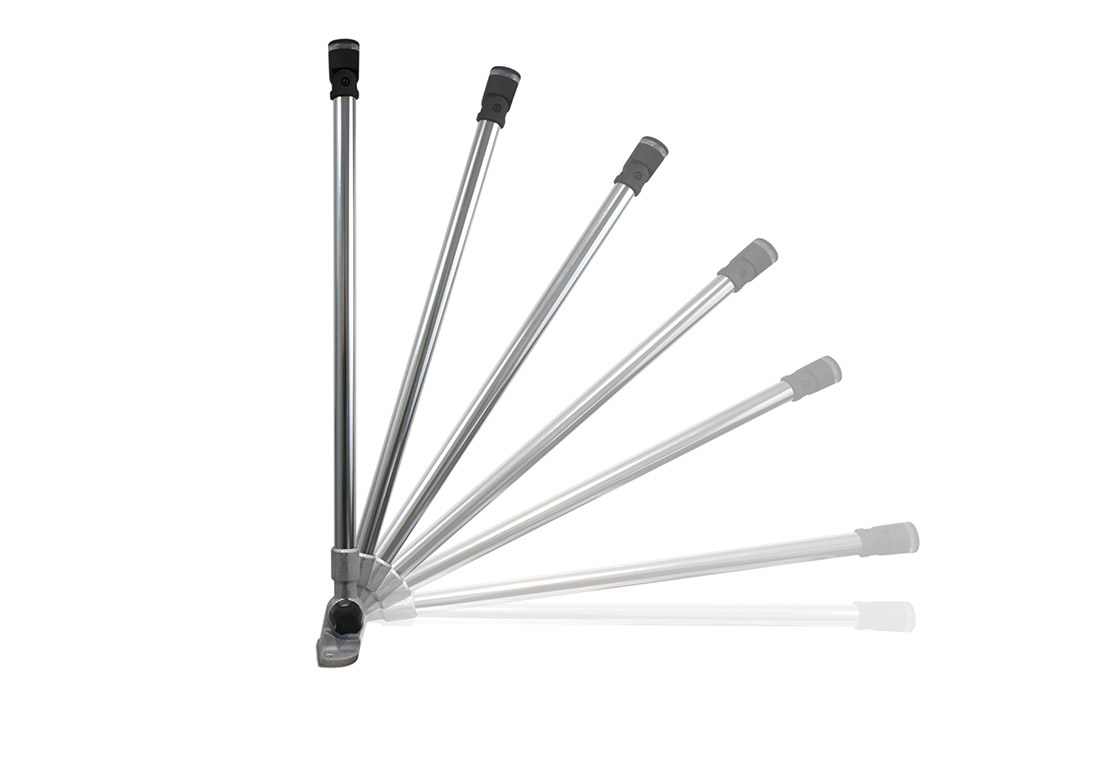

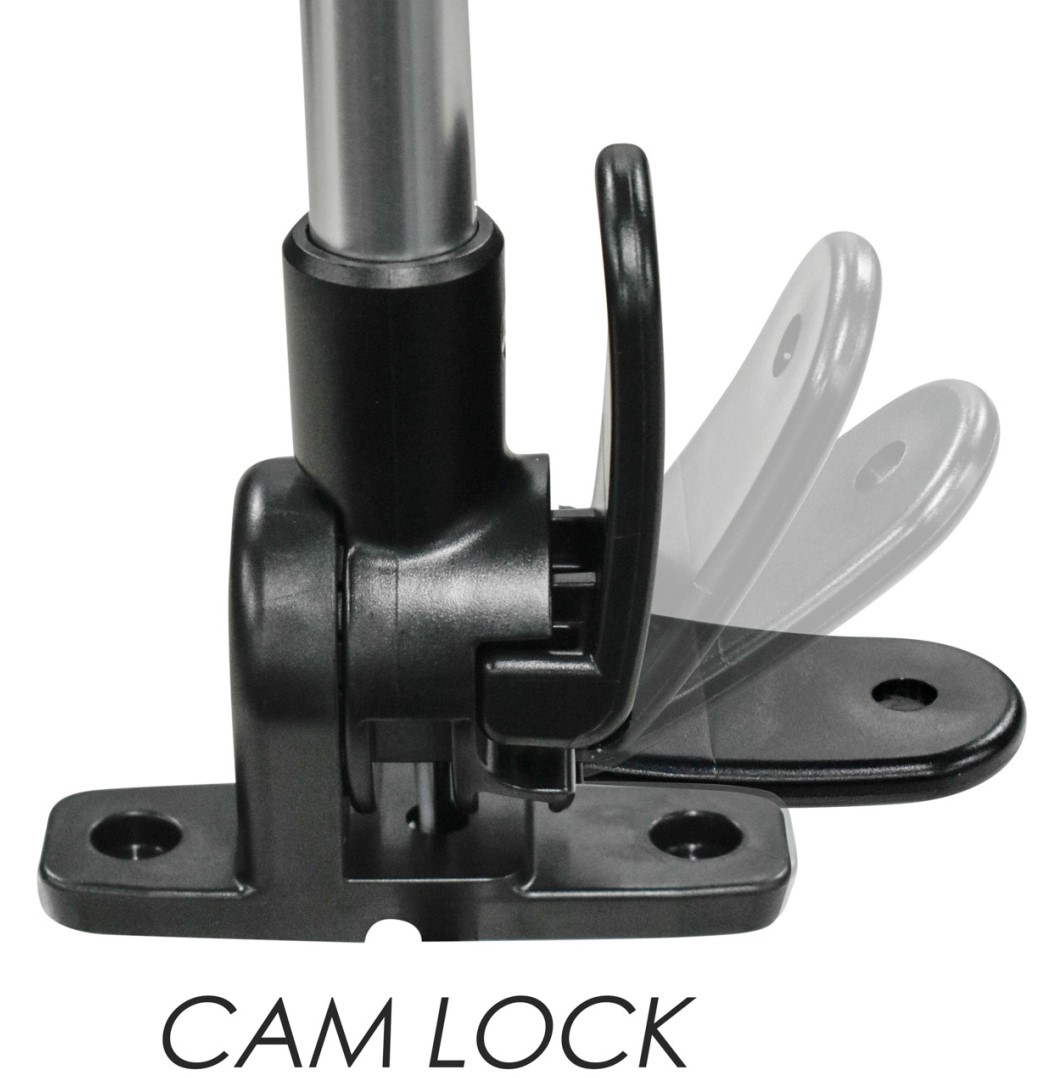

M13 All-Round Pole Mounted Navigation Light with Cam Lock
M13 All-Round Pole Mounted Navigation Light with Cam Lock
Technical Features
- Great looking light, designed to provide years of safe boating
- Available in 8 different pole sizes. More available upon request.
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Excellent UV Resistance
- Meets ABYC A-16 and USCG 2NM, and New C-5 standards
- Small package with bright 100 lumen output
- Designed for boats less than 50m
- WIRE COLORS
Black – Ground, White – Positive

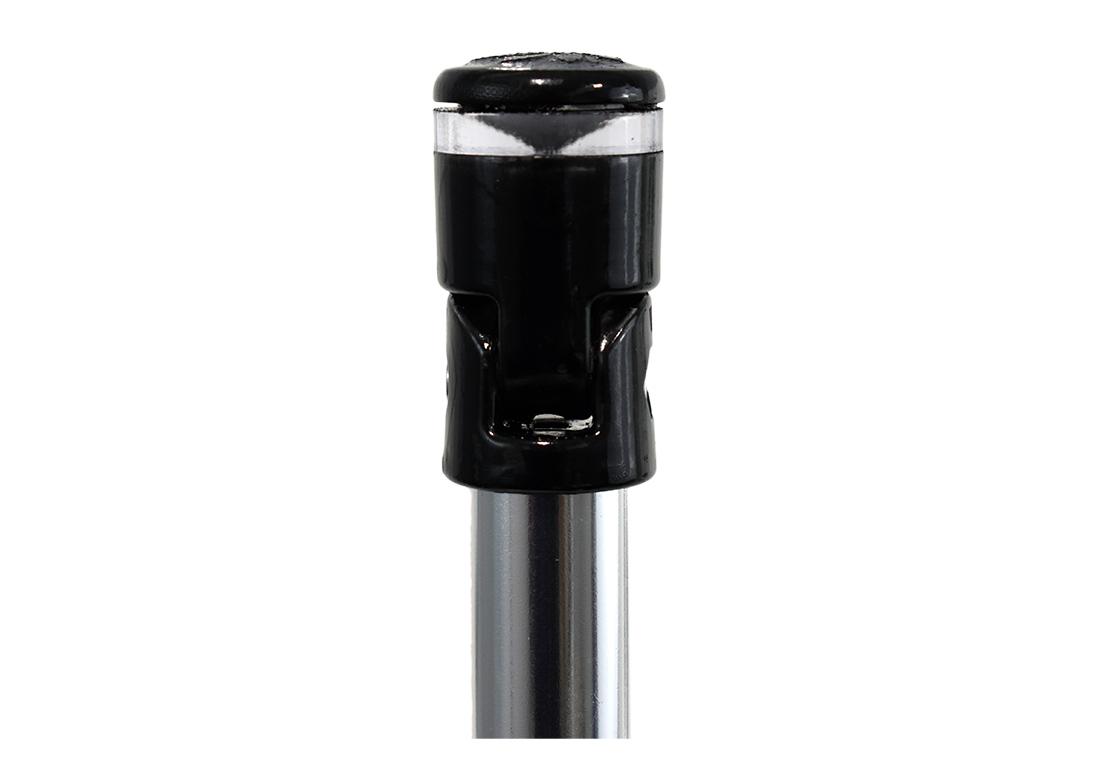

TecNiq’s All New M13 All-Round Pole Light has been designed to utilize a single LED in a compact light package to successfully meet every “all around light” specification. Each M13 is completely sealed and has an IP68 rating for dust and waterproof. The M13s are surface mount pole lights and provide bright lighting in an extremely small package. The M13 meets ABYC A-16, USCG 2NM standards, and C-5 standards, and is designated for boats less than 50m. Each M13 comes with TecNiq’s lifetime limited warranty.
| Dimensions |
Light is 2.5" x Dia 0.75" - Varying pole lengths
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current | 0.085A-0.115A |
| Connectors | 10" Pigtail |
| Mounting | Pole mounted with 2 flat-head screws (1/4" diameter) |
| LED Colors | White |
| Angle |
No elements found. |
| Wire Colors |
Black Wire - Ground White Wire - 12VDC Power |
| Ground | Black |
| Range | 2 Nautical Miles |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| M13-0B20-1 |
Round Rail Mount Adapter 1IN
|
 |
||||
| M13-WH080-1 |

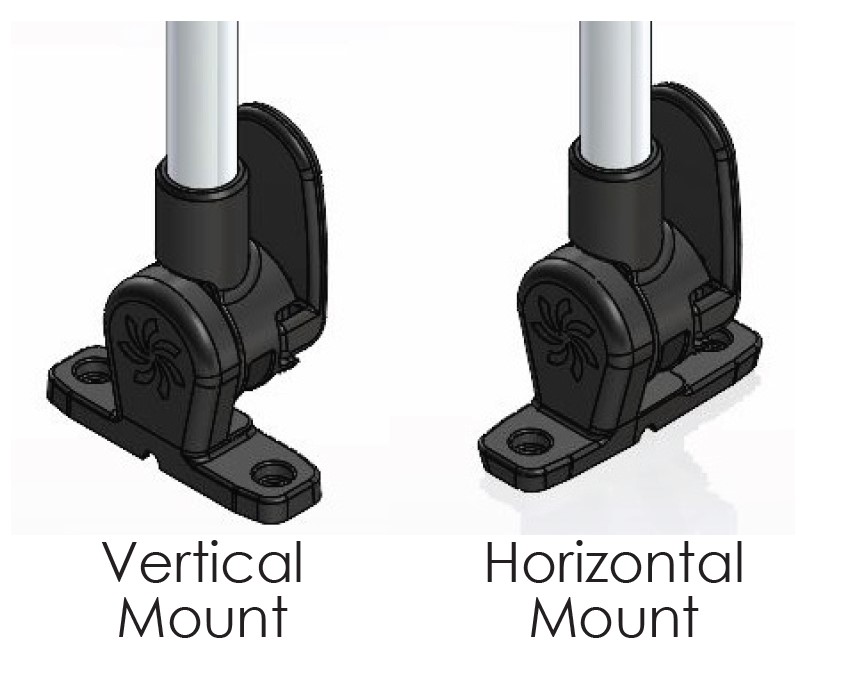

All Round Pole Lt Wht 1LED Horizontal Cam Lock 8IN
|
 |
 |
Pigtail (32") | ||
| M13-WH100-1 |
All Round Pole Lt Horizontal Cam Lock Base 10in
|
|
|
|||
| M13-WH120-1 |
All Round Pole Light Horizontal Cam Lock Base 12 in
|
|
|
Pigtail (32") | ||
| M13-WH150-1 |
All Round Pole Horizontal Cam Lock Base 15.5IN
|
|
|
Pigtail (32") | ||
| M13-WH15D-1 |
All Round Pole Lt Horizontal Cam Lock Base 15.5IN W/xT04-2P
|
|
|
|||
| M13-WH200-1 |
All Round Pole Light Horizontal Cam Lock Base 20 in
|
|
|
Pigtail (32") | ||
| M13-WH20E-1 |
All Round Pole Light Horizontal Cam Lock Base 20IN Sheath
|
|
|
|||
| M13-WH240-1 |
All Round Pole Light Horizontal Cam Lock Base 24 in
|
|
|
Pigtail (32") | ||
| M13-WH360 |
2NM All Around Perpendicular Cam Lock 36 Inch Pole
|
|
|
Pigtail (32") | ||
| M13-WH360-1 |
All Round Pole Light Horizontal Cam Lock Base 36in
|
|
|
|||
| M13-WHB060-1 |
**All Rnd Wht 1LED 6IN Blk Pole Lt Horz Cam Lock 32IN PgTl
|
|
|
|||
| M13-WHB080-1 |
**All Rnd Wht 1LED 8IN Blk Pole Lt Horz Cam Lock 32IN PgTl
|
|
|
|||
| M13-WHB120-1 |
**All Rnd Wht 1LED 12IN Blk Pole Lt Horz Cam Lock 32IN PgTl
|
|
|
|||
| M13-WHB15D-1 |
**All Rnd Wht 1LED 15.5IN Blk Pole Lt Horz Cam Lock xTP04-2P Conn
|
|
|
|||
| M13-WHB200-1 |
**All Rnd Wht 1LED 20IN Blk Pole Lt Horz Cam Lock 32IN PgTl
|
|
|
|||
| M13-WHB240-1 |
**All Rnd Wht 1LED 24IN Blk Pole Lt Horz Cam Lock 44IN PgTl
|
|
|
|||
| M13-WHB360-1 |
**All Rnd Wht 1LED 36IN Blk Pole Lt Horz Cam Lock 56IN PgTl
|
|
|
|||
| M13-WHR08F-1 |
All Round Pole Light Horizontal Cam Lock Base 12IN 90 Deg
|
|
|
|||
| M13-WHR12F-1 |
All Round Pole Light Horizontal Cam Lock Base 12IN 90 Deg
|
|
|
|||
| M13-WHR22GF-1 |
All Round Pole Lt Horizontal Cam Lock Base 22IN 90 Deg w Gasket
|
|
|
|||
| M13-WV060-1 |
White 1LED 6IN All Round Pole Vertical Cam Lock 32IN Lead
|
|
|
Pigtail (32") | ||
| M13-WV080-1 |
White 1LED 8IN All Round Pole Vertical Cam Lock 32IN Lead
|
|
|
Pigtail (32") | ||
| M13-WV120-1 |
All Round Pole Light Vertical Cam Lock Base 12 in
|
|
|
Pigtail (32") | ||
| M13-WV150-1 |
All Round Pole Vertical Cam Lock Base 15.5IN
|
|
|
|||
| M13-WV200-1 |
All Round Pole Light Vertical Cam Lock Base 20 in
|
|
|
Pigtail (32") | ||
| M13-WV240-1 |
All Round Pole Light Vertical Cam Lock Base 24 in
|
|
|
Pigtail (32") | ||
| M13-WV300-1 |
All Round Pole Light Vertical Cam Lock Base 30in
|
|
|
|||
| M13-WV320-1 |
2NM All Around Parallel Cam Lock 32 Inch Pole.
|
|
|
Pigtail (32") | ||
| M13-WVB060-1 |
All Round Wht 1LED 6IN Blk Pole Vertical Cam Lock 32IN Lead
|
|
|
|||
| M13-WVB080-1 |
All Rnd Wht 1LED 8IN Blk Pole Lt Vert Cam Lock 32IN PgTl
|
|
|
|||
| M13-WVB120-1 |
All Rnd Wht 1LED 12IN Blk Pole Lt Vert Cam Lock 32IN PgTl
|
|
|
|||
| M13-WVB200-1 |
All Rnd Wht 1LED 20IN Blk Pole Lt Vert Cam Lock 32IN PgTl
|
|
|
|||
| M13-WVB240-1 |
All Rnd Wht 1LED 24IN Blk Pole Lt Vert Cam Lock 32IN PgTl
|
|
|
|||
| M13-WVB300-1 |
All Rnd Wht 1LED 30IN Blk Pole Lt Vert Cam Lock 32IN PgTl
|
|
|
|||
| M13-WVB360-1 |
All Rnd Wht 1LED 36IN Blk Pole Lt Vert Cam Lock 32IN PgTl
|
|
|
