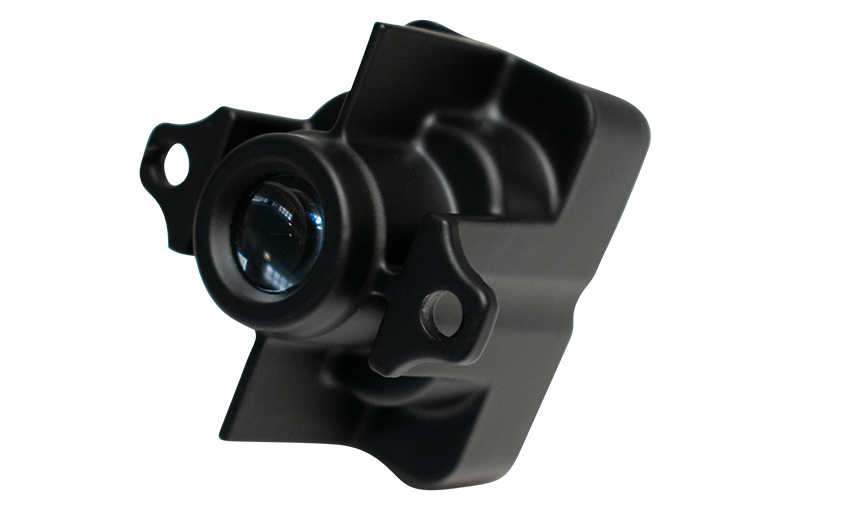

M03 Customized Projector Light
M03 Customized Projector Light
Technical Features
- Available with either a white LED or color changing RGB
- Projects logos or images preconstructed into light
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection

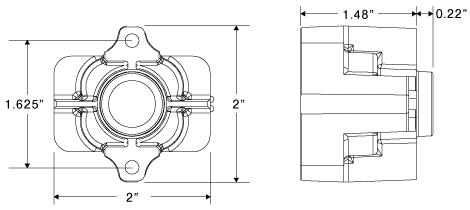

| Dimensions |
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current | 0.43A-0.49A |
| Connectors | 9" Sheathed Pigtail |
| LED Colors | White/RGB |
| Wire Colors |
Black Wire - Ground
White Wire - 12VDC Power
Black Wire - 12VDC Power
Red Wire - Ground (Red) Green Wire - Ground (Green) Blue Wire - Ground (Blue) White Model
Black Wire - GroundWhite Wire - 12VDC Power RGB Model
Black Wire - 12VDC PowerRed Wire - Ground (Red) Green Wire - Ground (Green) Blue Wire - Ground (Blue) |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| M03-300A-1 |
M03 RGB Projector Lamp Sample
|
![]() |
![]() |
- |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
