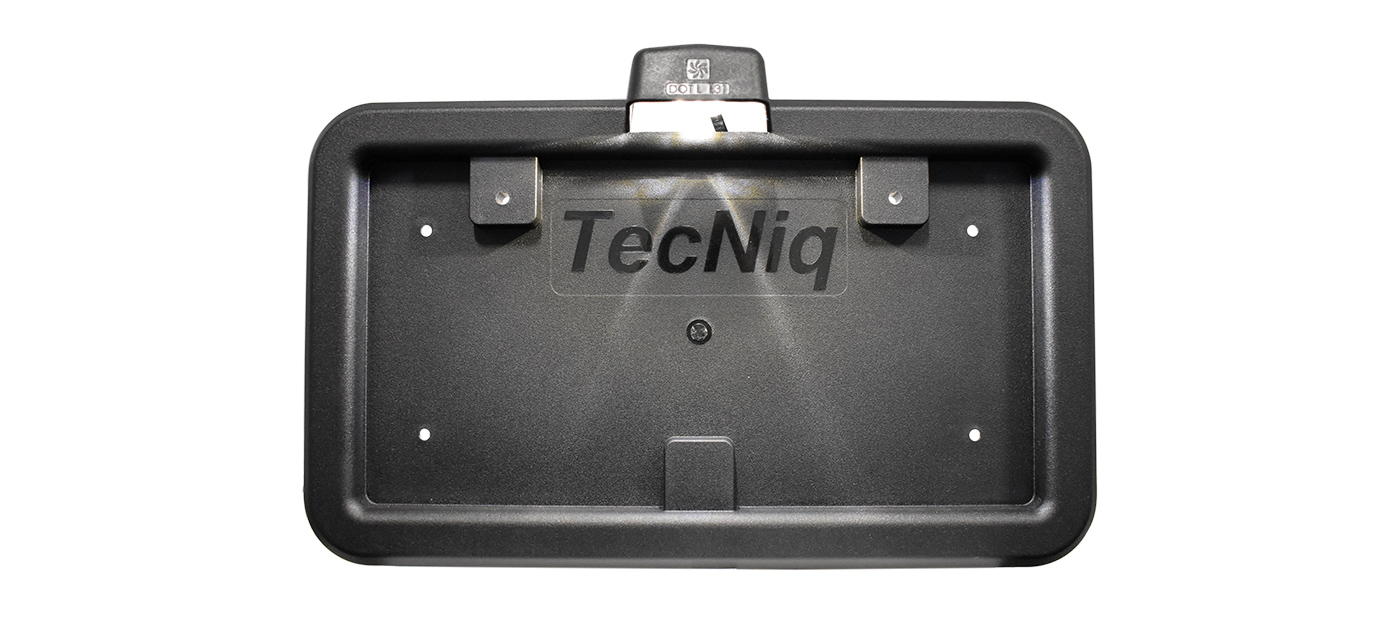

L31 License Plate Full Back with Light
L31 License Plate Full Back with Light
Technical Features

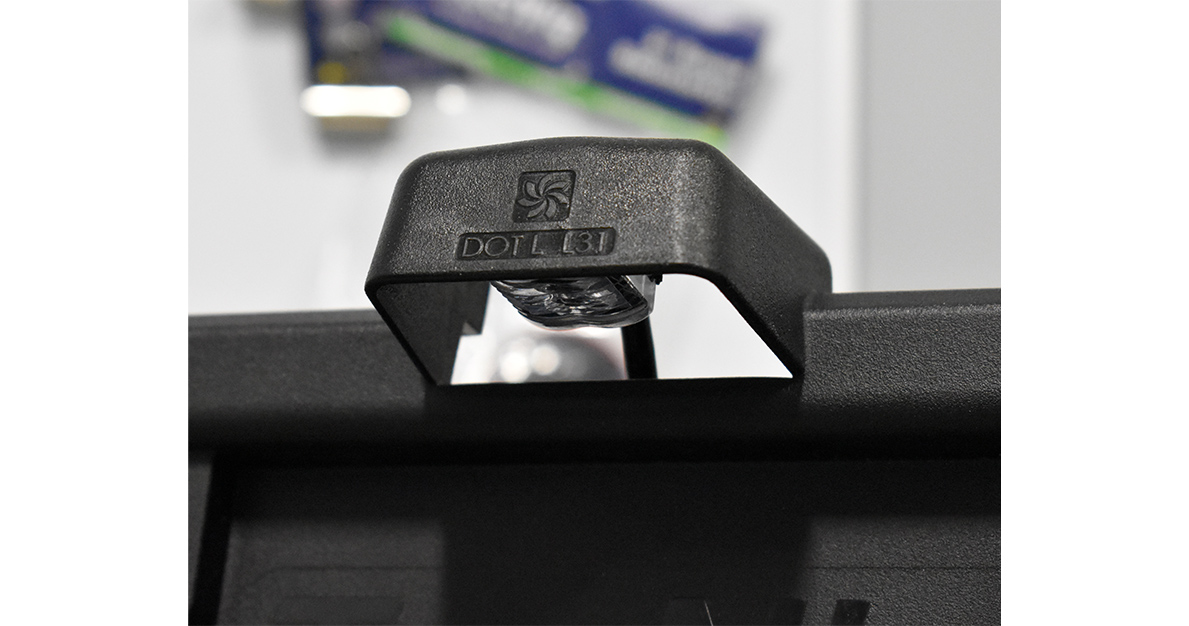

- Black polypropylene license plate frame with (1) LED
- Comes with (2) 1/4" screws to attach the license plate
- Provides a single source for license plate bracket and light
- WIRE COLORS
Bidirectional positive and ground
Consolidate costs, and reduce vendor complications with the new L31 License Plate Bracket and Light Combo.
| Dimensions |
14.25" x 8.99" x 2.41"
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current | 0.06A-0.11A |
| Wire Colors |
White Wire - Ground Black Wire - 12VDC Power |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| L31-WB00-1 |
License Plate Frame with Light
|
 |
 |
10 | Pigtail (9") | |
| L31-WB0D-1 |
License Plate Frame with Light W/ DTM04-2P Connector
|
|
|
10 | ||
| L31-WB0F-1 |
License Plate Frame with Light with Deutsch Connector
|
|
|
10 | ATM06-2S | |
| L31-WB10-1 |
License Plate Frame with Light, 15" Wire
|
|
|
10 | Pigtail (15") |
