L10 DOT rated LED License Lamp
L10 DOT rated LED License Lamp
Technical Features
- SAE DOT rated
- IP68 Rated - Dust and water proof
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Durable impact resistant lens
- Life performance over 50,000 hours
- Designed for Surface Mounted license plates, and easily mounts with two screws.
- Available in our black or chrome finish
- WIRE COLORS
Bidirectional positive and ground
Incorporating a new ultra-efficient lens design, our license lamps provide bright, even illumination that exceeds government requirements. We have incorporated the best materials including a tough automotive polycarbonate lens, urethane potting sealant and top-quality automotive grade LEDs. Together they create a durable and bright lighting solution. The Model L10 projects about 2 inches from the mounting plane and is designed to meet DOT requirements for applications where the upper edge of the license plate is in the same plane as the lamp base. Available in either black or chrome finish.

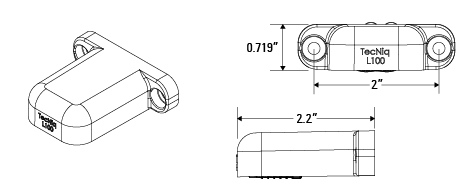

| Dimensions |
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current | 0.06A-0.11A |
| Connectors |
9" pigtail 9" wire w/ 0.180" bullet |
| Mounting | Surface mount using just (2) screws |
| Wire Colors |
White Wire - Interchangeable Black Wire - Interchangeable |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| L10-0G00-1 |
License Lamp Gasket
|
10 | - | |||
| L10-WB00-1 |
Black Base License Lamp Vertical Plane Mount
|
 |
 |
10 | Sheathed Pigtail | |
| L10-WB0F-1 |
Black Base License Lamp Vertical Plane Mount xTM06-2S
|
|
|
|||
| L10-WB0G-1 |
Black Base License Lamp Vertical Plane Mount with9" black wire, 2.5" white wire & #10 ground ring
|
|
|
10 | Pigtail w/ Ground Ring | |
| L10-WB9B-1 |
Black Base License Lamp Vertical Plane Mount w/.180 Bullet
|
|
|
10 | 0.180" Bullets | |
| L10-WB9M-1 |
Black Base License Lamp Vertical Plane Mount W/.156 Bullet
|
|
|
10 | 0.156" Bullets | |
| L10-WC00-1 |
Chrome Base License Lamp Vertical Plane Mount
|
|
|
10 | Sheathed Pigtail | |
| L10-WC0F-1 |
Chrome Base License Lamp Vertical Plane Mount w xT06-2S Connector
|
|
|
10 | T06-2S Connector | |
| L10-WC10-1 |
DOT License Lt SM Vertical Plane Wht LED Chrome Back 13IN PgTl
|
|
|
10 | ||
| L10-WC9B-1 |
Chrome Base License Lamp Vertical Plane Mount w/.180 Bullet
|
|
|
10 | Sheathed Pigtail | |
| L11-WB00-1 |
Black Base License Lamp Vertical Plane Mount
|
|
|
10 | Sheathed Pigtail | |
| L11-WB0F-1 |
Black Base License Lamp Vertical Plane Mount & 2 position Deutsch Connector
|
|
|
10 | ATM06-2S | |
| L11-WB0G-1 |
Black Base License Lamp Vertical Plane Mount W/ 9" wires & 1/4" Ground Ring
|
|
|
10 | Pigtail w/ Ground Ring | |
| L11-WB1B-1 |
Black Base License Lamp Vertical Plane Mount 13" Wires w 180 Bullets
|
|
|
10 | 0.180" Bullets | |
| L11-WB9B-1 |
Black Base License Lamp Vertical Plane Mount w/.180" Bullets
|
|
|
10 | 0.180" Bullets | |
| L11-WB9N-1 |
Black Base License Lamp Vertical Plane Mount w/.156" Barrels
|
|
|
10 | 0.156" Barrels | |
| L11-WC00-1 |
Chrome Base License Lamp Vertical Plane Mount
|
|
|
10 | Sheathed Pigtail | |
| L11-WC10-1 |
Chrome Base License Lamp Vertical Plane Mount 13IN PgTl
|
|
|
|||
| L11-WC2B-1 |
Chrome Base License Lamp Vertical Plane Mount 24in PgTl 180 Bullets
|
|
|
|||
| L11-WC9B-1 |
Chrome Base License Lamp V-Plane Mount w/.180" Bullets
|
|
|
10 | 0.180" Bullets | |
| L11-WC9M-1 |
Chrome Base License Lamp Vertical Plane Mount W/.156 Bullets
|
|
|
10 | 0.156" Bullets | |
| L11-WC9N-1 |
Chrome Base License Lamp V-Plane Mount w/.156" Barrels
|
|
|
10 | 0.156" Barrels | |
| L12-WB00-1 |
Black Base License Lamp Vertical Plane Mount
|
|
|
10 | Sheathed Pigtail | |
| L12-WB5B-1 |
Black Base License Lamp Vertical Plane Mount w/.180" Bullets
|
|
|
10 | 0.180" Bullets | |
| L12-WB8B-1 |
Black Base License Lamp Vertical Plane Mount 18" Lead W/.180 Bullet
|
|
|
10 | 0.180" Bullets | |
| L12-WC00-1 |
Chrome Base License Lamp Vertical Plane Mount
|
|
|
10 | Sheathed Pigtail | |
| L14-WB00-1 |
DOT License Lt Wht Blk Housing SM 9IN Sthd PigTl
|
|
|
10 | Sheathed Pigtail | |
| L14-WG00-1 |
DOT License Lt Wht Gray Housing SM 9IN Sthd PigTl
|
|
|
10 | Sheathed Pigtail | |
| L17-WS00-1 |
4IN x 2IN License Plate Light
|
|
|
|||
| L31-WB00-1 |
License Plate Frame with Light
|
|
|
10 | Pigtail (9") | |
| L31-WB0D-1 |
License Plate Frame with Light W/ DTM04-2P Connector
|
|
|
10 | ||
| L31-WB0F-1 |
License Plate Frame with Light with Deutsch Connector
|
|
|
10 | ATM06-2S | |
| L31-WB10-1 |
License Plate Frame with Light, 15" Wire
|
|
|
10 | Pigtail (15") | |
| L34-WB9B-1 |
License Lamp Black Bracket w/ .180 Bullets
|
|
|
10 | Sheathed Pigtail | |
| L34-WC9B-1 |
License Lamp Large Grommet w/ .180 Bullets
|
|
|
10 | 0.180" Bullets | |
| L34-WC9LD-1 |
License Lamp Large Grommet Low Current w Delphi Weatherpack
|
|
|
10 | ||
| L34-WG90-1 |
License Lamp Standard Grommet 12in Pigtails
|
|
|
10 | Pigtail (12") | |
| L34-WG9A-1 |
License Lamp Standard Grommet w/ Amp Connector
|
|
|
10 | Amp | |
| L34-WG9B-1 |
License Lamp Standard Grommet w/ .180 Bullets
|
|
|
10 | 0.180" Bullets | |
| L90-0B00-1 |
License plate Full Back No Lamp Black
|
10 | - | |||
| L90-0B00-K |
License plate frame no light with screw kit
|
10 | - | |||
| L90-0G00-1 |
License plate frame grey no light
|
10 | - | |||
| L90-0G00-K |
License plate frame grey no light with screw kit
|
10 | - | |||
| L95-0B00-1 |
License Plate Bracket Black Tecniq
|
10 | - | |||
| L95-1B00-1 |
Elevated License Plate Bracket Black
|
10 | - |
