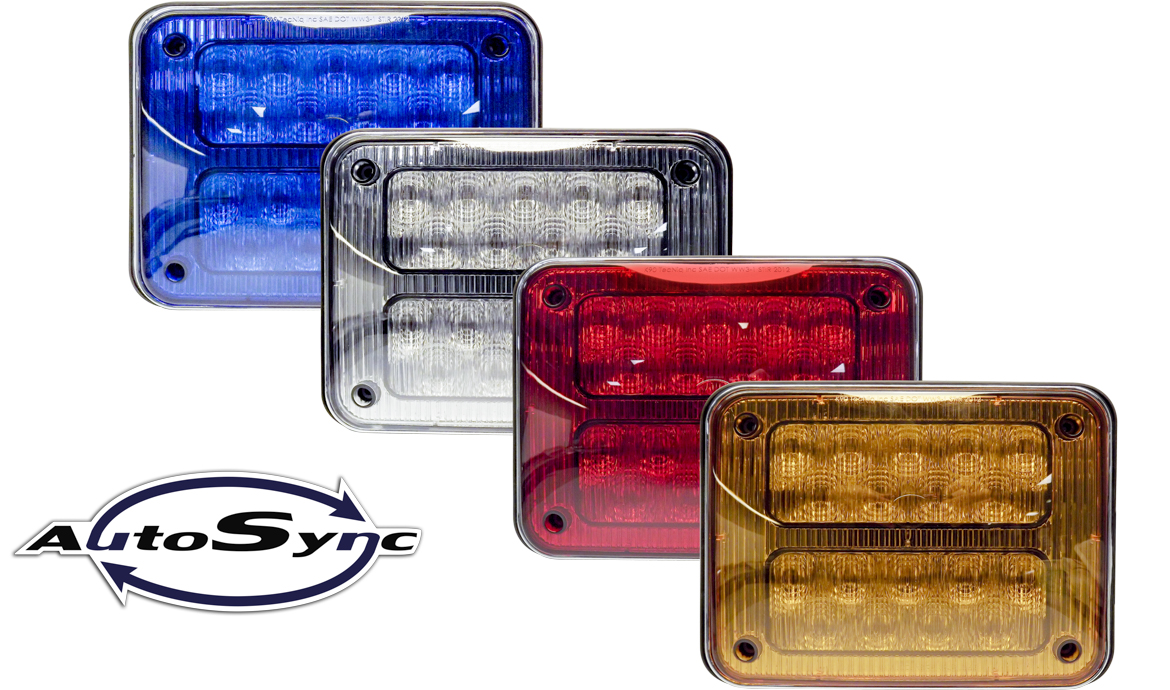

K90 9"x 7" LED Emergency Flasher
K90 9"x 7" LED Emergency Flasher
Technical Features
- Powerful 9"x 7" warning lamp fits standard mounting holes
- Lights are designed with Night Mode, by simply connecting yellow wire to 12V signal
- Patent-pending AutoSync technology means all TecNiq flashers are synchronized without requiring a separate control box
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Durable impact resistant lens
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- IP68 Rated for long-term dust and water-intrusion proof
- Meets all NFPA 1900 and Triple K specifications, including upcoming regulations
- DOT stop/tail/turn/reverse lamp compliance mode available on all lamps
- WIRE COLORS
Black – Ground, Red – Positive, White – Pattern Selection, Yellow – Night Mode, Blue – Wig-Wag (opposite pattern phase)
Finally, simplicity in a warning flasher! TecNiq's AutoSync eliminates the need for a costly central vehicle flash controller or any interconnections between lamps. Our patent-pending technology enables TecNiq emergency flashers to hold synchronized flash patterns for over 8 hours of continuous use. Standard mounting patterns and a variety of pre-programmed flash patterns make the K series emergency flashers perfect for new construction or retrofit. For alternating flash patterns, just connect one light's wig-wag wire to the 12v source and that lamp will flash out of phase with the others. By pairing our ultra-efficient lens technology with world leading LEDs, the K series provides high output emergency light over an industry-leading range of angles. AutoSync equipped lights also feature a built in powerful microprocessor controller, low electrical noise, submersible electronics, excellent price point, lifetime warranty, and assembled in the USA.
| Dimensions |
|
| LEDs | 18 |
| Voltage | 9-14VDC |
| Current | ≈2.5A (average) – 5A (peak) |
| Connectors | 9" pigtail |
| Mounting | Surface mount using just (4) screws (included) |
| LED Colors | Red • Amber • Green • Blue • White • Red/White • Amber/White • Red/Blue • Blue/White • Red/Amber |
| Wire Colors |
AutoSync Flasher Red Wire - 12V DC Power Black Wire - Ground Yellow Wire - Low Intensity (Night Mode) White Wire - Flash Pattern Change Blue Wire white stripe - Wig-Wag wire (AutoSync) Connect to power for opposite phase Stop/Tail/Turn & Steady Burn Flasher Red Wire - 12V DC Power Black Wire - Ground Yellow Wire - Low Intensity (STT etc.) |
| Flash Patterns |
Pattern of
Off
Animation performance may vary depending on browser or PC configuration
(K90 Pictured) |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| K90-0100-1 |
K90 Anchor/Screw Kit
|
1 | - | |||
| K90-1B00-1 |
K90 Black Trim and Gasket Kit
|
1 | - | |||
| K90-1C00-1 |
K90 Chrome Trim and Gasket Kit
|
1 | - | |||
| K90-AA00-1 |
K90 AutoSync Amber Amber Flasher Lamp Amber Lens
|
 |
 |
1 | Pigtail | |
| K90-AAS0-1 |
K90 Steady Amber Amber Flasher Lamp Amber Lens
|
|
|
1 | Pigtail | |
| K90-AAT0-1 |
K90 Steady Amber Turn Amber Lens
|
|
|
1 | Pigtail | |
| K90-AC00-1 |
K90 AutoSync Amber Amber Flasher Lamp Clear Lens
|
|
 |
1 | Pigtail | |
| K90-ACS0-1 |
K90 Steady Amber Amber Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-ACT0-1 |
K90 Steady Amber Turn Clear Lens
|
|
|
1 | Pigtail | |
| K90-AS00-1 |
K90 AutoSync Amber Flasher Lamp With Scene Lens
|
 |
|
1 | Pigtail | |
| K90-ASS0-1 |
K90 Steady Amber Scene Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-AW00-1 |
K90 AutoSync Amber White Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-BB00-1 |
K90 AutoSync Blue Blue Flasher Lamp Blue Lens
|
 |
 |
1 | Pigtail | |
| K90-BBS0-1 |
K90 Steady Blue Blue Flasher Lamp Blue Lens
|
|
|
1 | Pigtail | |
| K90-BBU0-1 |
K90 Blue Backup Lamp
|
|
|
1 | Pigtail | |
| K90-BC00-1 |
K90 AutoSync Blue Blue Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-BCS0-1 |
K90 Steady Blue Blue Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-BS00-1 |
K90 AutoSync Blue Scene Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K90-BSS0-1 |
Steady Blue Scene lamp Clear Lens
|
|
|
|||
| K90-GC00-1 |
K90 AutoSync Green Green Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K90-GCS0-1 |
K90 Steady Green Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-GG00-1 |
K90 AutoSync Green Flasher Lamp Green Lens
This part number is only available in quantities over 1000.
|
|
 |
1 | Pigtail | |
| K90-GGS0-1 |
K90 Steady Green Flasher Lamp Green Lens
This part number is only available in quantities over 1000.
|
|
|
1 | Pigtail | |
| K90-R0SC0-1 |
K90 Red AutoSync Top STT Bottom Clear Lens
|
 |
|
1 | Pigtail | |
| K90-RA00-1 |
K90 AutoSync Red Amber Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K90-RAS0-1 |
K90 Steady Red Amber Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-RB00-1 |
K90 AutoSync Red Blue Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K90-RBS0-1 |
K90 Steady Red Blue Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-RC00-1 |
K90 AutoSync Red Red Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-RCS0-1 |
K90 Steady Red Red Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-RR00-1 |
K90 AutoSync Red Red Flasher Lamp Red Lens
|
|
 |
1 | Pigtail | |
| K90-RRS0-1 |
K90 Steady Red Red Flasher Lamp Red Lens
|
|
|
1 | Pigtail | |
| K90-RS00-1 |
K90 AutoSync Red Scene Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K90-RSS0-1 |
K90 Steady Red Scene Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-RW00-1 |
K90 AutoSync Red White Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-RWS0-1 |
K90 Steady Red White Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-STA0-1 |
K90 Steady Red STT Top Amber Autosync Bottom Clear Lens
|
|
|
1 | Pigtail | |
| K90-STC0-1 |
K90 Steady Red STT Clear Lens
|
|
|
1 | Pigtail | |
| K90-STR0-1 |
K90 Steady Red STT Red Lens
|
|
|
1 | Pigtail | |
| K90-STS0-1 |
K90 Steady Red STT Bottom Scene Clear Lens
|
|
|
1 | Pigtail | |
| K90-SW00-1 |
K90 High Output Scene Light
|
 |
|
1 | Pigtail | |
| K90-SW00-K |
K90 High Output Scene Light W/Chrome Trim Ring
|
|
|
1 | Pigtail | |
| K90-WA00-1 |
K90 AutoSync White Amber Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K90-WB00-1 |
K90 AutoSync White Blue Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-WBS0-1 |
K90 Steady White Blue Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-WBU0-1 |
K90 White Backup Lamp
|
|
|
1 | Pigtail | |
| K90-WC00-1 |
K90 AutoSync White White Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-WCS0-1 |
K90 Steady White White Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K90-WR00-1 |
K90 AutoSync White Red Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail |
