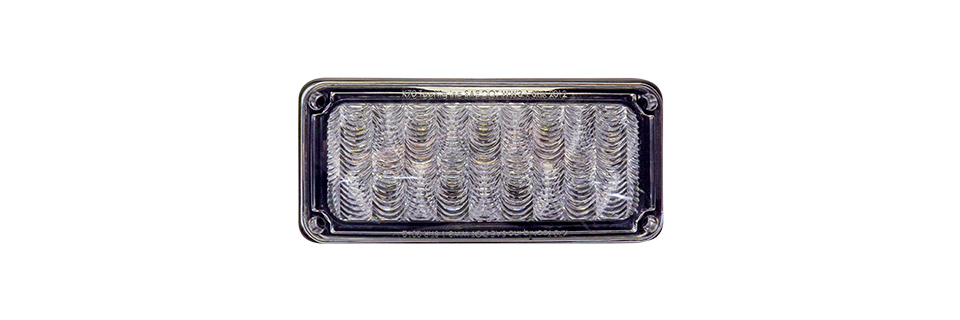

K70 Scene 7"x 3" LED Scene Light
K70 Scene 7"x 3" LED Scene Light
Technical Features
- Powerful 7"x 3" warning lamp fits standard mounting holes
- Lights are designed with Night Mode, by simply connecting yellow wire to 12V signal
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Durable impact resistant lens
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- IP68 Rated for long-term dust and water-intrusion proof
- Meets all NFPA 1900 and Triple K specifications, including upcoming regulations
- DOT stop/tail/turn/reverse lamp compliance mode available on all lamps
- WIRE COLORS
Black – Ground, Red – High Intensity, Yellow – Low Intensity
Finally, simplicity in a warning flasher! TecNiq's AutoSync eliminates the need for a costly central vehicle flash controller or any interconnections between lamps. Our patent-pending technology enables TecNiq emergency flashers to hold synchronized flash patterns for over 8 hours of continuous use. Standard mounting patterns and a variety of pre-programmed flash patterns make the K series emergency flashers perfect for new construction or retrofit. For alternating flash patterns, just connect one light's wig-wag wire to the 12v source and that lamp will flash out of phase with the others. By pairing our ultra-efficient lens technology with world leading LEDs, the K series provides high output emergency light over an industry-leading range of angles. AutoSync equipped lights also feature a built in powerful microprocessor controller, low electrical noise, submersible electronics, excellent price point, lifetime warranty, and assembled in the USA.

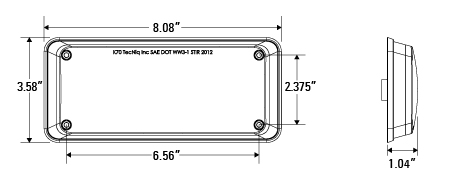

| Dimensions |
|
| LEDs | 9 |
| Lumens | 2500 Source Lumens |
| Voltage | 9-14VDC |
| Current | ≈1.20A @ 12.8VDC |
| Connectors | 9" pigtail |
| Mounting | Surface mount using just (4) screws (included) |
| Wire Colors |
Red Wire - 12V DC Power Black Wire - Ground Yellow Wire - Low Intensity (Night Mode) |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| K70-0100-1 |
K60 & K70 Anchor/Screw Kit
|
1 | - | |||
| K70-1B00-1 |
K70 Black Trim and Gasket Kit
|
1 | - | |||
| K70-1C00-1 |
K70 Chrome Trim and Gasket Kit
|
1 | - | |||
| K70-SW00-1 |
K70 High Output Scene Light
|
 |
 |
1 | Pigtail |
