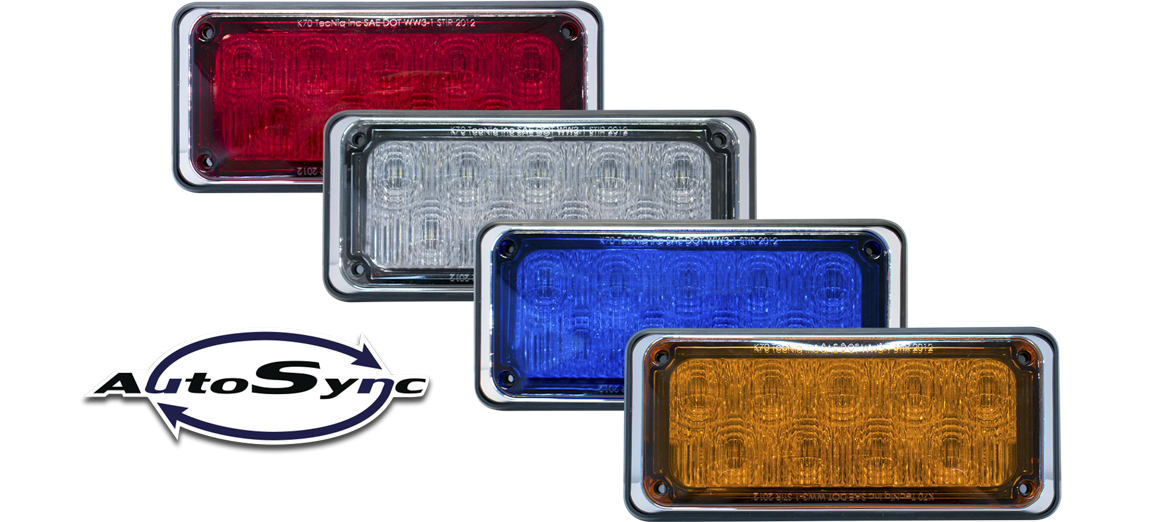

K70 7"x 3" LED Emergency Flasher
K70 7"x 3" LED Emergency Flasher
Technical Features
- Powerful 7"x 3" warning lamp fits standard mounting holes
- Lights are designed with Night Mode, by simply connecting yellow wire to 12V signal
- Patent-pending AutoSync technology means all TecNiq flashers are synchronized without requiring a separate control box
- Steady burn model also available for all colors
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Durable impact resistant lens
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- IP68 Rated for long-term dust and water-intrusion proof
- Meets all NFPA 1900 and Triple K specifications, including upcoming regulations
- DOT stop/tail/turn/reverse lamp compliance mode available on all lamps
- WIRE COLORS
Black – Ground, Red – Positive, White – Pattern Selection, Yellow – Night Mode, Blue – Wig-Wag (opposite pattern phase)
Finally, simplicity in a warning flasher! TecNiq's AutoSync eliminates the need for a costly central vehicle flash controller or any interconnections between lamps. Our patent-pending technology enables TecNiq emergency flashers to hold synchronized flash patterns for over 8 hours of continuous use. Standard mounting patterns and a variety of pre-programmed flash patterns make the K series emergency flashers perfect for new construction or retrofit. For alternating flash patterns, just connect one light's wig-wag wire to the 12v source and that lamp will flash out of phase with the others. By pairing our ultra-efficient lens technology with world leading LEDs, the K series provides high output emergency light over an industry-leading range of angles. AutoSync equipped lights also feature a built in powerful microprocessor controller, low electrical noise, submersible electronics, excellent price point, lifetime warranty, and assembled in the USA.
| Dimensions |
|
| LEDs | 9 |
| Voltage | 9-14VDC |
| Current | ≈1.25A (average) – 2.5A (peak) |
| Connectors | 9" pigtail |
| Mounting | Surface mount using just (4) screws (included) |
| LED Colors | Red • Amber • Green • Blue • White |
| Wire Colors |
AutoSync Flasher Red Wire - 12V DC Power Black Wire - Ground Yellow Wire - Low Intensity (Night Mode) White Wire - Flash Pattern Change Blue Wire white stripe - Wig-Wag wire (AutoSync) Connect to power for opposite phase Stop/Tail/Turn & Steady Burn Flasher Red Wire - 12V DC Power Black Wire - Ground Yellow Wire - Low Intensity (STT etc.) |
| Flash Patterns |
Pattern of
Off
Animation performance may vary depending on browser or PC configuration
(K90 Pictured) |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| K70-0100-1 |
K60 & K70 Anchor/Screw Kit
|
1 | - | |||
| K70-1B00-1 |
K70 Black Trim and Gasket Kit
|
1 | - | |||
| K70-1C00-1 |
K70 Chrome Trim and Gasket Kit
|
1 | - | |||
| K70-AA00-1 |
K70 AutoSync Amber Flasher Lamp Amber Lens
|
 |
 |
1 | Pigtail | |
| K70-AAS0-1 |
K70 Steady Amber Flasher Amber Lens
|
|
|
1 | Pigtail | |
| K70-AAT0-1 |
K70 Steady Amber Turn Amber Lens
|
|
|
1 | Pigtail | |
| K70-AC00-1 |
K70 AutoSync Amber Flasher Lamp Clear Lens
|
|
 |
1 | Pigtail | |
| K70-ACS0-1 |
K70 Steady Amber Flasher Clear Lens
|
|
|
1 | Pigtail | |
| K70-ACT0-1 |
K70 Steady Amber Turn Clear Lens
|
|
|
1 | Pigtail | |
| K70-BB00-1 |
K70 AutoSync Blue Flasher Lamp Blue Lens
|
 |
 |
1 | Pigtail | |
| K70-BBS0-1 |
K70 Steady Blue Flasher Blue Lens
|
|
|
1 | Pigtail | |
| K70-BC00-1 |
K70 AutoSync Blue Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K70-BCS0-1 |
K70 Steady Blue Flasher Clear Lens
|
|
|
1 | Pigtail | |
| K70-GC00-1 |
K70 AutoSync Green Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K70-GCS0-1 |
K70 Steady Green Flasher Clear Lens
|
|
|
1 | Pigtail | |
| K70-GG00-1 |
K70 AutoSync Green Flasher Lamp Green Lens
|
|
 |
1 | Pigtail | |
| K70-GGS0-1 |
K70 Steady Green Flasher Green Lens
|
|
|
1 | Pigtail | |
| K70-RC00-1 |
K70 AutoSync Red Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K70-RCS0-1 |
K70 Steady Red Flasher Clear Lens
|
|
|
1 | Pigtail | |
| K70-RR00-1 |
K70 AutoSync Red Flasher Lamp Red Lens
|
|
 |
1 | Pigtail | |
| K70-RRS0-1 |
K70 Steady Red Flasher Red Lens
|
|
|
1 | Pigtail | |
| K70-STC0-1 |
K70 Steady Red STT Clear Lens
|
|
|
1 | Pigtail | |
| K70-STR0-1 |
K70 Steady Red STT Red Lens
|
|
|
1 | Pigtail | |
| K70-SW00-1 |
K70 High Output Scene Light
|
 |
|
1 | Pigtail | |
| K70-WBU0-1 |
K70 White Backup Lamp
|
|
|
1 | Pigtail | |
| K70-WC00-1 |
K70 AutoSync White Flasher Lamp
|
|
|
1 | Pigtail | |
| K70-WCS0-1 |
K70 Steady White Flasher Clear Lens
|
|
|
1 | Pigtail |
