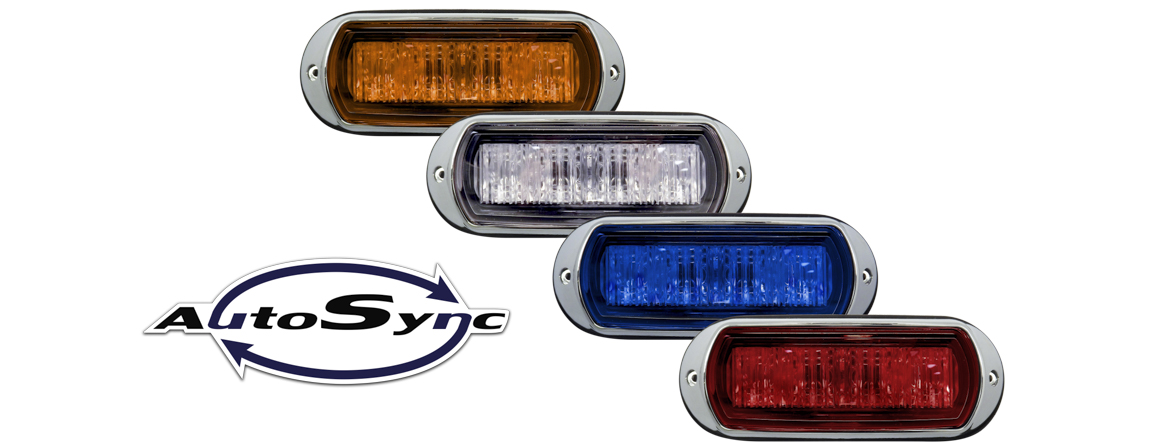

K50 5"x 2" LED Emergency Flasher
K50 5"x 2" LED Emergency Flasher
Technical Features
- Powerful 5"x 2" warning lamp fits standard mounting holes
- Lights are designed with Night Mode, by simply connecting yellow wire to 12V signal
- Patent-pending AutoSync technology means all TecNiq flashers are synchronized without requiring a separate control box
- Steady burn model also available for all colors
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Durable impact resistant lens
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- IP68 Rated for long-term dust and water-intrusion proof
- Meets all NFPA 1900 and Triple K specifications, including upcoming regulations
- WIRE COLORS
Black – Ground, Red – Positive, White – Pattern Selection, Yellow – Night Mode, Blue – Wig-Wag (opposite pattern phase)
Finally, simplicity in a warning flasher! TecNiq's AutoSync eliminates the need for a costly central vehicle flash controller or any interconnections between lamps. Our patent-pending technology enables TecNiq emergency flashers to hold synchronized flash patterns for over 8 hours of continuous use. Standard mounting patterns and a variety of pre-programmed flash patterns make the K series emergency flashers perfect for new construction or retrofit. For alternating flash patterns, just connect one light's wig-wag wire to the 12v source and that lamp will flash out of phase with the others. By pairing our ultra-efficient lens technology with world leading LEDs, the K series provides high output emergency light over an industry-leading range of angles. AutoSync equipped lights also feature a built in powerful microprocessor controller, low electrical noise, submersible electronics, excellent price point, lifetime warranty, and assembled in the USA.

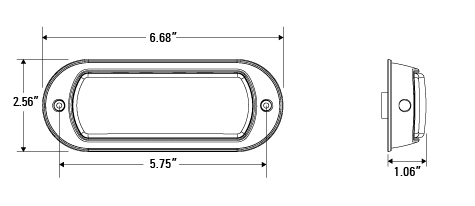

| Dimensions |
|
| LEDs | 4 |
| Voltage | 9-14VDC |
| Current | ≈0.9A (average) – 1.8A (peak) |
| Connectors | 9" pigtail |
| Mounting | Surface mount using just (2) screws (included) |
| LED Colors | Red • Amber • Green • Blue • White • Red/White • Red/Blue • Blue/White • Red/Amber |
| Wire Colors |
AutoSync Flasher Red Wire - 12V DC Power Black Wire - Ground Yellow Wire - Low Intensity (Night Mode) White Wire - Flash Pattern Change Blue Wire white stripe - Wig-Wag wire (AutoSync) Connect to power for opposite phase Stop/Tail/Turn & Steady Burn Flasher Red Wire - 12V DC Power Black Wire - Ground Yellow Wire - Low Intensity (STT etc.) |
| Flash Patterns |
Pattern of
Off
Animation performance may vary depending on browser or PC configuration
(K90 Pictured) |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| K40-0100-1 |
K40 K50 Anchor Screw Kit
|
1 | - | |||
| K50-1B00-1 |
K50 Black Trim and Gasket Kit
|
1 | - | |||
| K50-1C00-1 |
K50 Chrome Trim and Gasket Kit
|
1 | - | |||
| K50-AA00-1 |
K50 AutoSync Amber Flasher Lamp Amber Lens
|
 |
 |
1 | Pigtail | |
| K50-AAS0-1 |
K50 Steady Amber Flasher Lamp Amber Lens
|
|
|
1 | Pigtail | |
| K50-AC00-1 |
K50 AutoSync Amber Flasher Lamp Clear Lens
|
|
 |
1 | Pigtail | |
| K50-ACS0-1 |
K50 Steady Amber Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K50-AG00-1 |
K50 AutoSync Amber Green Combo Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K50-AR00-1 |
K50 AutoSync Amber Red Combo Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K50-BA00-1 |
K50 AutoSync Blue Amber Combo Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K50-BB00-1 |
K50 AutoSync Blue Flasher Lamp Blue Lens
|
 |
 |
1 | Pigtail | |
| K50-BBS0-1 |
K50 Steady Blue Flasher Lamp Blue Lens
|
|
|
1 | Pigtail | |
| K50-BC00-1 |
K50 AutoSync Blue Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K50-BCS0-1 |
K50 Steady Blue Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K50-BR00-1 |
K50 AutoSync Blue Red Combo Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K50-GC00-1 |
K50 AutoSync Green Flasher Lamp Clear Lens
This part number is only available in quantities over 1000.
|
 |
|
1 | Pigtail | |
| K50-GCS0-1 |
K50 Steady Green Flasher Lamp Clear Lens
This part number is only available in quantities over 1000.
|
|
|
1 | Pigtail | |
| K50-GG00-1 |
K50 AutoSync Green Flasher Lamp Green Lens
This part number is only available in quantities over 1000.
|
|
 |
1 | Pigtail | |
| K50-GGS0-1 |
K50 Steady Green Flasher Lamp Green Lens
This part number is only available in quantities over 1000.
|
|
|
1 | Pigtail | |
| K50-RC00-1 |
K50 AutoSync Red Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K50-RCS0-1 |
K50 Steady Red Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K50-RR00-1 |
K50 AutoSync Red Flasher Lamp Red Lens
|
|
 |
1 | Pigtail | |
| K50-RRS0-1 |
K50 Steady Red Flasher Lamp Red Lens
|
|
|
1 | Pigtail | |
| K50-WA00-1 |
K50 AutoSync White Amber Combo Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K50-WB00-1 |
K50 AutoSync White Blue Combo Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K50-WC00-1 |
K50 AutoSync White Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail | |
| K50-WCS0-1 |
K50 Steady White Flasher Lamp Clear Lens
|
|
|
1 | Pigtail | |
| K50-WR00-1 |
K50 AutoSync Whtie Red Combo Flasher Lamp Clear Lens
|
 |
|
1 | Pigtail |
