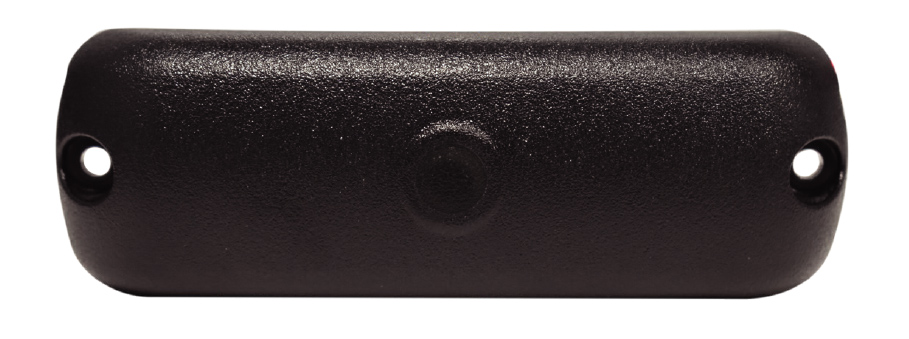

F99 External WigWag Control Module
F99 External WigWag Control Module
Technical Features
- External WigWag module allows you to control non-flashing lights
- Great for use with garbage/refuse trucks, work trucks and more
- Current limit of 2 Amps
| Connectors |
4.25" Pigtail Connector dimensions are 4.90"x 1.61"x 0.81" |
| Mounting | Screw mounted with 2 #8 Screws |
| Wire Colors |
Red Wire (white stripe) - 12VDC Red Wire - Input GND Black Wire - Output GND Yellow Wire - Output 12VDC Driver's Side Green Wire - Output 12VDC Passenger's Side |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| F99-XB00-1 |
Non-Programmable WigWag Control Module
|
- | ||||
| F99-XB0F-1 |
External Wig Wag Control Module Deutech Connector
|
 |
||||
| F99-XBP0-1 |
Control Module Programmable External Flasher 21 Module
|
- | ||||
| F99-XBX0-1 |
Ext Flash Controller Alt X WigWag
|
- | ||||
| F99-XBXF-1 |
Ext Flash Controller Alt X WigWag W/ 8-Way Deutsch Conn
|
|
