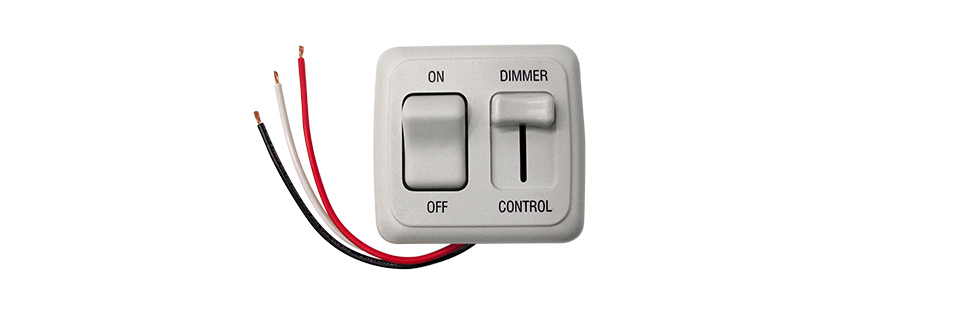

E99 Switch Dimmer Switch
E99 Switch Dimmer Switch
Technical Features
- Available in Rotary or Slide dimmer
- Utilizes Pulse Width Modulation
- Rated up to 15 amps
- Attaches with hidden fasteners
TecNiq E99 rotary or slide dimmer switch can be hardwired into a variety of applications to give the user control of the ambience and brightness surrounding them

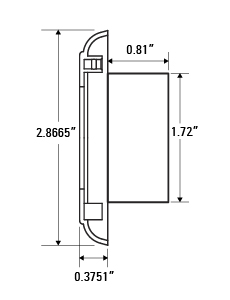

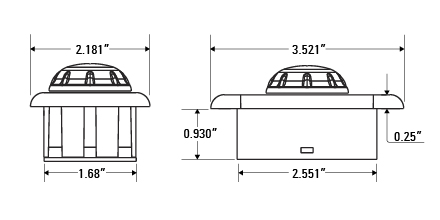

| Dimensions |
|
| Max Amps | 15A |
| Connectors | 5" |
| Wire Colors |
Black Wire - Ground White Wire - V+ Out (to light) Red Wire - V+ In |
| Ground | Black |
| Wiring Illustration |
|
| Wire Gauge | 18 Gauge |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E99-D001-1 |

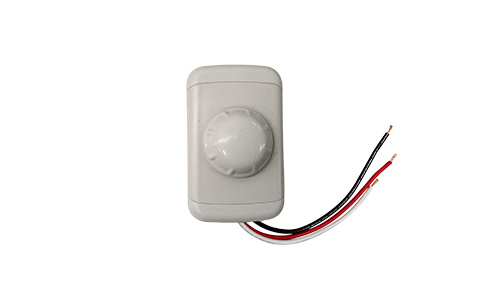

Dimmer Rotary
|
- | ||||
| E99-D002-1 |
Dimmer Slide
|
- |
