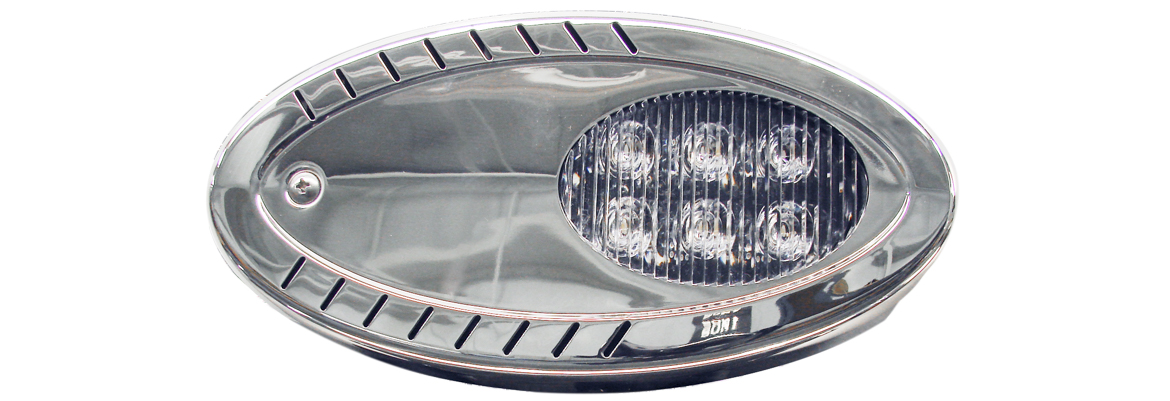

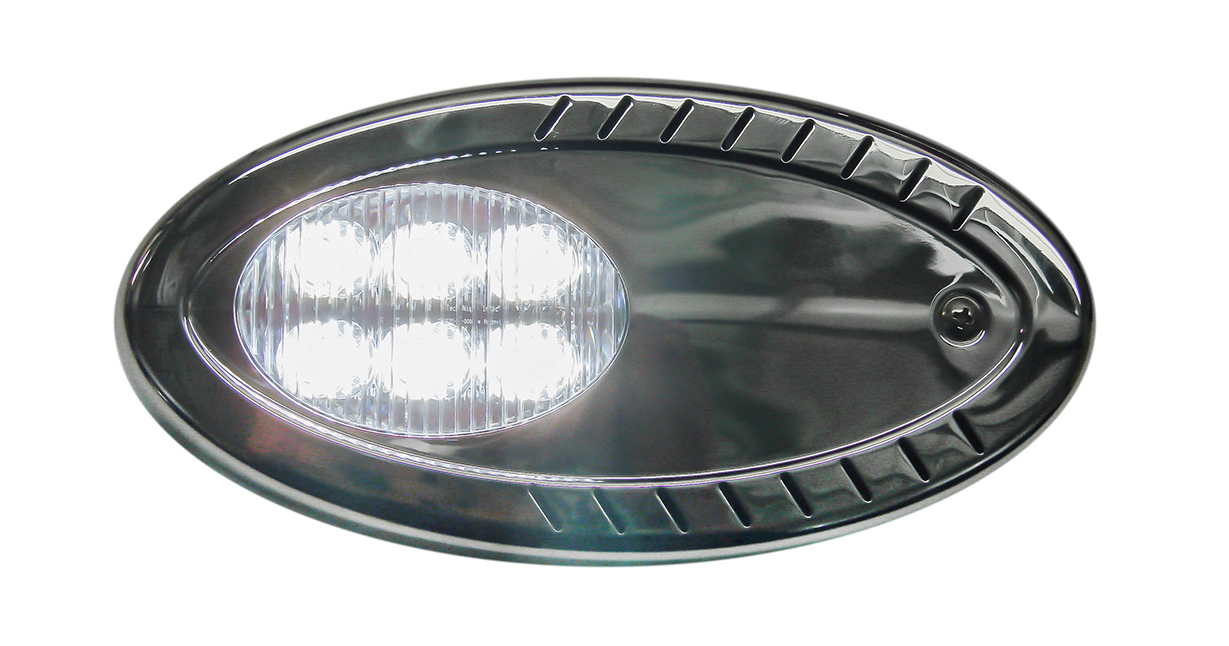

E96 Surface Mount Spotlight
E96 Surface Mount Spotlight
Technical Features
- Surface mount design increases your mounting options and eliminates large oval holes in your hull
- Produces 900 lumens per light
- 316 Stainless Steel Covers
- Anodized, die-cast, marine-grade, aluminum body
- Primary spot output is 30° from mounting surface
- Secondary rectangular flood output used for area illumination
- WIRE COLORS
Black – Ground, White – Positive
TecNiq's E96 is designed for extreme environments, this high-brightness spot and flood lamp projects the main beam of light just 30° off of the mounting surface. A secondary, lower-intensity light emits a rectangular flood pattern over a wide angle. Even more unique is its true surface mount construction. Employing 6 ultra-efficient power LEDs, driven at their maximum power, combined with the high efficiency lenses you expect from TecNiq, this lamp is sure to impress you and your customers for its quality, performance and cost.
Related Products

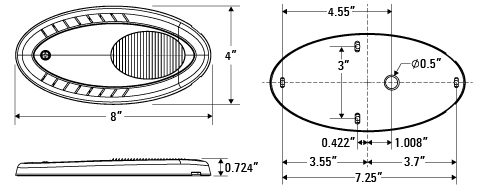

| Dimensions |
|
| LEDs | 6 |
| Lumens | 900 |
| Voltage | 9-14VDC |
| Current | 0.45A-0.55A |
| Connectors | 9" |
| Mounting | Surface mount using (4) #8 screws |
| LED Colors | White |
| Wire Colors |
Black - Ground White - Positive |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E96-WS00-1 |
Docking Light TecNiq
|
 |
 |
12 | 9" Pigtail |
