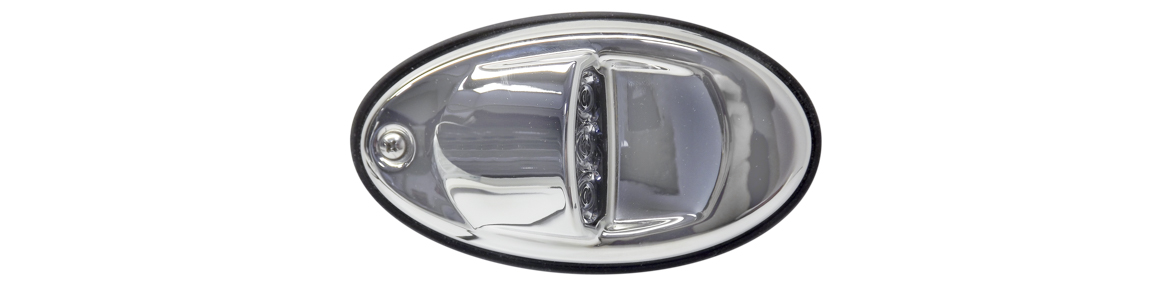

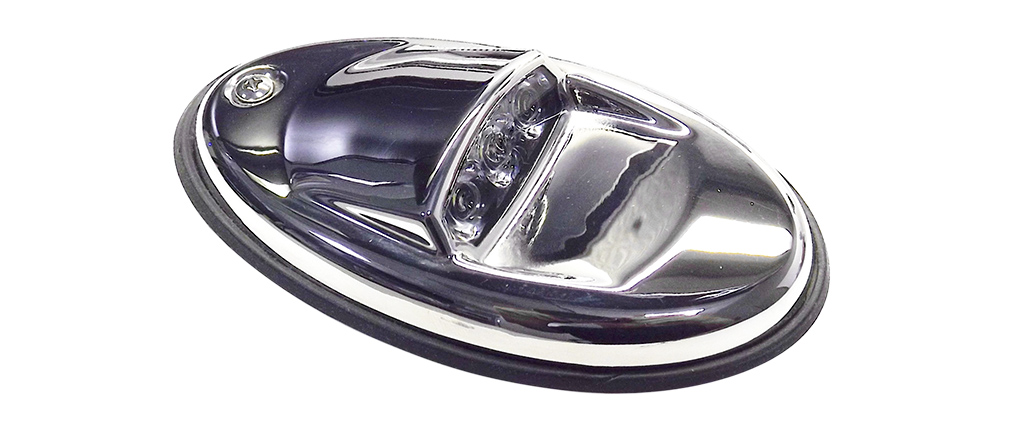

E61 Surface Mount Docking Light

Technical Features

Surface mount design is perfect for pontoons and fishing boats
1400 Lumen output per light
Waterproof design, made with our TecSeal Urethane potting
Anodized cast aluminum heatsink
Form fitting gasket to protect the boat finish
Excellent forward to side of boat illumination
WIRE COLORS
Black – Ground, White – Positive

TecNiq's E61 Surface Mounted Docking Light is made with anodized cast aluminum heatsink for durability, finished with 316 stainless steel cover for elegance. Perfect for pontoon and fishing boats, E61 is potted with our very own TecSeal, guaranteed waterproof and functionality for a lifetime of use.

Related Products

E60

Flush Mount Docking Light

E96

Surface Mount Spotlight

M30

Ancillary White Light

E10

Ground/Pump Panel Light

K60 Scene

6"x 4" LED Scene Light

K70 Scene

7"x 3" LED Scene Light

K90 Scene

9"x 7" LED Scene Light

M510

Navigation/Docking/Courtesy Lights
20° Mounting Angle

M511

Navigation/Docking/Courtesy Lights
Mounts Parallel to Centerline of Boat

M512

Vertical Mount Docking/Courtesy Lights

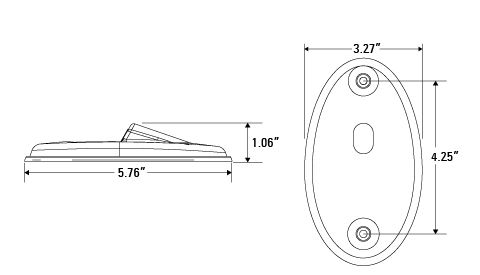

Dimensions
LEDs	3
Lumens	1400
Voltage	9-30VDC
Current	0.85A - 1.15A
Connectors	12"
Mounting	Surface mounted with two screws
LED Colors	White
Wire Colors	Black - Ground White - Positive
Ground	Black

Downloadable Resources

Name	Description	STD Pack	Connector
E61-WS00-1	Surface Mount Docking Light	6	Sheathed Pigtail (12")
E61-WS0E-1	Surface Mount Docking Light W/Metri-Pack Connector	6	Metri-Pack Connector
E61-WS0F-1	Surface Mount Docking Light w xT04-2P Connector	6	xT04-2P

Prop 65 Warning

This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
