E58 Narrow Body Diffuse RGBW Strip Light
E58 Narrow Body Diffuse RGBW Strip Light

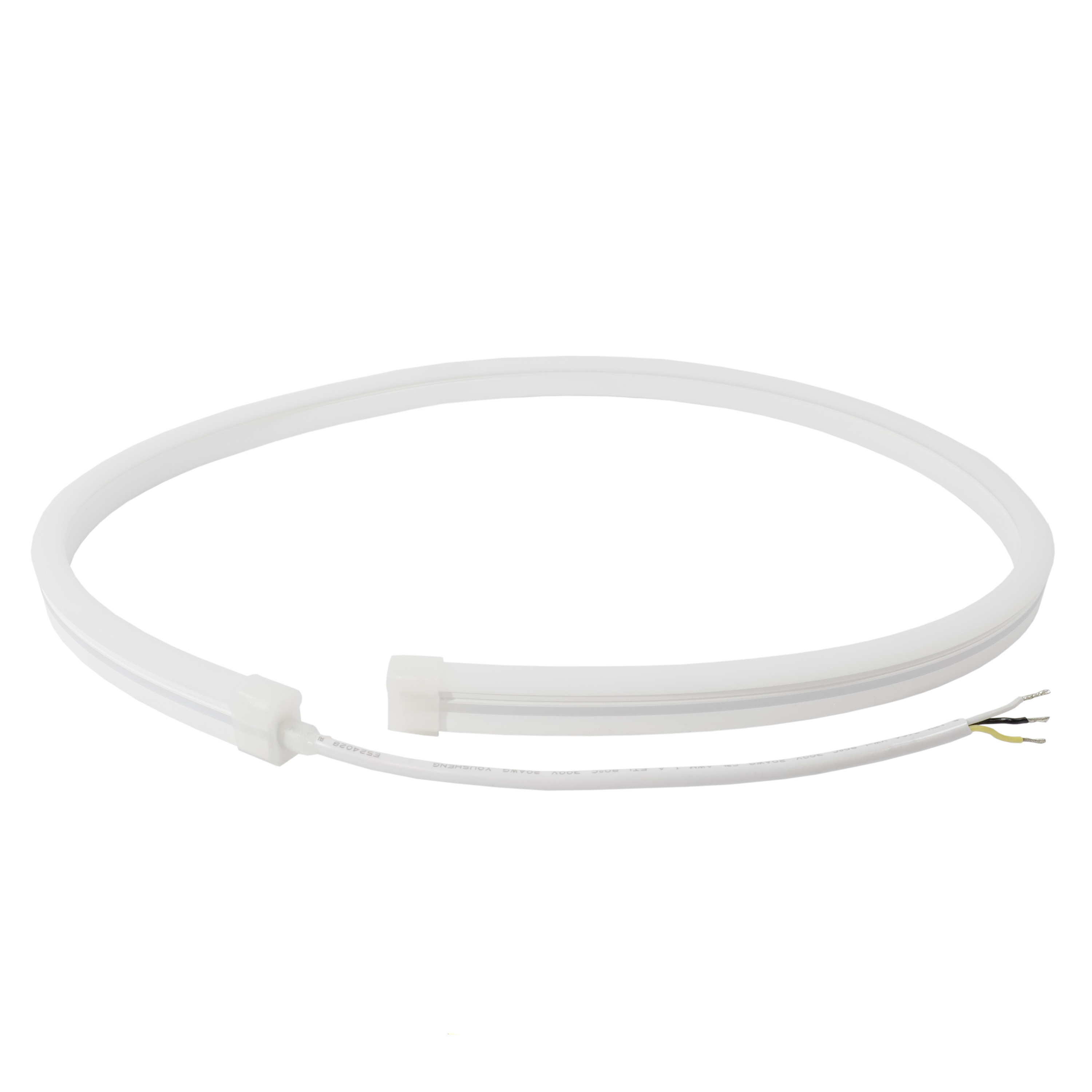

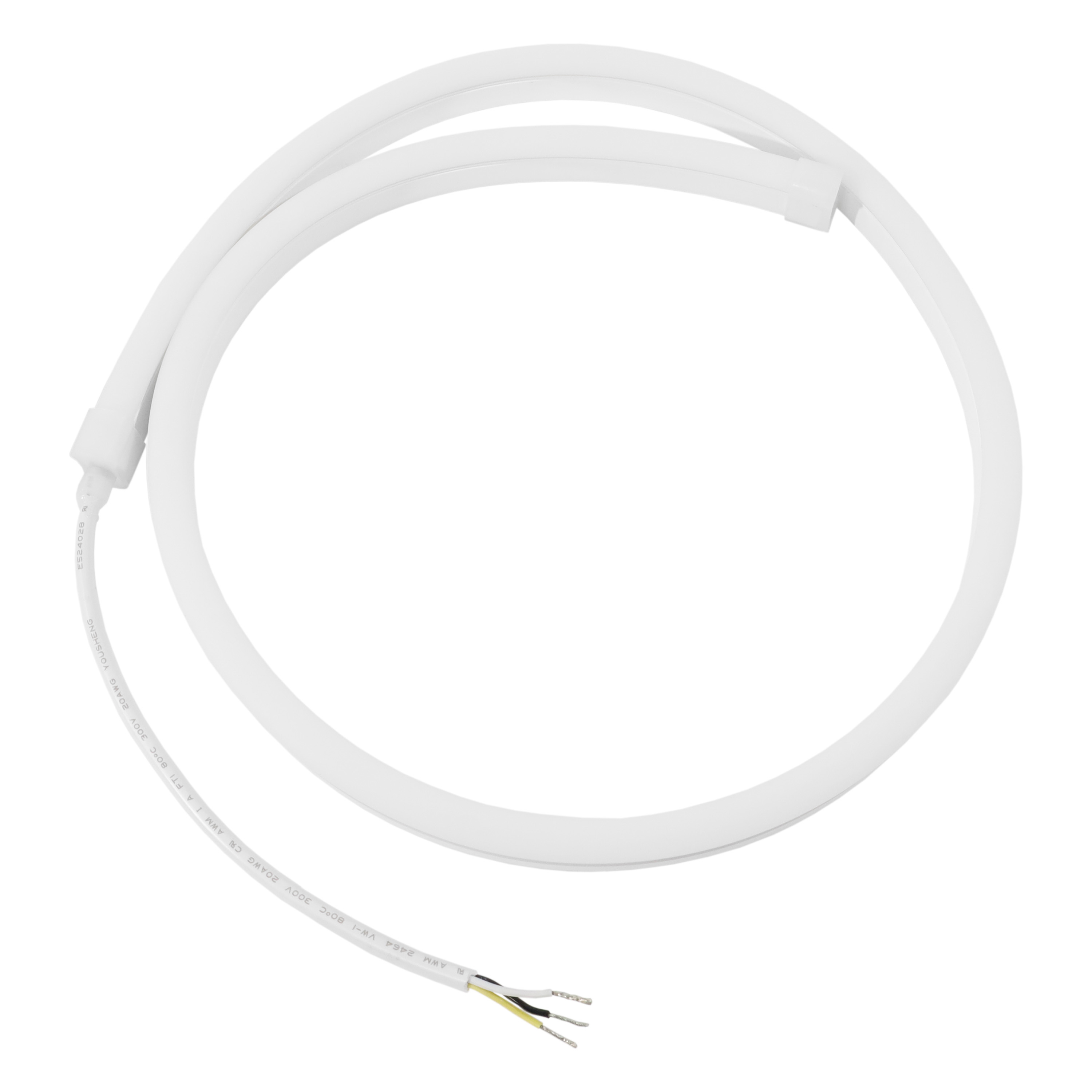

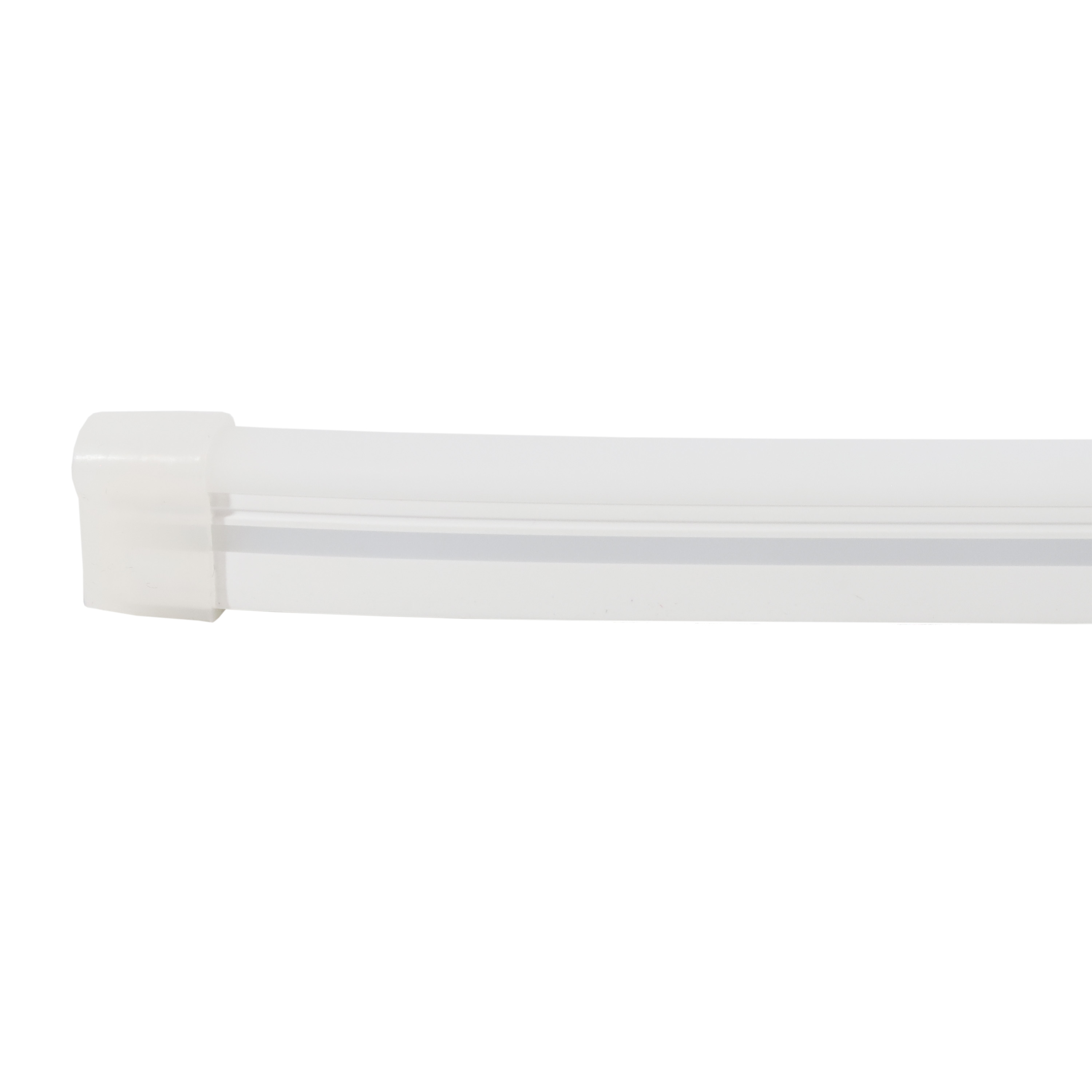

The TecNiq E58 Narrow Body Diffused RGB Strip Light combines a slim profile with flexible installation, durable construction, and a clean, uniform appearance. Its narrow-body design makes it ideal for applications where space is limited, while the diffused design provides smooth, even illumination. Available with addressable RGB technology for customizable colors and dynamic lighting effects, the E58 is a versatile solution for trailers, fire trucks, boats, and specialty applications.
| Dimensions |
|
| LEDs |
2ft - 144 (72 white/72 blue) 3ft - 216 (108 white/108 blue) |
| Lumens |
2ft - 2650(White) / 215(Blue) @12.8V 3ft - 4000(White) / 325(Blue) @12.8V |
| Voltage | 9-14VDC |
| Current |
0.52A - 0.68A - Blue 0.62A - 0.80A - White |
| Connectors | 12" Sheathed Pigtail |
| Mounting | Surface mount |
| LED Colors | Blue/White |
| Wire Colors |
Black Wire - Ground Blue Wire - Positive (blue LEDs) White Wire - Positive (white LEDs) |
| Ground | Black |

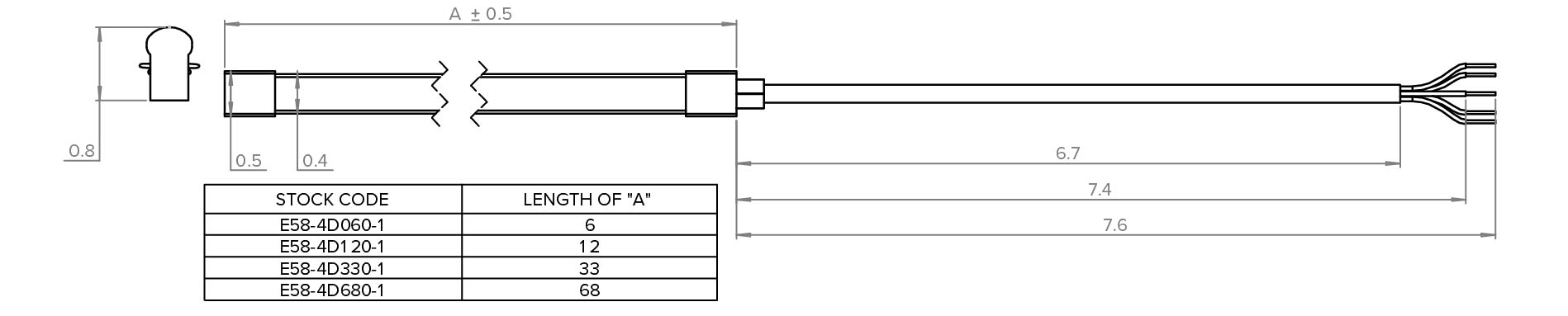

| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E58-4D060-1 |
Narrow Body Diffuse RGBW Strip Light 6in
|
 |
 |
9" Pigtail | ||
| E58-4D120-1 |
Narrow Body Diffuse RGBW Strip Light 12in
|
|
|
9" Pigtail | ||
| E58-4D330-1 |
Narrow Body Diffuse RGBW Strip Light 33in
|
|
|
9" Pigtail | ||
| E58-4D680-1 |
Narrow Body Diffuse RGBW Strip Light 68in
|
|
|
9" Pigtail | ||
| E58-4DA040-1 |
**RGBW Addressable LED Diffuse Narrow Body 4IN Strip
|
|
|
|||
| E58-4DA080-1 |
**RGBW Addressable LED Diffuse Narrow Body 8IN Strip
|
|
|
|||
| E58-4DA120-1 |
**RGBW Addressable LED Diffuse Narrow Body 12IN Strip
|
|
|
|||
| E58-4DA200-1 |
**RGBW Addressable LED Diffuse Narrow Body 20IN Strip
|
|
|
|||
| E58-4DA20V-1 |
**Narrow Body Strip Lt Addressable LED Diffuse Lens RGBW 20IN Strip End PigTl
|
|
|
|||
| E58-4DA280-1 |
**RGBW Addressable LED Diffuse Narrow Body 28IN Strip
|
|
|
|||
| E58-4DA360-1 |
**RGBW Addressable LED Diffuse Narrow Body 36IN Strip
|
|
|
|||
| E58-4DA520-1 |
**RGBW Addressable LED Diffuse Narrow Body 52IN Strip
|
|
|
|||
| E58-4DA720-1 |
**RGBW Addressable LED Diffuse Narrow Body 72IN Strip
|
|
|
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
