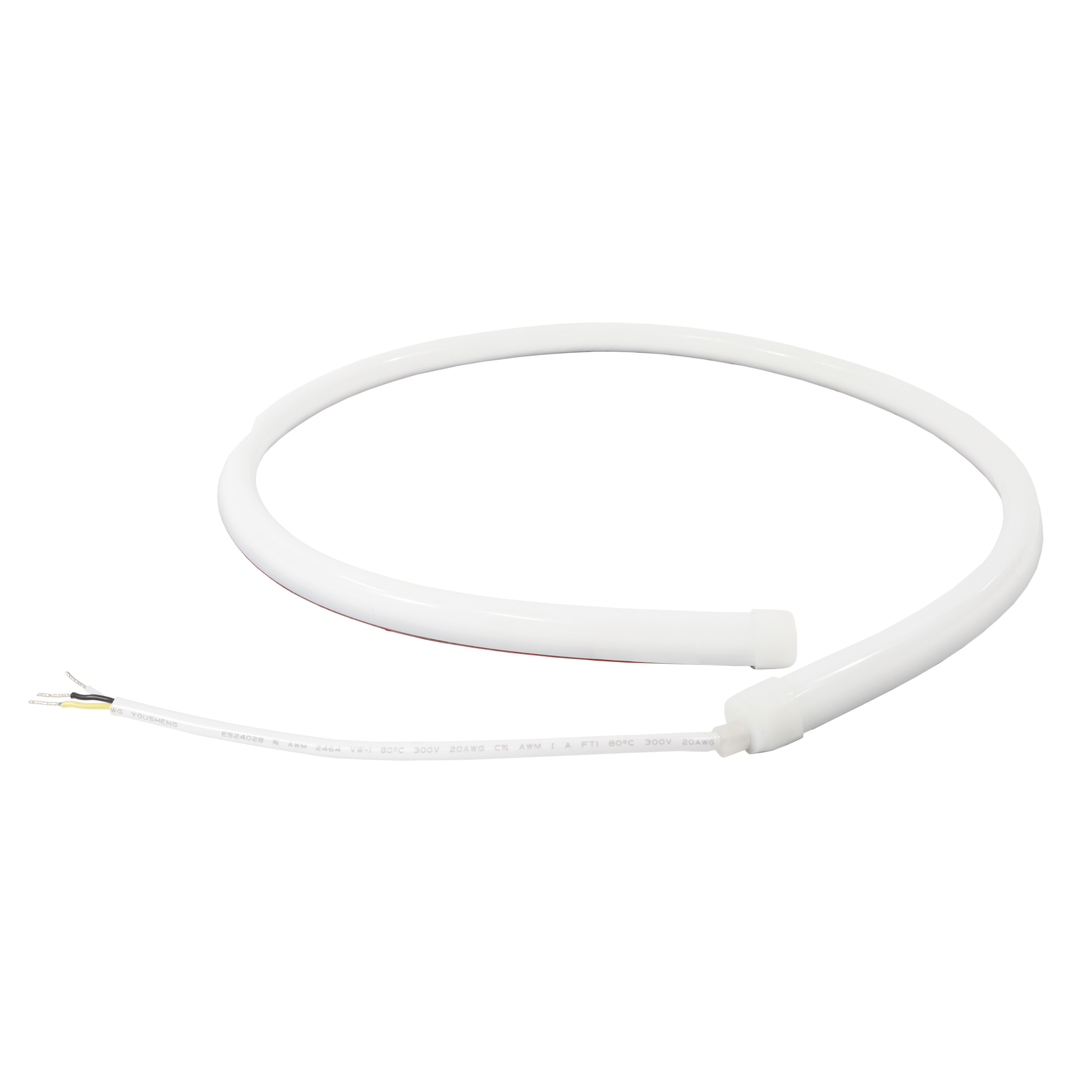

E57 Wide Body Diffuse RGBW Strip Light
E57 Wide Body Diffuse RGBW Strip Light
The TecNiq E57 Wide Body Diffused RGB Strip Light combines flexibility, durability, and style in a versatile lighting solution. Its wide-body design and diffused illumination provide a smooth, uniform appearance, while RGB functionality allows for customizable lighting effects. Ideal for trailers, fire trucks, boats, and specialty applications, the E57 delivers a premium look backed by the quality and durability you expect from TecNiq.
| Dimensions |
|
| LEDs |
2ft - 144 (72 white/72 blue) 3ft - 216 (108 white/108 blue) |
| Lumens |
2ft - 2650(White) / 215(Blue) @12.8V 3ft - 4000(White) / 325(Blue) @12.8V |
| Voltage | 9-14VDC |
| Current |
0.52A - 0.68A - Blue 0.62A - 0.80A - White |
| Connectors | 12" Sheathed Pigtail |
| Mounting | Surface mount |
| LED Colors | Blue/White |
| Wire Colors |
Black Wire - Ground Blue Wire - Positive (blue LEDs) White Wire - Positive (white LEDs) |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E57-4D060-1 |
Wide Body Diffuse RGBW Strip Light 6in
|
 |
 |
9" Pigtail | ||
| E57-4D120-1 |
Wide Body Diffuse RGBW Strip Light 12in
|
|
|
9" Pigtail | ||
| E57-4D330-1 |
Wide Body Diffuse RGBW Strip Light 33in
|
|
|
9" Pigtail | ||
| E57-4D680-1 |
Wide Body Diffuse RGBW Strip Light 68in
|
|
|
9" Pigtail | ||
| E57-4DA040-1 |
**RGBW Addressable LED Diffuse Wide Body 4IN Strip
|
|
|
|||
| E57-4DA080-1 |
**RGBW Addressable LED Diffuse Wide Body 8IN Strip
|
|
|
|||
| E57-4DA120-1 |
**RGBW Addressable LED Diffuse Wide Body 12IN Strip
|
|
|
|||
| E57-4DA200-1 |
**RGBW Addressable LED Diffuse Wide Body 20IN Strip
|
|
|
|||
| E57-4DA20V-1 |
**Wide Body Strip Lt Addressable LED Diffuse Lens RGBW 20IN Strip End PigTl
|
|
|
|||
| E57-4DA280-1 |
**RGBW Addressable LED Diffuse Wide Body 28IN Strip
|
|
|
|||
| E57-4DA360-1 |
**RGBW Addressable LED Diffuse Wide Body 36IN Strip
|
|
|
|||
| E57-4DA520-1 |
**Wide Body Diffuse Addressable RGBW Strip Light 52in
|
|
|
|||
| E57-4DA720-1 |
**RGBW Addressable LED Diffuse Wide Body 72IN Strip
|
|
|
