E49 Slim Line Area/Accent Surface Mount Light
E49 Slim Line Area/Accent Surface Mount Light
Technical Features
- Frosted Acrylic lens for even light distribution
- Available in 24" or 36" models
- Designed for 100,000 hours of performance
- Comes with 12" Sheathed pigtail connectors
- WIRE COLORS
White – Ground
Black – Positive (white LEDs)
Blue – Positive (blue LEDs)

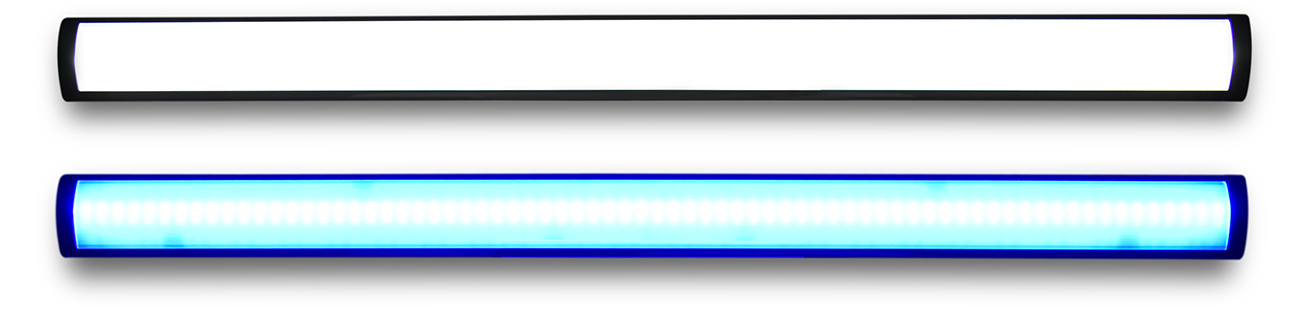

The All New E49 Slim Line Area/Accent Light is the newest accent light from TecNiq. The E49 features (2) available sizes, both equipped with bright white & blue LEDs. The E49 is made with a frosted acrylic lensing for evenly distributed light output, black aluminum housing for better heat dispersion, and is surface mounted for easy installation. See www.TecNiqInc.com for complete details and a complete list of part numbers.

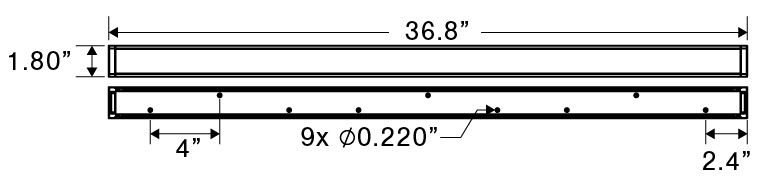

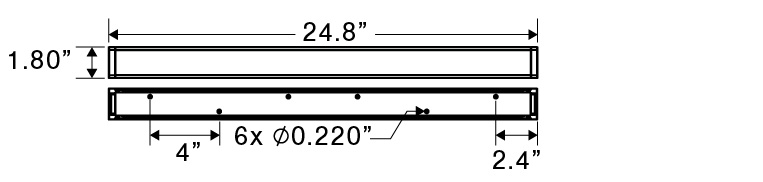

| Dimensions |
|
| LEDs |
2ft - 144 (72 white/72 blue) 3ft - 216 (108 white/108 blue) |
| Lumens |
2ft - 2650(White) / 215(Blue) @12.8V 3ft - 4000(White) / 325(Blue) @12.8V |
| Voltage | 9-14VDC |
| Current |
0.52A - 0.68A - Blue 0.62A - 0.80A - White |
| Connectors | 12" Sheathed Pigtail |
| Mounting | Surface mount |
| LED Colors | Blue/White |
| Wire Colors |
Black Wire - Ground Blue Wire - Positive (blue LEDs) White Wire - Positive (white LEDs) |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E49-0B05-1 |
Black Parallel Clip Pair
|
- | ||||
| E49-BWA20-1 |
Blue White Rigid Clear Anodize Alu Strip Light 24in
|
 |
 |
Sheathed Pigtail (12") | ||
| E49-BWA20-K |
Blue White Rigid Clear Anodized Alu Strip Light 24in w/ Clips
|
|
|
Sheathed Pigtail (12") | ||
| E49-BWA2B-1 |
Blue White Rigid Clear Anodize Alu Strip Light 24IN .180 Bullets
|
|
|
|||
| E49-BWA30-1 |
Blue White Rigid Clear Anodize Alu Strip Light 36in
|
|
|
Sheathed Pigtail (12") | ||
| E49-BWA30-K |
Blue White Rigid Clear Anodized Alu Strip Light 36in W/ Clips
|
|
|
Sheathed Pigtail (12") | ||
| E49-BWA3B-1 |
Blue White Rigid Clear Anodize Alu Strip Light 36IN .180 Bullets
|
|
|
|||
| E49-BWA40-1 |
Blue White Rigid Clear Anodized Alu Strip Light 48in
|
|
|
Sheathed Pigtail (12") | ||
| E49-BWA40-K |
Blue White Rigid Clear Anodized Alu Strip Light 48in W/ Clips
|
|
|
Sheathed Pigtail (12") | ||
| E49-BWB20-1 |
Blue White Rigid Black Alu Strip Light 24in
|
|
|
Sheathed Pigtail (12") | ||
| E49-BWB20-K |
Blue White Rigid Black Alu Strip Light 24in Kit with Clips
|
|
|
Sheathed Pigtail (12") | ||
| E49-BWB30-1 |
Blue White Rigid Black Alu Strip Light 36in
|
|
|
Sheathed Pigtail (12") | ||
| E49-BWB30-K |
Blue White Rigid Black Alu Strip Light 36in Kit with Clips
|
|
|
Sheathed Pigtail (12") | ||
| E49-BWB40-1 |
Blue White Rigid Black Alu Strip Light 48in
|
|
|
Sheathed Pigtail (12") | ||
| E49-BWB40-K |
Blue White Rigid Black Alu Strip Light 48in Kit with Clips
|
|
|
Sheathed Pigtail (12") | ||
| E49-QBP10-1 |
Wht 6500K Prem Rigid Blk Alu Strip Lt 12IN
|
|
||||
| E49-QBP20-1 |
Wht 6500K Prem Rigid Blk Alu Strip Lt 24IN
|
|
||||
| E49-QBP30-1 |
Wht 6500K Prem Rigid Blk Alu Strip Lt 36IN
|
|
||||
| E49-QBP40-1 |
Wht 6500K Prem Rigid Blk Alu Strip Lt 48IN
|
|
||||
| E49-WA20-1 |
White Rigid Clear Anodize Alu Strip Light 24in
|
 |
|
Sheathed Pigtail (12") | ||
| E49-WA20-K |
White Rigid Clear Anodize Alu Strip Light 24in W/Clips
|
|
|
Sheathed Pigtail (12") | ||
| E49-WA30-1 |
White Rigid Clear Anodize Alu Strip Light 36in
|
|
|
Sheathed Pigtail (12") | ||
| E49-WA30-K |
White Rigid Clear Anodize Alu Strip Light 36in W/ Clips
|
|
|
Sheathed Pigtail (12") | ||
| E49-WA40-1 |
White Rigid Clear Anodize Alu Strip Light 48in
|
|
|
Sheathed Pigtail (12") | ||
| E49-WA40-K |
White Rigid Clear Anodize Alu Strip Light 48in W/ Clips
|
|
|
Sheathed Pigtail (12") | ||
| E49-WA4F-1 |
White Rigid Clear Anodize Alu Strip Light 48IN W xTM06-2S
|
|
|
|||
| E49-WB20-1 |
White Rigid Black Alu Strip Light 24in
|
|
|
Sheathed Pigtail (12") | ||
| E49-WB20-K |
White Rigid Black Alu Strip Light 24" W/ Clips
|
|
|
Sheathed Pigtail (12") | ||
| E49-WB30-1 |
White Rigid Black Alu Strip Light 36in
|
|
|
Sheathed Pigtail (12") | ||
| E49-WB30-K |
White Rigid Black Alu Strip Light 36" W/ Clips
|
|
|
Sheathed Pigtail (12") | ||
| E49-WB40-1 |
White Rigid Black Alu Strip Light 48in
|
|
|
Sheathed Pigtail (12") | ||
| E49-WB40-K |
White Rigid Black Alu Strip Light 48" W/ Clips
|
|
|
Sheathed Pigtail (12") | ||
| E49-WBC20-1 |
24IN Black Alu White 72LED Strip Diffuse Lens 11IN PgTl
|
|
|
|||
| E49-WBC30-1 |
36IN Black Alu White 108LED Strip Diffuse Lens 11IN PgTl
|
|
|
|||
| E49-WBC40-1 |
48IN Black Alu White 144LED Strip Diffuse Lens 11IN PgTl
|
|
|
|||
| E49-WBE060-1 |
6IN Black Extrusion White 12LED Economy Strip Diffuse Lens 11IN Lead
|
|
|
Sheathed Pigtail (12") | ||
| E49-WBE120-1 |
12IN Black Extrusion White 24LED Economy Strip Diffuse Lens 11IN Lead
|
|
|
Sheathed Pigtail (12") | ||
| E49-WBE240-1 |
24IN Black Extrusion White 48LED Economy Strip Diffuse Lens 11IN Lead
|
|
|
Sheathed Pigtail (12") | ||
| E49-WBE360-1 |
36IN Black Extrusion White 72LED Economy Strip Diffuse Lens 11IN Lead
|
|
|
|||
| E49-WW20-1 |
White Rigid White Alu Strip Light 24in
|
|
|
Sheathed Pigtail (12") | ||
| E49-WW30-1 |
White Rigid White Alu Strip Light 36in
|
|
|
Sheathed Pigtail (12") | ||
| E49-WW40-1 |
White Rigid White Alu Strip Light 48in
|
|
|
Sheathed Pigtail (12") |
