E45 Slim Light
E45 Slim Light
Technical Features
- Premium models offer twice the brightness
- Easy installation, snaps into place with flat and 90° mounting clips
- Sealed with TPE end caps for superior protection
- 50,000-hour life performance rating
- WIRE COLORS
Black – Ground, White – Positive

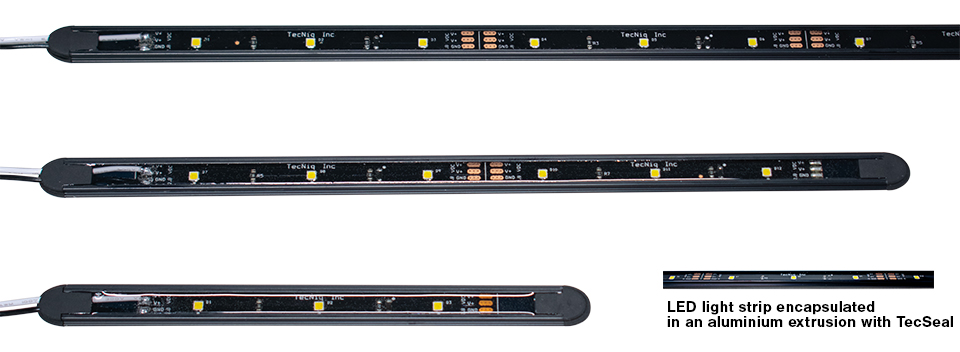

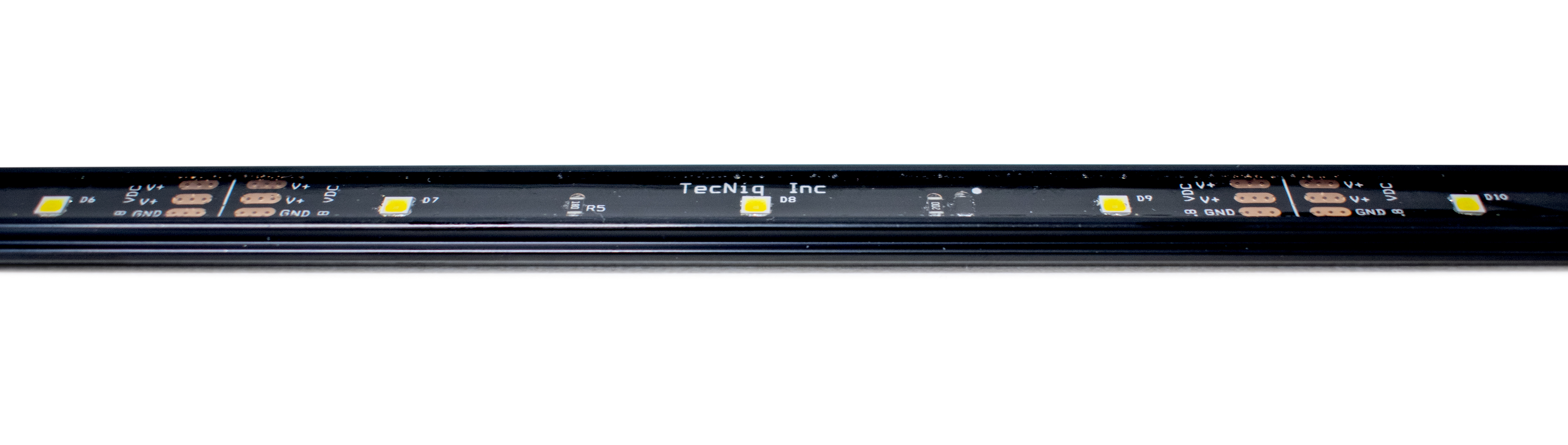

With TecNiq's E45 Slim Extrusion lighting is no stranger to options; available in standard or premium LED, various lengths and connectors, with the ability to mount in three different angles.
| Dimensions |
0.55"x 0.23"x 7.0" (E45-W010-1 / E45-WBP01-1)
|
| LEDs |
3 / section (standard) 6 / section (premium) |
| Lumens |
150 lm - 7" standard 300 lm - 11.5" standard 750 lm - 25" standard 1500 lm - 47.5" standard 1800 lm - 56.5" premium 300 lm - 7" premium 600 lm - 11.5" premium 1500 lm - 25" premium 3000 lm - 47.5" premium 3600 lm - 56.5" premium |
| Voltage | 9-14VDC |
| Current |
0.08A – 7" standard 0.16A – 11.5" standard 0.40A – 25" standard 0.80A – 47.5" standard 0.96A – 56.5" standard 0.16A – 7" premium 0.32A – 11.5" premium 0.80A – 25" premium 1.60A – 47.5" premium 1.92A – 56.5" premium |
| Connectors | 9" |
| Mounting | Mounts with snap on vertical or horizontal clips |
| LED Colors | White |
| Angle |
|
| Wire Colors |
White Black - Ground White - Positive RGB+W Black Wire - 12VDC Power White Wire - Ground (White) Red Wire - Ground (Red) Green Wire - Ground (Green) Blue Wire - Ground (Blue) |
| Ground |
Black (white model) Colored Wires (RGB) |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|

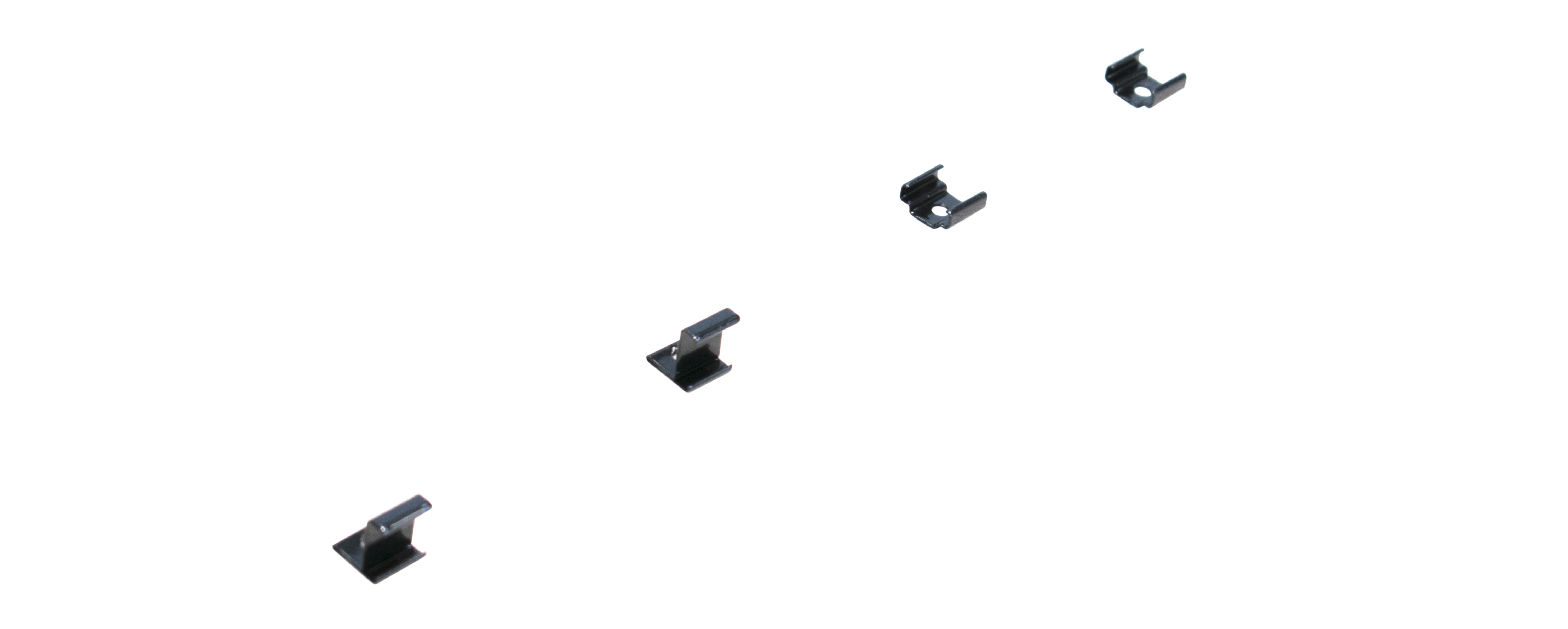

| E45-0B03-1 |
Black Parallel Mount Screw Clip - Pair
|
- | ||||
| E45-0B04-1 |
Black Perpendicular Mount Screw Clip - Pair
|
- | ||||
| E45-0B05-1 |
Black 45 Degree Mount Screw Clip - Pair
|
- | ||||
| E45-0B06-1 |
1IN Black 45 Degree Mount Clip - Pair
|
|||||
| E45-4B050-1 |
9.5" Aluminum Extrusion Lamp RGBW Black Housing
|
 |
 |
- | ||
| E45-4B070-1 |
12.5" Aluminum Extrusion Lamp RGBW Black Housing
|
|
|
- | ||
| E45-4B130-1 |
21.5" Aluminum Extrusion Lamp RGBW Black Housing
|
|
|
- | ||
| E45-4B230-1 |
36" Aluminum Extrusion Lamp RGBW Black Housing
|
|
|
- | ||
| E45-4B28V-1 |
44IN AL Extrusion Lamp RGBW Black Housing VHB
|
|
|
|||
| E45-4B300-1 |
47" Aluminum Extrusion Lamp RGBW Black Housing
|
|
|
- | ||
| E45-4B38V-1 |
59IN AL Extrusion Lamp RGBW Black Housing VHB
|
|
|
|||
| E45-4B460-1 |
71" Aluminum Extrusion Lamp RGBW Black Housing
|
|
|
- | ||
| E45-4B560-1 |
86" Aluminum Extrusion Lamp RGBW Black Housing
|
|
|
- | ||
| E45-ALU0-1 |
Mounting Channel
|
|||||
| E45-BBP01-1 |
6 LED Premium 7IN Al Extrusion Lamp Blue Black Housing
|
 |
|
|||
| E45-BBP02-1 |
12 LED Premium 11.5" Aluminum Extrusion Lamp Blue Black Housing
|
|
|
|||
| E45-BD20-1 |
Al Extrusion Black Housing Clip Mount Dual 11.5IN Blu LED 12IN PigTl
|
|
|
|||
| E45-BD2D-1 |
Al Extrusion Black Housing Clip Mount Dual 11.5IN Blu LED 12PigTl W/Delphi Conn
|
|
|
|||
| E45-BWB04V-1 |
8IN Al Extrusion Lamp Blue White Black Housing VHB
|
|
|
|||
| E45-BWB28V-1 |
44IN Al Extrusion Lamp Blue White Black Housing VHB
|
|
|
|||
| E45-BWB38V-1 |
59IN Al Extrusion Lamp Blue White Black Housing VHB
|
|
|
|||
| E45-W010-1 |

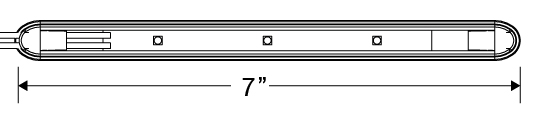

3 LED 7" Aluminum Extrusion Lamp White Black Housing
|
|
|
- | ||
| E45-W010X-1 |
3 LED 7" Aluminum Extrusion Lamp White Black Housing W/Dual Wire
|
|
|
Dual Pigtail | ||
| E45-W01F-1 |
White 3LED Black Aluminum Extrusion 7in w DTM04-2P Connector
|
|
|
DTM04-2P | ||
| E45-W020-1 |

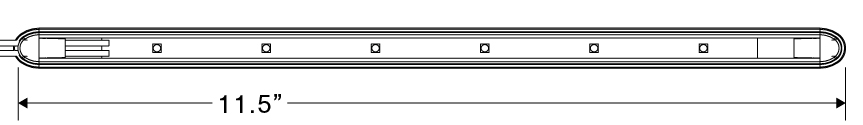

6 LED 11.5" Aluminum Extrusion Lamp White Black Housing
|
|
|
- | ||
| E45-W020B-1 |
White 6LED 11.5IN Black Housing Aluminum Extrusion 8.5IN Lead W/.180IN Bullets
|
|
|
0.180" Bullets (8.5") | ||
| E45-W020X-1 |
6 LED 11.5" Aluminum Extrusion Lamp White Black Housing W/Dual Wire
|
|
|
Dual Pigtail | ||
| E45-W02F-1 |
White 6LED Black Aluminum Extrusion 11.5in w DTM04-2P Connector
|
|
|
DTM04-2P | ||
| E45-W02V0-1 |
Al Extrusion Lt 11.5IN Wht 6LED Black Housing VHB PgTl
|
|
|
|||
| E45-W02VB-1 |
Wht 6LED 11.5IN Blk Housing Al Extrusion VHB 8.5IN PgTl 180IN Bullets
|
|
|
|||
| E45-W050-1 |

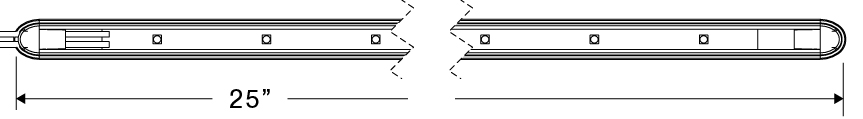

15 LED 25" Aluminum Extrusion Lamp White Black Housing
|
|
|
- | ||
| E45-W050B-1 |
White 15LED 25IN Black Housing Aluminum Extrusion 8.5IN Lead W/.180IN Bullets
|
|
|
0.180" Bullets (8.5") | ||
| E45-W050X-1 |
15 LED 25" Aluminum Extrusion Lamp White Black Housing W/Dual Wire
|
|
|
Dual Pigtail | ||
| E45-W05V0-1 |
Al Extrusion Lt 25IN Wht 15LED Black Housing VHB PgTl
|
|
|
|||
| E45-W05VB-1 |
Wht 15LED 25IN Blk Housing Al Extrusion VHB 8.5IN PgTl 180IN Bullets
|
|
|
|||
| E45-W080-1 |
24 LED 38.5" Aluminum Extrusion Lamp White Black Housing
|
|
|
- | ||
| E45-W080B-1 |
White 24LED 38.5IN Black Housing Aluminum Extrusion 8.5IN Lead W/.180IN Bullets
|
|
|
0.180" Bullets (8.5") | ||
| E45-W080X-1 |
24 LED 38.5" Aluminum Extrusion Lamp White Black Housing dual wires
|
|
|
- | ||
| E45-W100-1 |

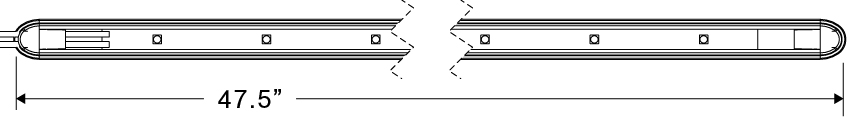

30 LED 47.5" Aluminum Extrusion Lamp White Black Housing
|
|
|
- | ||
| E45-W100X-1 |
30 LED 47.5" Aluminum Extrusion Lamp White Black Housing W/Dual Wire
|
|
|
Dual Pigtail | ||
| E45-W10V0-1 |
Al Extrusion Lt 47.5IN Wht 30LED Black Housing VHB PgTl
|
|
|
|||
| E45-W120X-1 |
36 LED 57in Aluminum White Light
|
|
|
Dual Pigtail | ||
| E45-WBP01-1 |
6 LED Premium 7" Aluminum Extrusion Lamp White Black Housing
|
|
|
- | ||
| E45-WBP01X-1 |
6 LED Premium 7" Aluminum Extrusion Lamp White Black Housing W/Dual Wire
|
|
|
Dual Pigtail | ||
| E45-WBP02-1 |
12 LED Premium 11.5" Aluminum Extrusion Lamp White Black Housing
|
|
|
- | ||
| E45-WBP02VB-1 |
Wht 12LED 11.5IN Blk Housing Al Extrusion VHB 8.5IN PgTl 180IN Bullets
|
|
|
|||
| E45-WBP02X-1 |
12 LED Premium 11.5" Aluminum Extrusion Lamp White Black Housing W/Dual Wire
|
|
|
Dual Pigtail | ||
| E45-WBP05-1 |
30 LED Premium 25" Aluminum Extrusion Lamp White Black Housing
|
|
|
- | ||
| E45-WBP05VB-1 |
Wht 30LED 25IN Blk Housing Al Extrusion VHB 8.5IN PgTl 180IN Bullets
|
|
|
|||
| E45-WBP05X-1 |
30 LED Premium 25" Aluminum Extrusion Lamp White Black Housing W/Dual Wire
|
|
|
Dual Pigtail | ||
| E45-WBP08-1 |
48 LED Premium 38.5" Aluminum Extrusion Lamp White Black Housing
|
|
|
- | ||
| E45-WBP08X-1 |
48 LED Premium 38.5" Aluminum Extrusion Lamp White Black Housing W/Dual Wire
|
|
|
Dual Pigtail | ||
| E45-WBP10-1 |
60 LED Premium 47.5" Aluminum Extrusion Lamp White Black Housing
|
|
|
- | ||
| E45-WBP10X-1 |
60 LED Premium 47.5" Aluminum Extrusion Lamp White Black Housing W/Dual Wire
|
|
|
Dual Pigtail | ||
| E45-WBP12-1 |

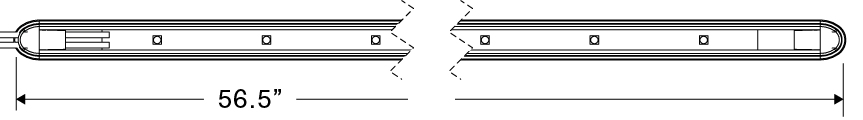

72 LED Premium 56.5" Aluminum Extrusion Lamp White
|
|
|
- | ||
| E45-WBP12X-1 |
72 LED Premium 57" Aluminum Extrusion Lamp White Black Housing w/ Dual Wire
|
|
|
Dual Pigtail |
