E41 Flexible Lighting Strips
E41 Flexible Lighting Strips
Technical Features
- Produces 150 lumens per 4.5" section (white)
- Ultra thin 3/16" strips surface mounts easily in tight spaces
- High flexibility conforms to irregular surfaces
- Easily installed with 3M adhesive tape backing or optional mounting channel (72")
- Reliable performance over 50,000 hours

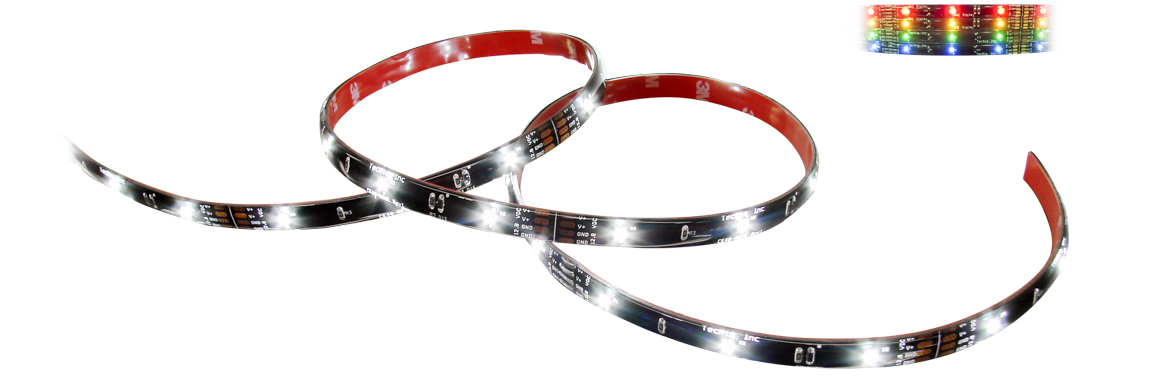

TecNiq's E41 Flexible Lighting, the options are endless. This ultra thin lighting easily mounts in tight spaces, on irregular surfaces and can be ordered in a variety of colors, lengths and terminations. A great way to adorn any vehicle, trailer, boat, or RV.

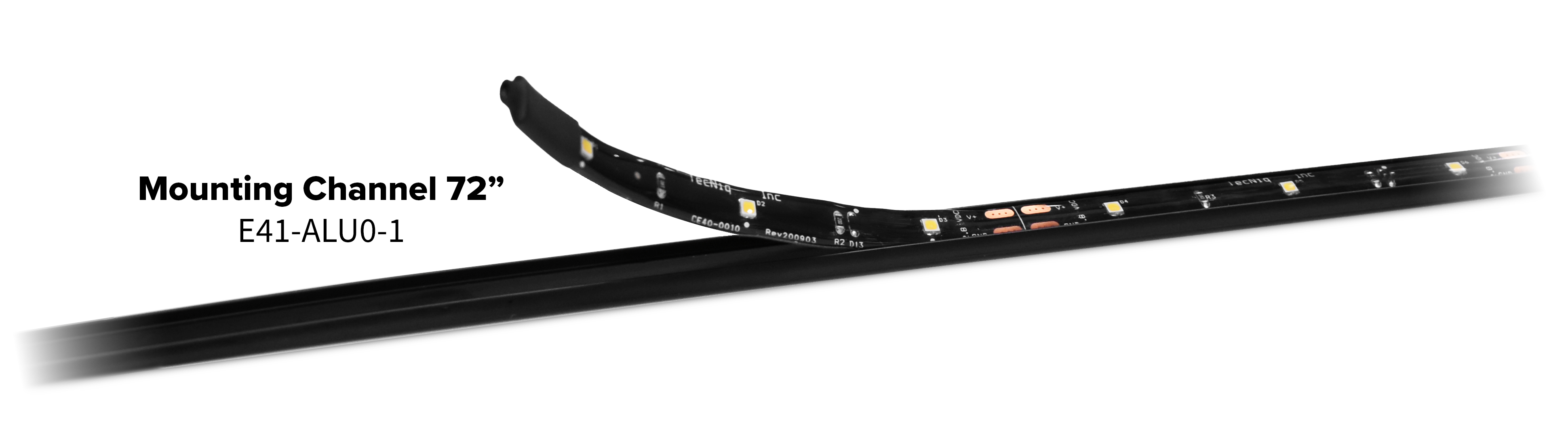

E41 Flexible Lighting comes standard with 3M tape for ease of installation. If you prefer not to use adhesion for attachment, add Mounting Channel 72". The E41 snaps into place in the cut-to-length channeling. Mounting Channel 72" is offered in packs of 25 and does not include mounting hardware.
E41 Flexible Lighting comes standard with 3M tape for ease of installation. If you prefer not to use adhesion for attachment, add Mounting Channel 72". The E41 snaps into place in the cut-to-length channeling. Mounting Channel 72" is offered in packs of 25 and does not include mounting hardware.
| Dimensions |
|
| LEDs | 3 / section |
| Lumens | 150 / section (white) |
| Voltage | 9-14VDC |
| Current |
0.41A-0.50A / 6ft - blue/green 0.58A-0.70A / 6ft - red/amber 0.75A-0.91A / 6ft - white |
| Connectors | Made to order |
| Mounting | Mounts with secure 3M tape or mounting channel 72" (hardware not included) |
| LED Colors | White • Blue • Green • Red • Amber • Color Changing RGB |
| Angle |
|
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E41-000V-1 |
2 wire termination
|
- | ||||
| E41-A010-1 |
Flexible LED Light Amber 4.5" - No Wire
|
 |
 |
- | ||
| E41-ALU0-1 |
AL Mounting Channel 72IN
|
25 | ||||
| E41-B010-1 |
Flexible LED Light Blue 4.5" - No Wire
|
 |
|
- | ||
| E41-G010-1 |
Flexible LED Light Green 4.5" - No Wire
|
 |
|
- | ||
| E41-G37V-1 |
Flexible LED Light Green 166.5" - Single Wire
|
|
|
- | ||
| E41-R010-1 |
Flexible LED Light Red 4.5" - No Wire
|
 |
|
- | ||
| E41-W010-1 |
Flexible LED Light White 4.5" - No Wire
|
 |
|
- | ||
| E41-W18E-1 |
Flexible LED Light White Single 81" Sheathed Wire
|
|
|
- |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
