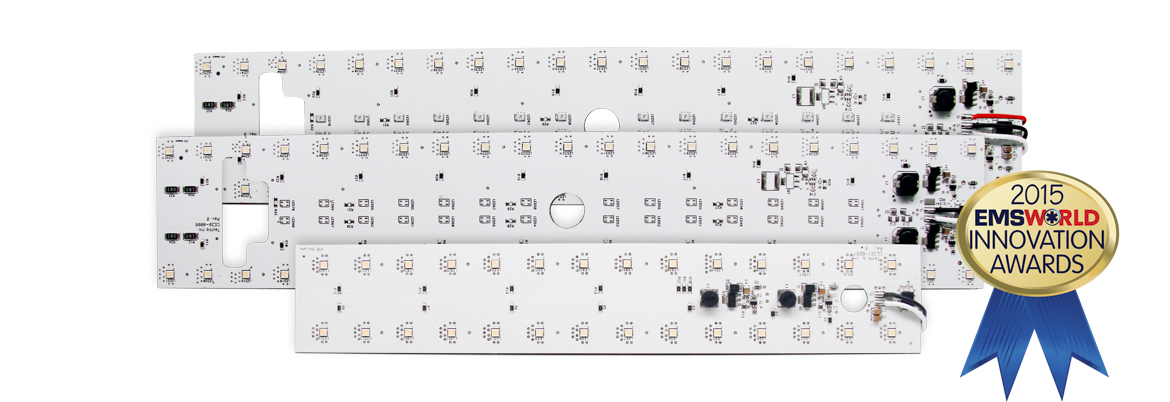

E39 Fluorescent Light LED Conversion Kit
E39 Fluorescent Light LED Conversion Kit
Technical Features
- Winner of the 2015 EMS World Innovation Award
- LED replacement for fluorescent lighting fixture
- Long lasting: 50,000 hour service life
- Bright: 700 Lumens (12")
1400 Lumens (18") - WIRE COLORS
Black – Ground, White – Positive, Red (red/white model) – Red LEDs
TecNiq's E3X Our LED conversion kit for fluorescent lighting fixtures is the perfect long-term solution if you are looking for the same high quality lighting of TecNiq products, but want to keep the same look and feel of recessed fluorescent lighting.All E3X lights give off 180° of high-output, diffuse, glare-free light to provide comfortable illumination for indoor living spaces.
| Dimensions |
12"x 2.00"x 0.05" - (E39-L010-1)
18"x 2.75"x 0.05" - (E39-L000-1)
|
| LEDs | 28 or 42 + 28 Red (optional) |
| Lumens |
700 - (12" Model) 1400 - (18" Model) |
| Voltage | 9-14VDC |
| Current |
1.37A-1.86A - (12" Model) 2A-2.68A - (18" Model) +0.35A-0.48A - red (optional) |
| Connectors | 9" |
| Mounting |
Easily installed with adhesive backing.
|
| LED Colors | White • White/Red |
| Angle |
|
| Wire Colors |
Black - Ground White - Positive Red (red/white model) - Red LEDs |
| Ground | Black |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E39-L000-1 |
LED Neutral White Light Replacement Kit for P716 and P718
|
 |
 |
10 | Pigtail | |
| E39-L00R-1 |
LED Neutral White/Red Combo Light Repl Kit for P716 and P718
|
 |
|
10 | Pigtail | |
| E39-L010-1 |
LED Neutral White Light Replacement Kit for 712XL
|
|
|
10 | Pigtail | |
| E39-M000-1 |
LED White Light Replacement Kit for P716 and P718
|
 |
|
10 | Pigtail | |
| E39-M00R-1 |
LED White/Red Combo Light Replacement Kit for P716 and P718
|
|
|
10 | Pigtail |
