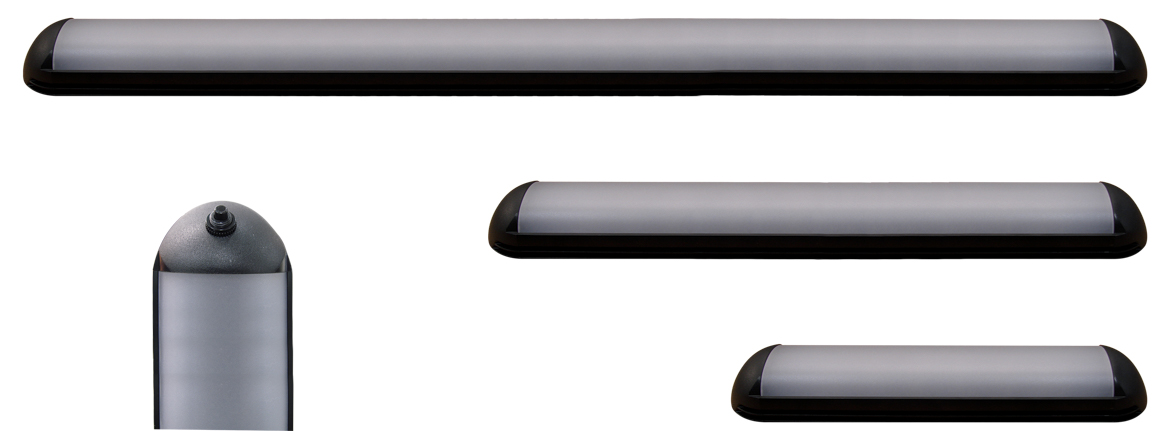

E35 E36 E38 High Output Linear LED Area Light
E35 E36 E38 High Output Linear LED Area Light
Technical Features
- Slim light design, perfect for under counter applications
- Reliable performance over 50,000 hours
- Bright: 750 Lumens (13"); 1500 Lumens (20"); 3000 Lumens (35")
- Shock proof and moisture-resistant construction
- Easy replacement for fluorescent light fixtures
- 180° wide light-beam illuminates large area
- Quick and easy mounting with two screws
- WIRE COLORS
White – Ground, Black – Positive
TecNiq's E3X Series lamps are a perfect replacement for fluorescent lights of similar lengths. The simplified design allows for easy installation. And, unlike fluorescents, there are no bulbs to burn out, no ballasts to fail, and virtually no sensitivity to shock and vibration.

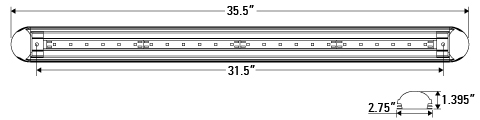

| Dimensions |
|
| LEDs | 9 / 18 / 36 |
| Lumens | 545 / 1500 / 3000 |
| Voltage | 9-14V DC (24V models available) |
| Current |
Current @12V: 0.47A-0.58A - E35 1.05A-1.28A - E36 1.88A-2.29A - E38 Current @24V: 0.24A-0.29A - E35 0.53A-0.64A - E36 0.94A-1.15A - E38 |
| Connectors | 9" |
| Mounting | Surface mount using (2) #10 or #12 screws hidden by the lens |
| LED Colors | White • Neutral White • Warm White |
| Angle |
|
| Wire Colors |
White - Ground Black - Positive |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E35-LB00-1 |
Linear LED SM Light Neutral White Black Body 9W
|
 |
 |
20 | Sheathed Pigtail | |
| E35-LB0S-1 |
Linear LED SM Light Neutral White Black Body 9W w/Switch
|
|
|
20 | Sheathed Pigtail | |
| E35-MB00-1 |
Linear LED SM Light Warm White Black Body 9W
|
 |
|
20 | Sheathed Pigtail | |
| E35-WB00-1 |
Linear LED SM Light White Black Body 9W
|
 |
|
20 | Sheathed Pigtail | |
| E35-WB0S-1 |
Linear LED SM Light White Black Body 9W w/Switch
|
|
|
20 | Sheathed Pigtail | |
| E35-WB24-1 |
Linear LED SM Light White Black Body 9W 24V
|
|
|
20 | Sheathed Pigtail | |
| E36-LB00-1 |
Linear LED SM Light Neutral White Black Body 18W
|
|
|
20 | Sheathed Pigtail | |
| E36-LB0S-1 |
LED SM Light Neutral White Black Body 18W w/Switch
|
|
|
20 | Sheathed Pigtail | |
| E36-LB24-1 |
Linear LED SM Light Neutral White Black Body 18W 24V
|
|
|
20 | Sheathed Pigtail | |
| E36-MB00-1 |
Linear LED SM Light Warm White Black Body 18W
|
|
|
20 | Sheathed Pigtail | |
| E36-WB00-1 |
Linear LED SM Light White Black Body 18W
|
|
|
20 | Sheathed Pigtail | |
| E36-WB0S-1 |
Linear LED SM Light White Black Body 18W w/Switch
|
|
|
20 | Sheathed Pigtail | |
| E36-WB24-1 |
Linear LED SM Light White Black Body 18W 24V
|
|
|
20 | Sheathed Pigtail | |
| E38-LB00-1 |
Linear LED SM Light Neutral White Black Body 36W
|
|
|
10 | Sheathed Pigtail | |
| E38-LB0S-1 |
Linear LED SM Light Neutral White Black Body 36W w/Switch
|
|
|
10 | Sheathed Pigtail | |
| E38-LB24-1 |
Linear LED SM Light Neutral White Black Body 36W 24V
|
|
|
10 | Sheathed Pigtail | |
| E38-MB00-1 |
Linear LED SM Light Warm White Black Body 36W
|
|
|
10 | Sheathed Pigtail | |
| E38-WB00-1 |
Linear LED SM Light White Black Body 36W
|
|
|
10 | Sheathed Pigtail | |
| E38-WB0S-1 |
Linear LED SM Light White Black Body 36W w/Switch
|
|
|
10 | Sheathed Pigtail | |
| E38-WB24-1 |
Linear LED SM Light White Black Body 36W 24V
|
|
|
10 | Sheathed Pigtail |
