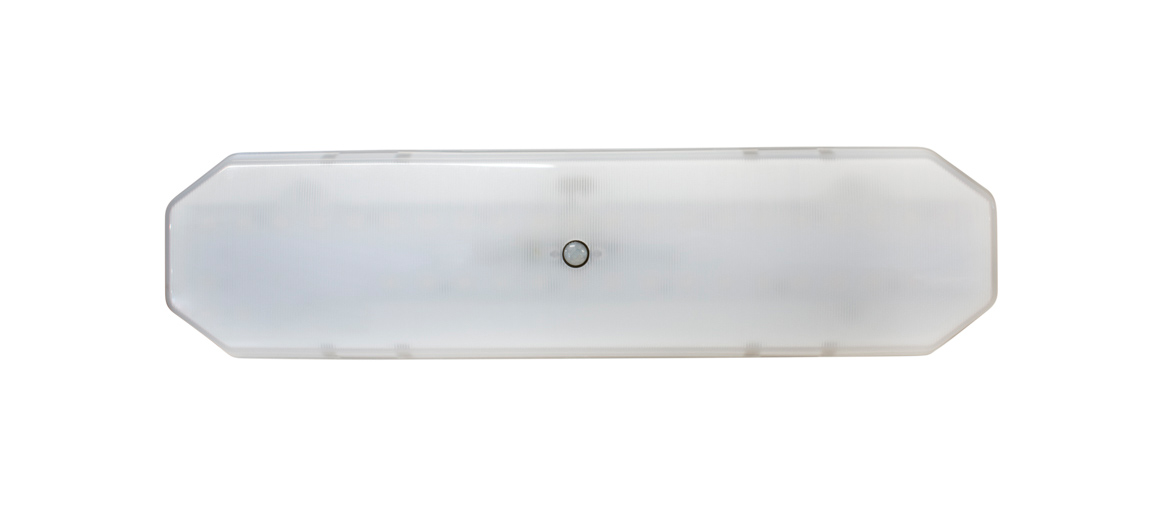

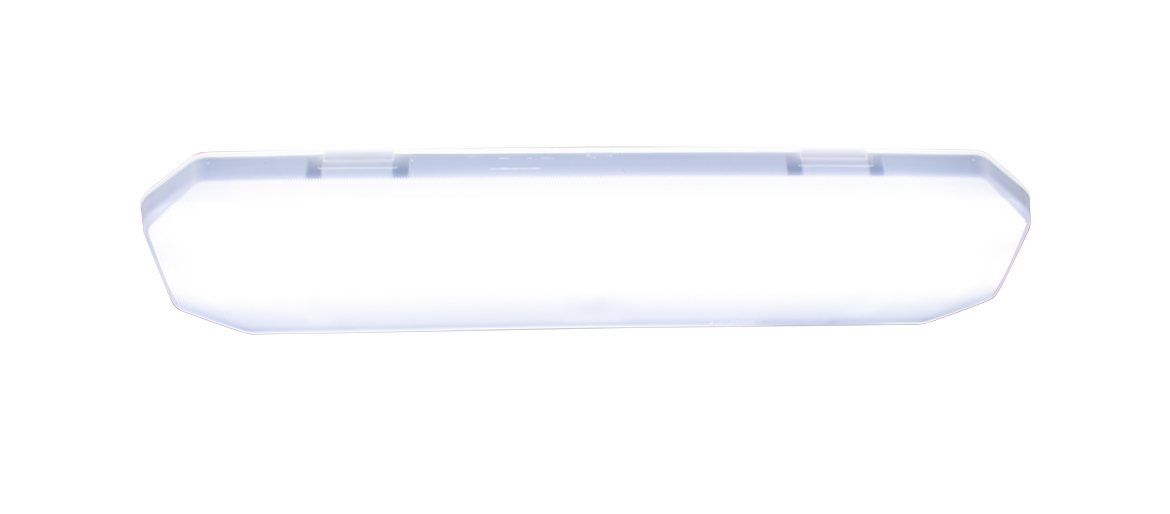

E32 Surface Mounted Interior Light
E32 Surface Mounted Interior Light
Technical Features

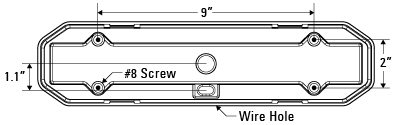

- Easy to install - Just need a 1/4" hole for the wire feed, and four screws
- Lens/Cover snaps on securely - giving a great looking light, no visible fasteners

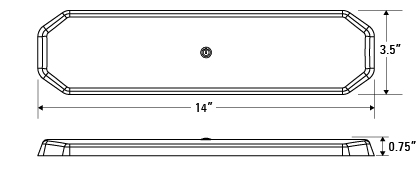

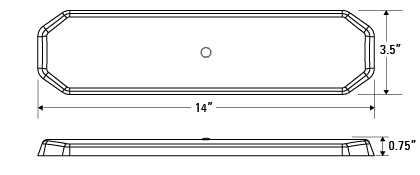

- Available in three models - Standard, ON/OFF Button, & Motion Detector Model for Auto ON/OFF function
- Light base is powder coated white for excellent corrosion resistance
- Massive amount of lumens for a 14" light - 2200 lumens This is huge compared to other similar solutions on the market
- WIRE COLORS
White – Ground, Black – Positive
TecNiq's E32 surface mount lighting solution makes installation easy. At 14" with 2200 lumens it ranks amongst the brightest on the market, when compared to similar lights. With the ability to customize power options, a corrosion resistant base and smooth snap on lens, the E32 is a high quality interior lighting choice.

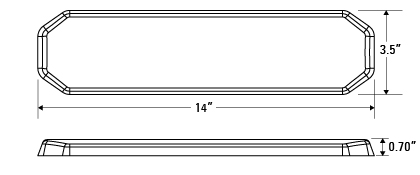

| Dimensions |
|
| LEDs | 42 |
| Lumens | 2200 Lumens |
| Voltage | 9-14VDC |
| Current | 1.36A - 1.84A |
| Connectors | 10.5" pigtail |
| Mounting | Mounts using (4) #8 screws |
| LED Colors | Neutral White |
| Angle |
|
| Wire Colors |
White - Ground Black -Positive |
| Ground | White |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E32-L000-1 |
Interior 4K White 42 LED Surface Mount Light
|
 |
 |
10 | Pigtail (12") | |
| E32-L00M-1 |
Interior 4K White 42 LED Surface Mount Light W/MD
|
|
|
10 | Pigtail (12") | |
| E32-L00S-1 |
Interior 4K White 42 LED Surface Mount Light W/Switch
|
|
|
10 | Pigtail (12") |
