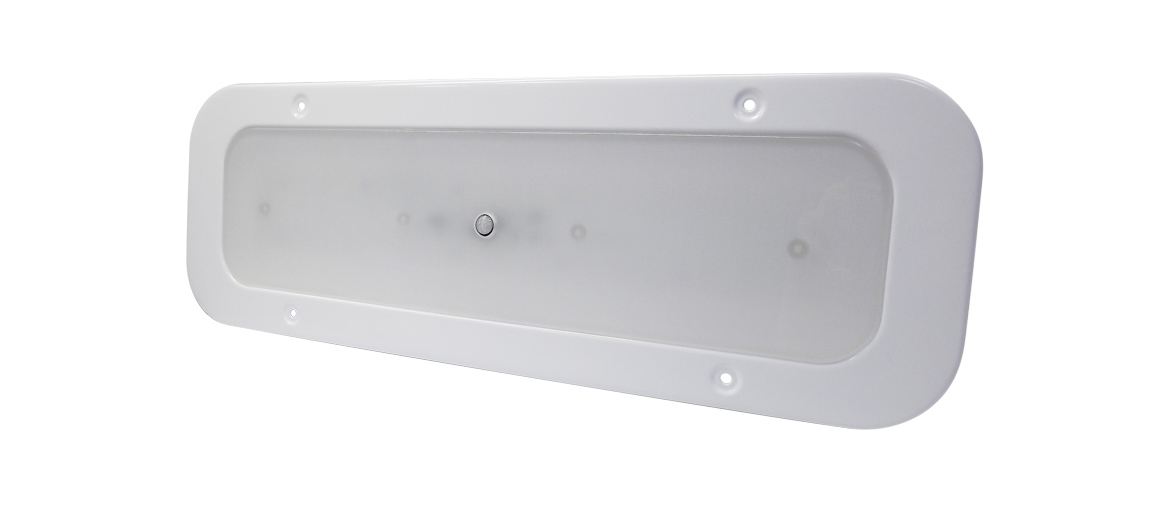

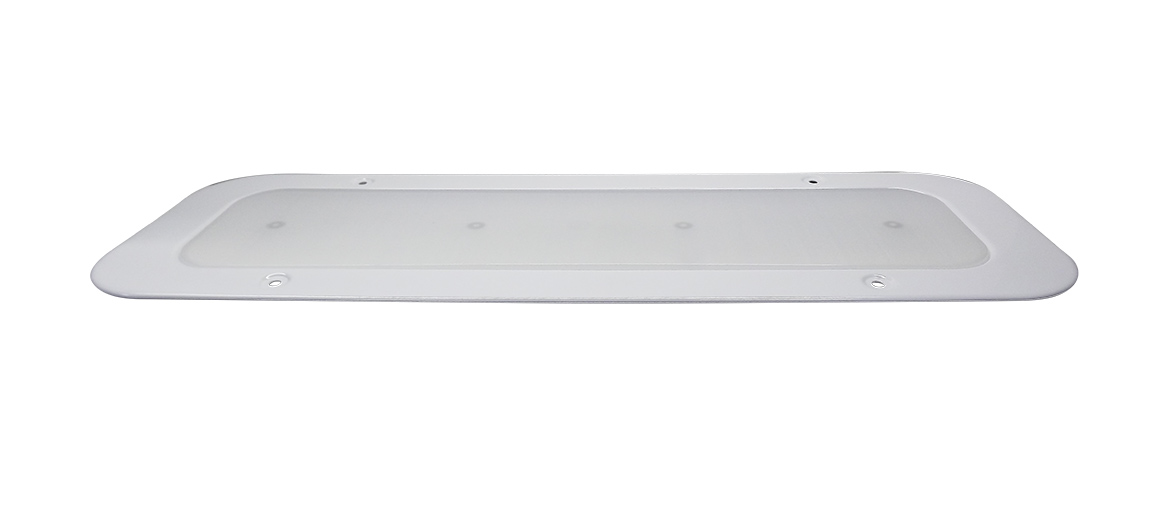

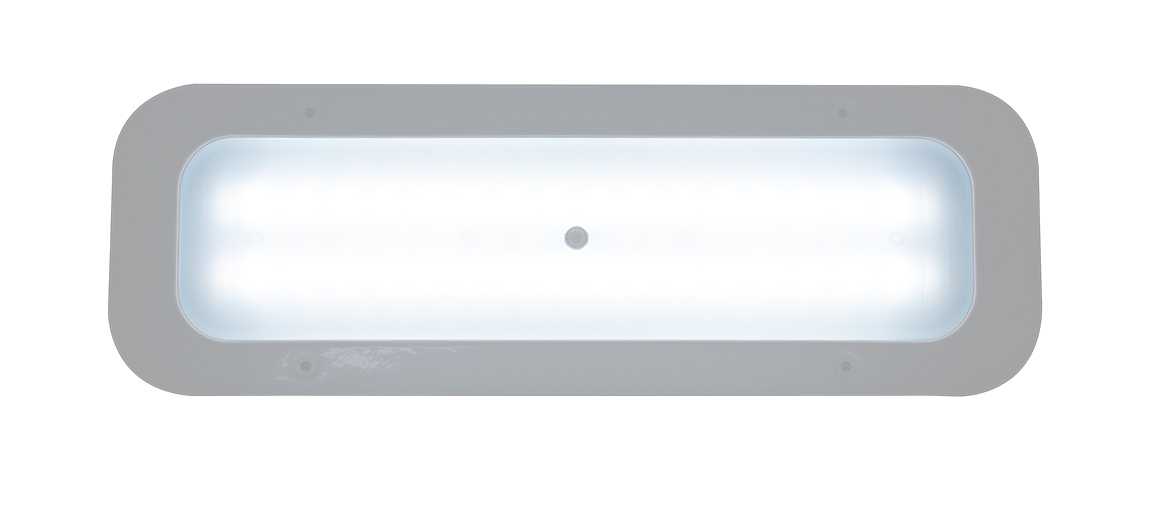

E31 High Performance Ceiling Light
E31 High Performance Ceiling Light
Technical Features
- New easy Installation Design
- Available with a motion detection sensor
- Moisture-resistant, vibration proof design
- NFPA and Triple K compliant
- Powerful 2100 lumen output
- Excellent replacement for fluorescent light fixtures
- White powder coated finish
- WIRE COLORS
White – Ground, Black – Positive
A unique and elegant design that includes top-end LEDs, urethane potting and military-grade circuit board material encased in extra thick polycarbonate that results in a tough, reliable lighting solution at an impressive price. There is also the option to add a rocker switch for added versatility. TecNiq uses next-generation LED's to provide bright illumination while remaining energy efficient. . Combine it with TecNiq's Accu-Color technology for a natural color balance and it is hard to ignore the value of this high performance unit. When you include TecNiq's AccuColor technology for color balance, you have an unbeatable combination of high-performance and value.

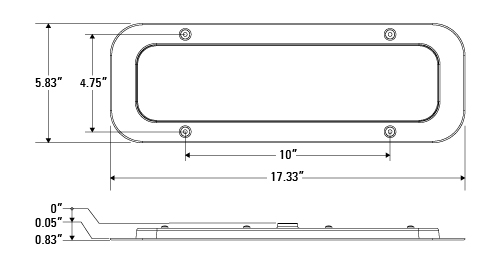

| Dimensions |
|
| LEDs | 32 |
| Lumens | 2100 Lumens |
| Voltage | 9-14VDC |
| Current | 1.49A - 1.82A |
| Connectors | 6" |
| Mounting | Mounts using (4) #10 screws |
| LED Colors | Neutral White |
| Angle |
|
| Wire Colors |
White - Ground Black -Positive |
| Ground | White |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E31-L00B-1 |
Recessed 4K White 32 LED Light 6"x17.5"
|
 |
 |
12 | Pigtail / 0.180" Bul | |
| E31-L0MB-1 |
Recessed 4K White 32 LED Light 6"x17.5" Motion Detection
|
|
|
12 | Pigtail / 0.180" Bul | |
| E31-L0MS-1 |
Recessed 4K White 32 LED Light 6"x17.5" Motion Detection w/ Spade Connector
|
|
|
12 | Pigtail / Spade Conn |
