E27 Surface Mount Dome Light - 3"
E27 Surface Mount Dome Light - 3"
Technical Features
- New surface mounted dome light - easy installation, requires 3/8" wire hole
- Bright: 175 Lumens
- Surface mounted design comes in 3" and 4.5" sizes
- Three mounting screws concealed by trim ring.
- Reliable performance over 50,000 hours
- WIRE COLORS
White – Ground, Black – Positive

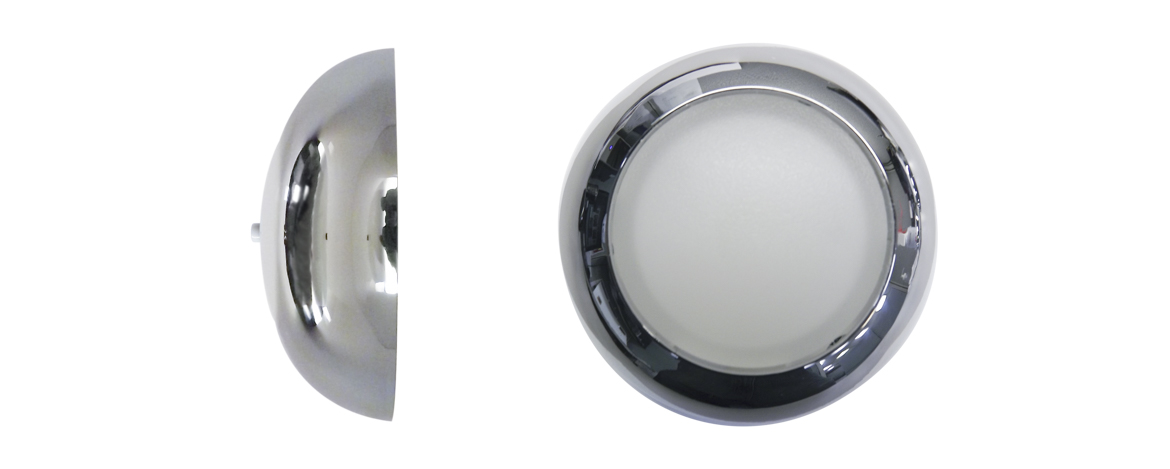

This clean, low profile surface mounted dome light features a sleek chrome trim and diffused lens. With optional on/off switch, color temperature choice and premium models available this solution allows customers to customize to their needs without compromising quality.

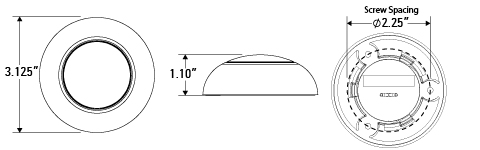

| Dimensions |
|
| LEDs | 3 |
| Lumens | 175 |
| Voltage | 9-14VDC |
| Current | 0.13A-0.15A |
| Connectors | 8" |
| Mounting | Surface Mounted |
| LED Colors | White • Warm White • Cool White |
| Angle |
|
| Wire Colors |
White - Ground Black -Positive |
| Ground | White |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E27-L000-1 |
3" Surface Mounted Dome Light Neutral White
|
 |
 |
10 | Sheathed Pigtail | |
| E27-M000-1 |
3" Surface Mounted Dome Light Warm White
|
 |
|
10 | Sheathed Pigtail | |
| E27-W000-1 |
3" Surface Mounted Dome Light Cool White
|
 |
|
10 | Sheathed Pigtail | |
| E28-L000-1 |
4.5" Surface Mounted Dome Light Neutral White
|
|
|
10 | Sheathed Pigtail | |
| E28-L0S0-1 |
Surface Mounted Dome Light Neutral White w/ Switch
|
|
|
10 | Sheathed Pigtail | |
| E28-LP00-1 |
4.5" Surface Mounted Premium Dome Light Neutral White4.5 S
|
|
|
10 | Sheathed Pigtail | |
| E28-LP0B-1 |
4.5" SM Premium Dome Light Neutral White w 180 Bullets
|
|
|
10 | Sheathed Pigtail / 0.180" Bul | |
| E28-LPS0-1 |
4.5" Surface Mounted Premium Dome Light Neut White w/ Switch
|
|
|
10 | Sheathed Pigtail | |
| E28-LPW00-1 |
4.5" Surface Mounted Premium Dome Light Neu White White Ring
|
|
|
10 | Sheathed Pigtail | |
| E28-M000-1 |
4.5" Surface Mounted Dome Light Warm White
|
|
|
10 | Sheathed Pigtail | |
| E28-M0S0-1 |
4.5" Surface Mounted Dome Light Warm White w/ Switch
|
|
|
10 | Sheathed Pigtail | |
| E28-MP00-1 |
4.5" Surface Mounted Premium Dome Light Warm White
|
|
|
10 | Sheathed Pigtail | |
| E28-MPS0-1 |
4.5" Surface Mounted Premium Dome Light Warm White w/Switch
|
|
|
10 | Sheathed Pigtail | |
| E28-W000-1 |
4.5" Surface Mounted Dome Light Cool White
|
|
|
10 | Sheathed Pigtail | |
| E28-W0S0-1 |
4.5" Surface Mounted Dome Light Cool White w/ Switch
|
|
|
10 | Sheathed Pigtail | |
| E28-WP00-1 |
4.5" Surface Mounted Premium Dome Light Cool White
|
|
|
10 | Sheathed Pigtail | |
| E28-WPS0-1 |
4.5" Surface Mounted Premium Dome Light Cool White w/ Switc
|
|
|
10 | Sheathed Pigtail |
