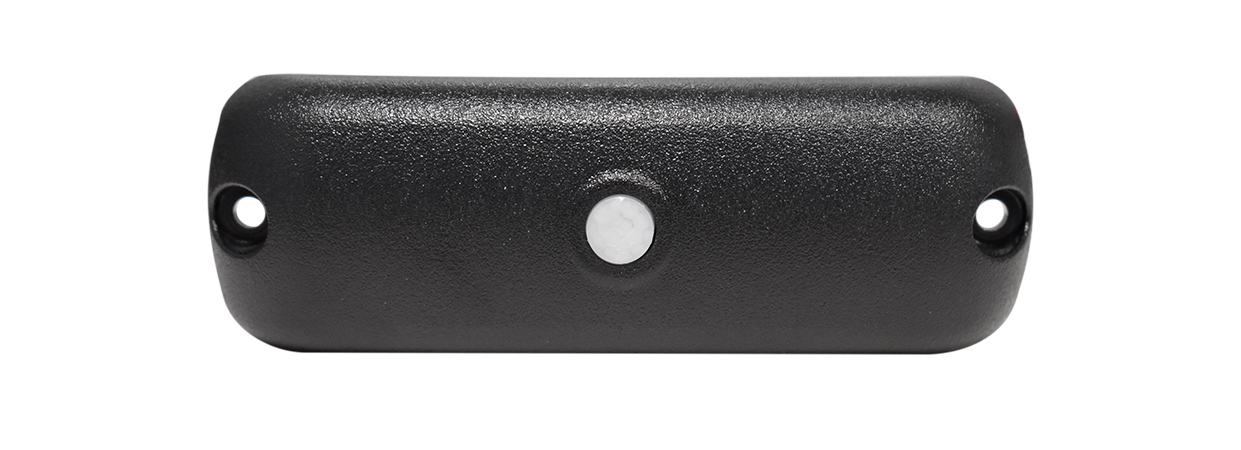

E22 Motion Detection Sensor
E22 Motion Detection Sensor
Technical Features
- Convert existing lighting to motion activation
- Great for step-in vans, and other delivery truck applications
- Surface mounts horizontally, vertically, or at a 45° angle
- Max current limit of 10Amps
- Available in Black or White housing
- Waterproof design, with sealed body and potted wiring
- WIRE COLORS
Black – Ground, Red – Positive, White – Device Power Output
The E22 Motion Detector Sensor is a great addition to delivery trucks, walk in vans, trailers, and more. Convert existing lighting into motion detectable lighting with ease. Surface mounted horizonatlly, vertically, or even at a 45 degree angle. The E22 has a max current limit of 10Amps, and is available with black or white housing. The body has a waterproof design, with sealed an potted wiring - with an idle current draw of 4.3mA.
Related Products

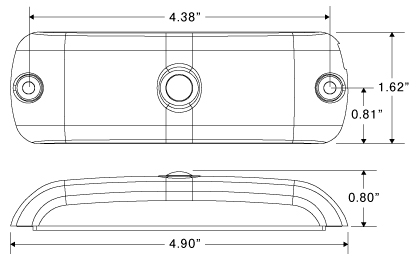

| Dimensions |
|
| Voltage | 9-14VDC |
| Current | Max Current Draw 10Amps |
| Connectors | 9" |
| Mounting | Surface Mounted |
| Wire Colors |
Black Wire - Ground White Wire - Output Red Wire - Positive |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E22-XB00-1 |
Interior Motion Sensor Light Controller Black
|
 |
Pigtail (9") | |||
| E22-XW00-1 |
Interior Motion Sensor Light Controller White
|
 |
Pigtail (9") | |||
| E22-XW0F-1 |
Interior Motion Sensor Light Controller White W xTM06-3S
|
|
