E18 High Output Utility Light
E18 High Output Utility Light
Technical Features
- E18 meets the Ignition Protection Test requirements of ISO 8846, the USCG, stated in Title 33 CFR 183.410 and the SAE J1171 Standard
- Surface mounted for ease of installation - requires one 3/8" wire hole
- Vibration proof, moisture-resistant design
- Reliable performance over 50,000 hours
- Lamp output of 800 lumens
- Made with high grade polycarbonate, for excellent optic quality and impact resistance
- WIRE COLORS
White – Ground, Black – Positive

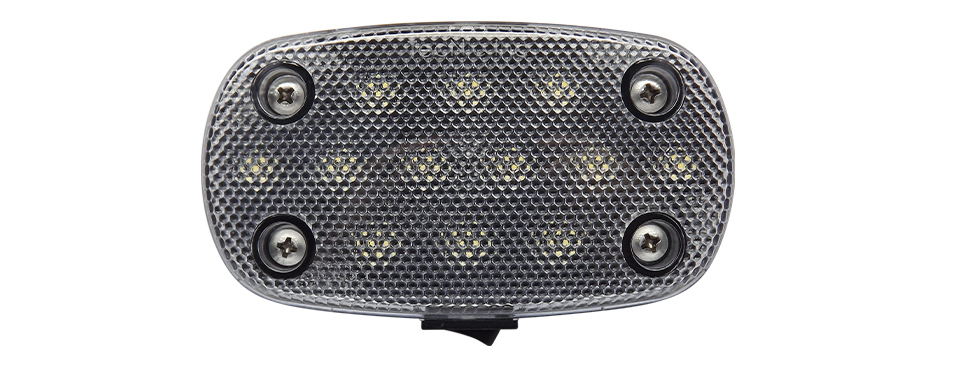

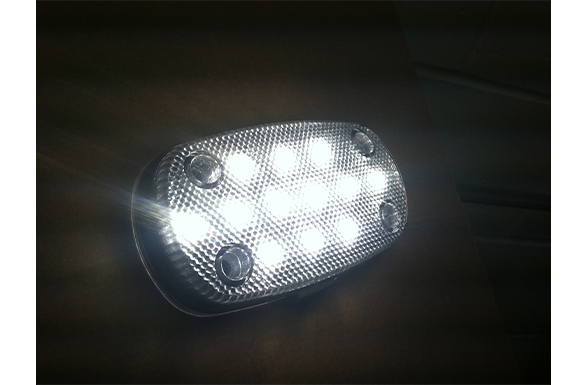

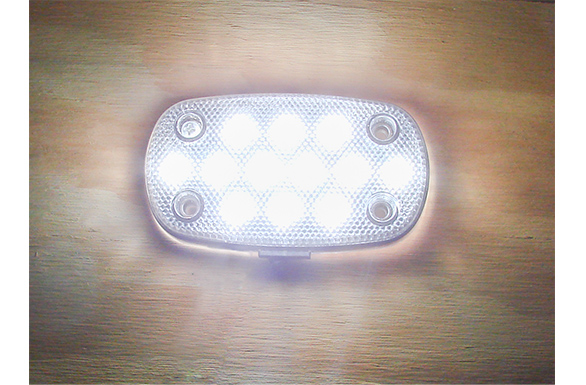

Introducing the new LED Cargo & Area light from TecNiq Inc. The new light packs 800 lumens of brightness into a small 2½" x 4 ½" foot print. This great looking light is designed to provide years of bright illumination at a competitive price.

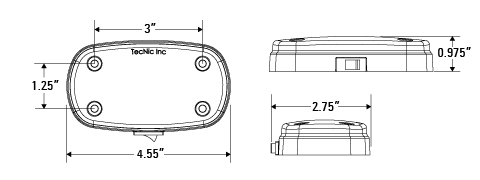

| Dimensions |
|
| LEDs | 12 |
| Lumens | 800 |
| Voltage | 9-14VDC |
| Current | 0.54A-0.66A |
| Connectors | 8" |
| Mounting | Surface mount using (4) #10 screws |
| LED Colors | White • Neutral White |
| Angle |
|
| Wire Colors |
White - Ground Black -Positive |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E18-LC00-1 |
12 LED Neutral White Dome Light
|
 |
 |
10 | Sheathed Pigtail | |
| E18-LCS0-1 |
12 LED Neutral White Dome Light with Switch
|
|
|
10 | Sheathed Pigtail | |
| E18-LCSB-1 |
12 LED Neutral White Dome Light with Switch & .180 Bullets
|
|
|
10 | Sheathed Pigtail | |
| E18-WC00-1 |
12 LED White Dome Light
|
 |
|
10 | Sheathed Pigtail | |
| E18-WCS0-1 |
12 LED White Dome Light with switch
|
|
|
10 | Sheathed Pigtail |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
