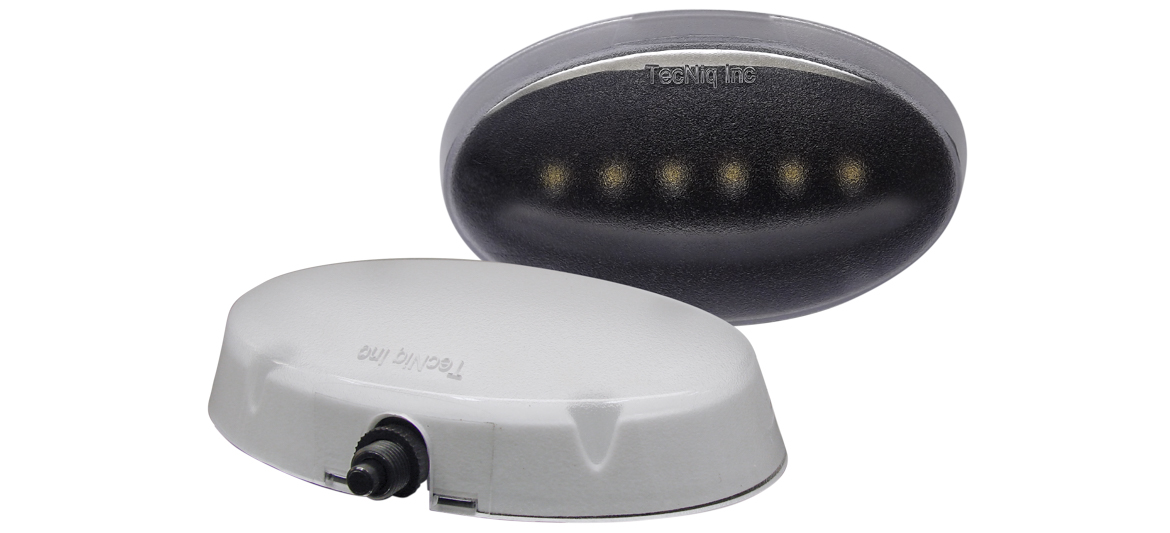

E16 High Output Dome Light
E16 High Output Dome Light
Technical Features
- Lamp features six high efficiency LEDs, providing over 300 lumens
- Sleek and stylish surface mount design
- Available with or without integrated ON/OFF switch
- Installs with just 4 screws hidden behind lens
- White or black base available
- WIRE COLORS
Black – Ground, White – Positive
The E16 interior is a compact, easy to install, surface-mounted interior LED dome light that is both attractive and affordable. Available with or without a switch, plus three different color temperatures to choose from. It's compact size and modern styling allows this light to easily conform to your needs, and it's backed with our lifetime warranty.

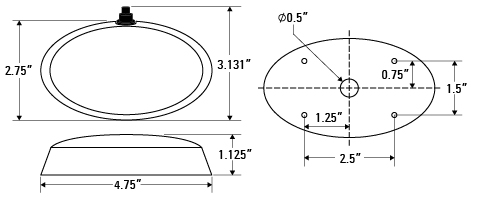

| Dimensions |
|
| LEDs | 6 |
| Lumens | 300 |
| Voltage | 9-14VDC |
| Current | 0.18A-0.23A |
| Connectors | 9" |
| Mounting | Surface mount using (4) #6 screws hidden by the lens |
| LED Colors | White • Warm White • Cool White |
| Angle |
|
| Wire Colors |
Black - Ground White - Positive |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E16-LB00-1 |
E16 Interior SM Neutral White Oval Light Black Base
|
 |
 |
20 | Sheathed Pigtail | |
| E16-LBS0-1 |
E16 Interior SM Neutral White Oval Light Black Base w/Switch
|
|
|
20 | Sheathed Pigtail | |
| E16-LW00-1 |
E16 Interior SM Neutral White Oval Light White Base
|
|
|
20 | Sheathed Pigtail | |
| E16-LWS0-1 |
E16 Interior SM Neutral White Oval Light White Base w/Switch
|
|
|
20 | Sheathed Pigtail | |
| E16-MW00-1 |
E16 Interior SM Warm White Oval Light White Base
|
 |
|
20 | Sheathed Pigtail | |
| E16-MWS0-1 |
E16 Interior SM Warm White Oval Light White Base w/Switch
|
|
|
20 | Sheathed Pigtail | |
| E16-WB00-1 |
E16 Interior SM White Oval Light Black Base
|
 |
|
20 | Sheathed Pigtail | |
| E16-WBS0-1 |
E16 Interior SM White Oval Light Black Base w/Switch
|
|
|
20 | Sheathed Pigtail | |
| E16-WW00-1 |
E16 Interior SM White Oval Light White Base
|
|
|
20 | Sheathed Pigtail | |
| E16-WWS0-1 |
E16 Interior SM White Oval Light White Base w/Switch
|
|
|
20 | Sheathed Pigtail |
