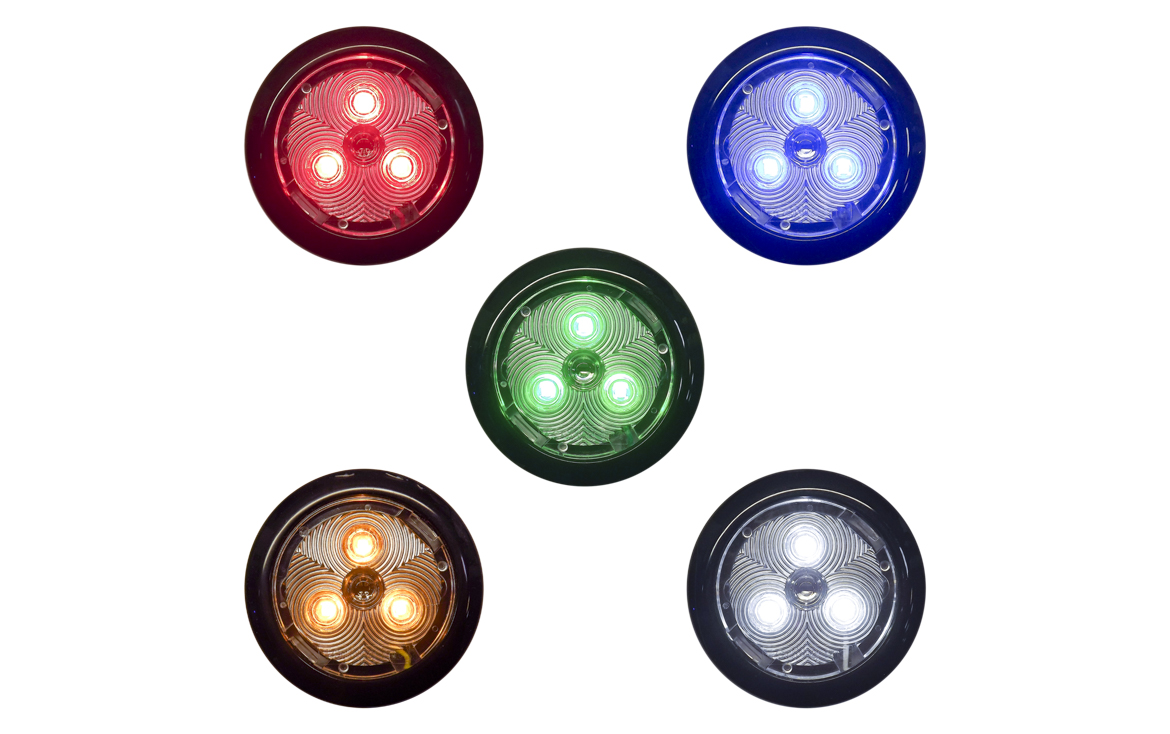

E13 Accent Silho-X Accent Light - 2.75"
E13 Accent Silho-X Accent Light - 2.75"
Technical Features
- Available in Black or White colored light body
- Shock proof and moisture-resistant design
- Reliable performance over 100,000 hours (color), 50,000 hours for white
- Easy installation using just two #4 screws, neatly hidden behind lens
- WIRE COLORS
Black – Ground, White – Positive, Red (red/white model) – Red LEDs
While only 3/8" thick, the E13's ultra-efficient lens provides a bright and even distribution of light. Cool to the touch, they are ideal for use for countertops, under cabinets and for illuminating work surfaces. Available in several LED colors, these lights are sure to provide years of maintenance-free service.
| Dimensions |
|
| LEDs | 3 |
| Voltage | 9-14VDC |
| Current |
0.025A-0.055A - white 0.03A-0.05A - red/amber 0.02A-0.03A - green/blue |
| Connectors | 9" |
| Mounting | Surface mount using (2) #4 flat-head screws hidden by the lens |
| LED Colors | Red • Amber • Green • Blue • White |
| Angle |
|
| Wire Colors |
Black - Ground White - Positive Red (red/white model) - Red LEDs |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E13-3S00-1 |
Silho-X 2.75" Round RGB Light SS Trim Ring
|
 |
 |
20 | Pigtail (9") | |
| E13-AB10-1 |
Silho-X 2.75" Round LP Amber Light - Black Trim Ring
|
 |
 |
20 | Pigtail (9") | |
| E13-AW10-1 |
Silho-X 2.75" Round LP Amber Light - White Trim Ring
|
|
|
20 | Pigtail (9") | |
| E13-BB10-1 |
Silho-X 2.75" Round LP Blue Light - Black Trim Ring
|
 |
|
20 | Pigtail (9") | |
| E13-BW10-1 |
Silho-X 2.75" Round LP Blue Light - White Trim Ring
|
|
|
20 | Pigtail (9") | |
| E13-GB10-1 |
Silho-X 2.75" Round LP Green Light - Black Trim Ring
|
 |
|
20 | Pigtail (9") | |
| E13-GW10-1 |
Silho-X 2.75" Round LP Green Light - White Trim Ring
|
|
|
20 | Pigtail (9") | |
| E13-LS00-1 |
Silho-X 2.75" Round Neutral White Light SS Trim Ring
|
 |
|
20 | Pigtail (9") | |
| E13-LS0R-1 |
Silho-X 2.75" Round Neutral White/Red Light SS Trim Ring
|
 |
|
20 | Pigtail (9") | |
| E13-MS00-1 |
Silho-X 2.75" Round Warm White Light SS Trim Ring
|
 |
|
20 | Pigtail (9") | |
| E13-MS0F-1 |
Silho-X 2.75" Round Warm White Light Diffuse Ln SS Trim Ring
|
|
|
20 | Pigtail (9") | |
| E13-MS0R-1 |
Silho-X 2.75" Round Warm White/Red Combo Light SS Trim Ring
|
 |
|
20 | Pigtail (9") | |
| E13-RB10-1 |
Silho-X 2.75" Round LP Red Light - Black Trim Ring
|
 |
|
20 | Pigtail (9") | |
| E13-RW10-1 |
Silho-X 2.75" Round LP Red Light - White Trim Ring
|
|
|
20 | Pigtail (9") | |
| E13-WB10-1 |
Silho-X 2.75" Round White Light Plastic Trim Ring Black
|
 |
|
20 | Pigtail (9") | |
| E13-WS00-1 |
Silho-X 2.75" Round White Light SS Trim Ring
|
|
|
20 | Pigtail (9") | |
| E13-WS0F-1 |
Silho-X 2.75" Round White Light Diffuse Lens SS Trim Ring
|
|
|
20 | Pigtail (9") | |
| E13-WS0R-1 |
Silho-X 2.75" Round White/Red Combo Light SS Trim Ring
|
 |
|
20 | Pigtail (9") | |
| E13-WW10-1 |
Silho-X 2.75" Round LP White Light - White Trim Ring
|
|
|
20 | Pigtail (9") |
