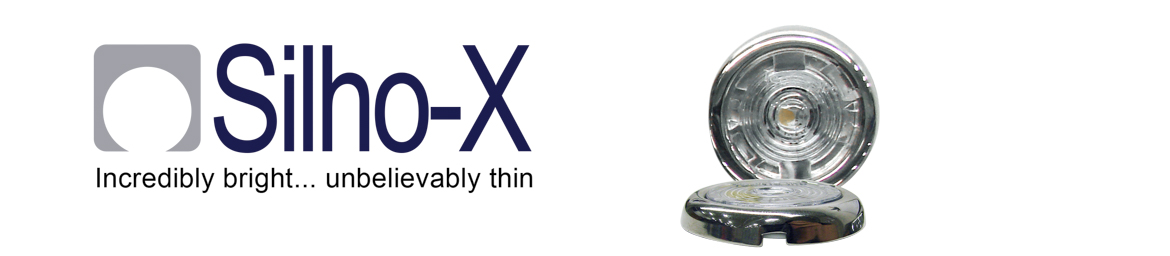

E11 Silho-X Area Light - 1.5"
E11 Silho-X Area Light - 1.5"
Technical Features
- Shock proof, moisture-resistant design
- Reliable performance over 50,000 hours
- Extremely bright: produces 100 lumens
- Easily installed using two #4 screws
- High-polished stainless steel trim with other finishes available
- WIRE COLORS
Black – Ground, White – Positive
The simplified, water-tight design, of TecNiq's E11 unique circuitry and ultra-efficient low-glare lenses make this product line unmatched by our competition in price vs. performance. Even more amazing is that all of these features are provided in a package that is less than 0.25" thick. TecNiq engineers leveraged their decades of experience in LED lighting to help develop these unbelievable area lights.
| Dimensions |
|
| LEDs | 1 |
| Lumens | 100 (white) |
| Voltage | 9-14VDC |
| Current |
0.07A-0.09A - white 0.04A-0.06A - red/amber 0.09A-0.12A - blue/green |
| Connectors | 9" or 36" |
| Mounting | Surface mount using (2) #4 flat-head screws hidden by the lens |
| LED Colors | White • Neutral White • Warm White • Red • Amber • Blue • Green |
| Angle |
|
| Wire Colors |
Black -Ground White - Positive |
| Ground | Black |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E11-AS01-1 |
Silho-X 1.5" Round Amber Light SS Trim Ring 36"
|
 |
 |
10 | Pigtail (36") | |
| E11-BS01-1 |
Silho-X 1.5" Round Blue Light SS Trim Ring 36"
|
 |
|
10 | Pigtail (36") | |
| E11-DS01-1 |
Silho-X 1.5" Round Deep Red Light SS Trim Ring 36"
|
 |
|
10 | Pigtail (36") | |
| E11-GS01-1 |
Silho-X 1.5" Round Green Light SS Trim Ring 36"
|
 |
|
10 | Pigtail (36") | |
| E11-LS00-1 |
Silho-X 1.5" Round Neutral White light SS Trim Ring
|
 |
|
10 | Pigtail (9") | |
| E11-MS00-1 |
Silho-X 1.5" Round Warm White Light SS Trim Ring
|
|
|
10 | Pigtail (9") | |
| E11-MS0F-1 |
Silho-X 1.5" Round Warm White Light Diffuse Ln SS Trim Ring
|
|
|
10 | Pigtail (9") | |
| E11-NS01-1 |
Silho-X 1.5" Round Orange Light SS Trim Ring 36"
|
 |
|
10 | Pigtail (36") | |
| E11-TS01-1 |
Silho-X 1.5" Round Teal Light SS Trim Ring 36"
|
 |
|
10 | Pigtail (36") | |
| E11-WS00-1 |
Silho-X 1.5" Round White Light SS Trim Ring
|
|
|
10 | Pigtail (9") | |
| E11-WS01-1 |
Silho-X 1.5" Round White Light SS Trim Ring 36"
|
|
|
10 | Pigtail (36") | |
| E11-WS0F-1 |
Silho-X 1.5" Round White Light Diffuse Ln SS Trim Ring
|
|
|
10 | Pigtail (9") |
