E100 Pole High Intensity Scene Light w/ Pole Mount
E100 Pole High Intensity Scene Light w/ Pole Mount
Technical Features

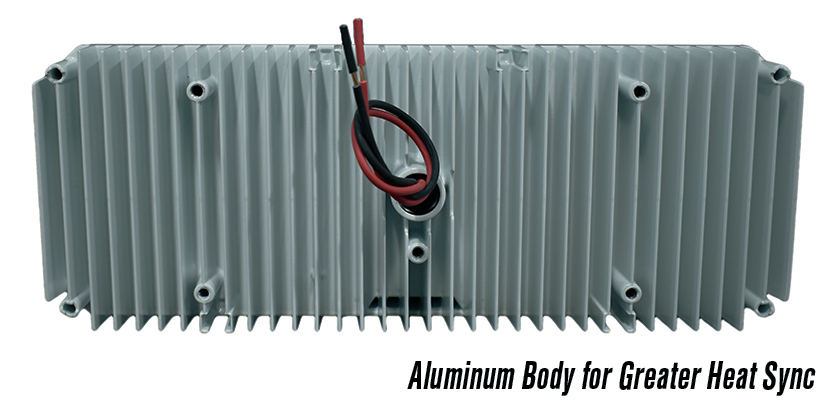

- Fully sealed, aluminum constructed housing allows for a completely submersible light
- Over 30,000 source lumens with flood distribution for optimal scene visibility
- Low electrical noise, keeps radio interference minimal

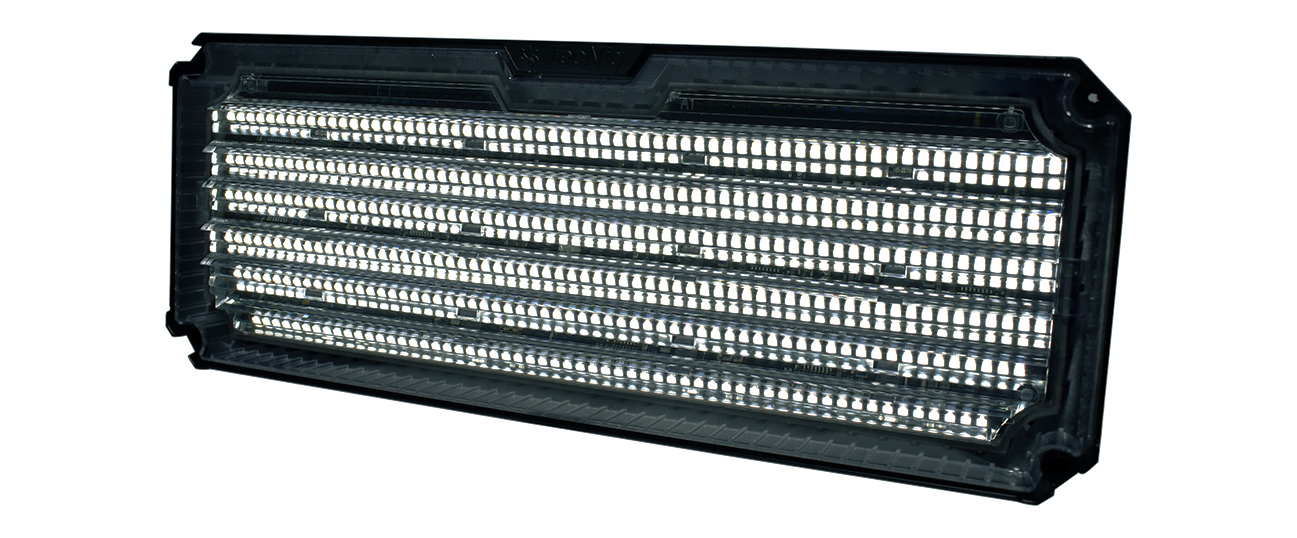

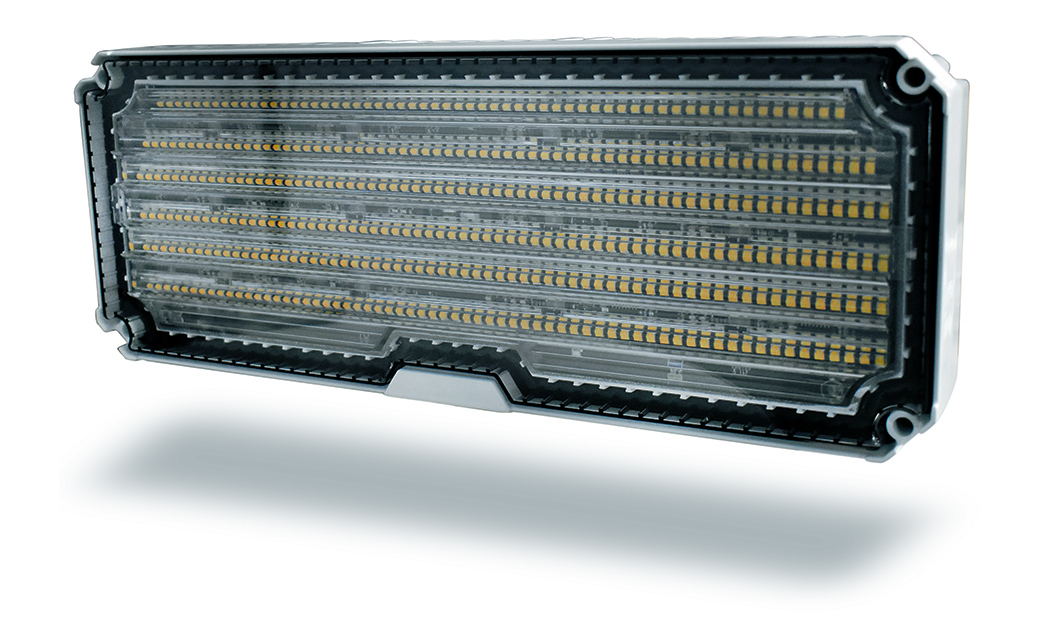

- 376 LEDs provide extreme efficiency and optimal light projection, with reduced eye glare
- Immediate operation, unlike metal halide lamps
- Works with less power than traditional metal halide lamps, leaving more for other equipment

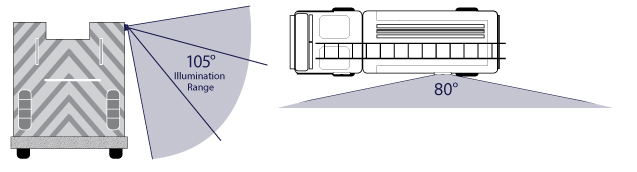

- Spend less time adjusting the E100, as optics are engineered to provide better off-axis illumination, both to the side, and at a downward angle
- WIRE COLORS
Black – Ground, Red – Positive

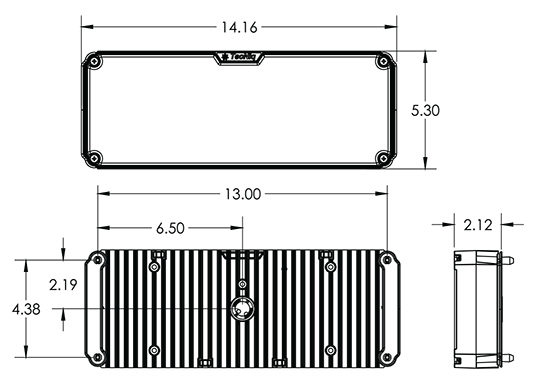

| Dimensions |
|
| LEDs | 376 |
| Lumens | Over 30,000 source lumens |
| Voltage | 9-30VDC |
| Current |
12V - 16.5A 24V - 9A |
| Connectors |
Deutsch (others available) Pigtail |
| Mounting | Mounts vary by application |
| LED Colors | White |
| Angle |
|
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E100-0BR32-1 |
E100 Brow Mounting Brackets Black w/ 3" Radius
|
- | ||||

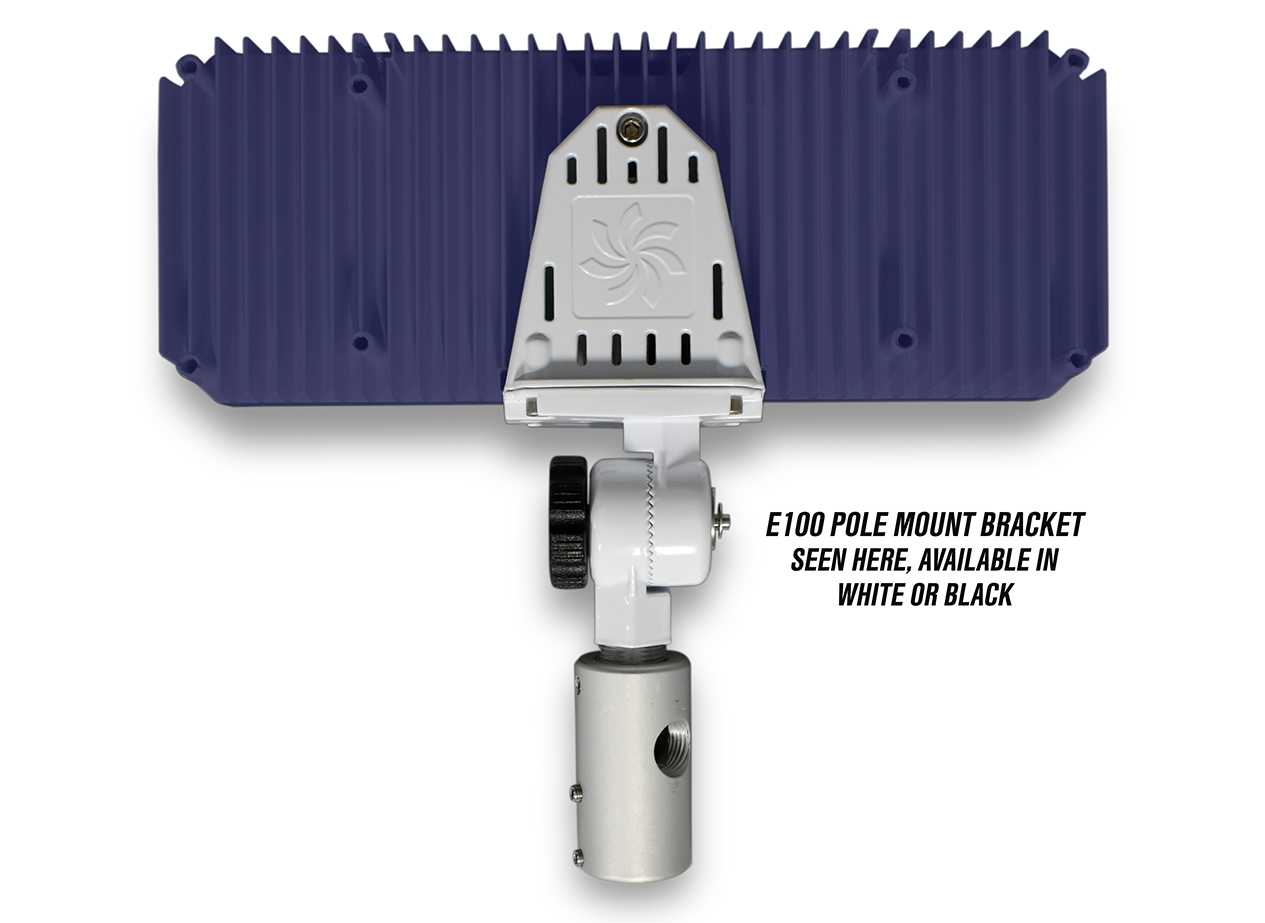

| E100-0PMKB-1 |
E100 Pole Mount Kit Black
|
- | ||||
| E100-0PMKW-1 |
E100 Pole Mount Kit White
|
- | ||||
| E100-1C00-1 |
High Int Scene Light Chrome Ring
|
- | ||||
| E100-WWP0-1 |
High Intensity Scene Light 12/24Vdc Pole Mount White Housing
|
 |
 |
Pigtail (12") | ||
| E100-WWPF-1 |
High Intensity Scene Light 12/24Vdc Pole Mount White Housing w/ xTP04-2P
|
|
|
Deutsch (12") |
