E100 High Intensity Scene Light
E100 High Intensity Scene Light
Technical Features

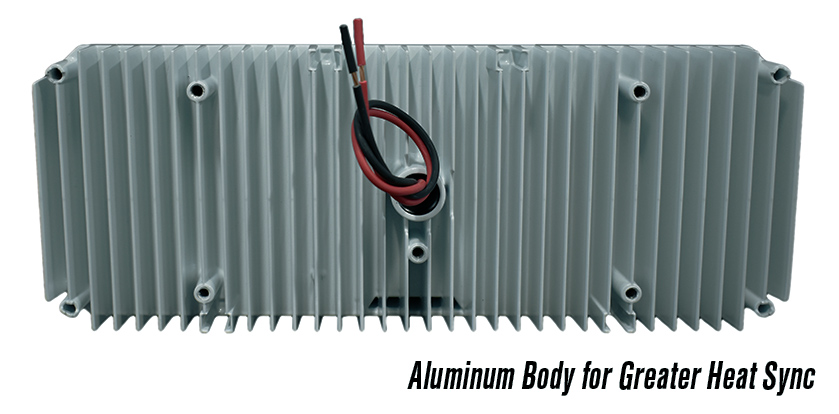

- Fully sealed, aluminum constructed housing allows for a completely submersible light
- Over 30,000 source lumens with flood distribution for optimal scene visibility
- Low electrical noise, keeps radio interference minimal

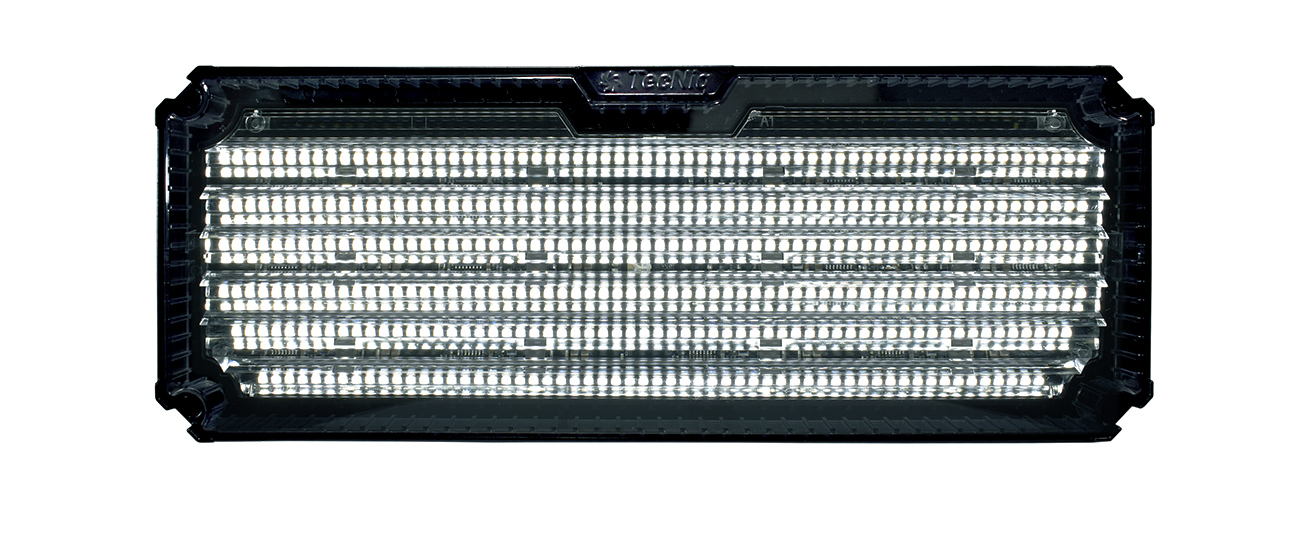

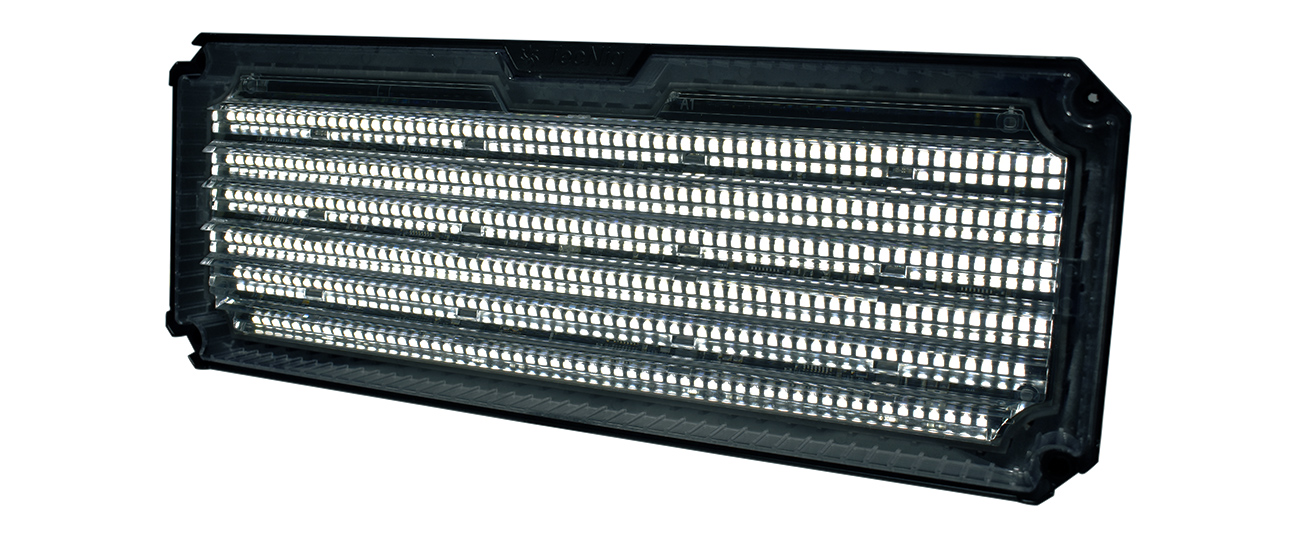

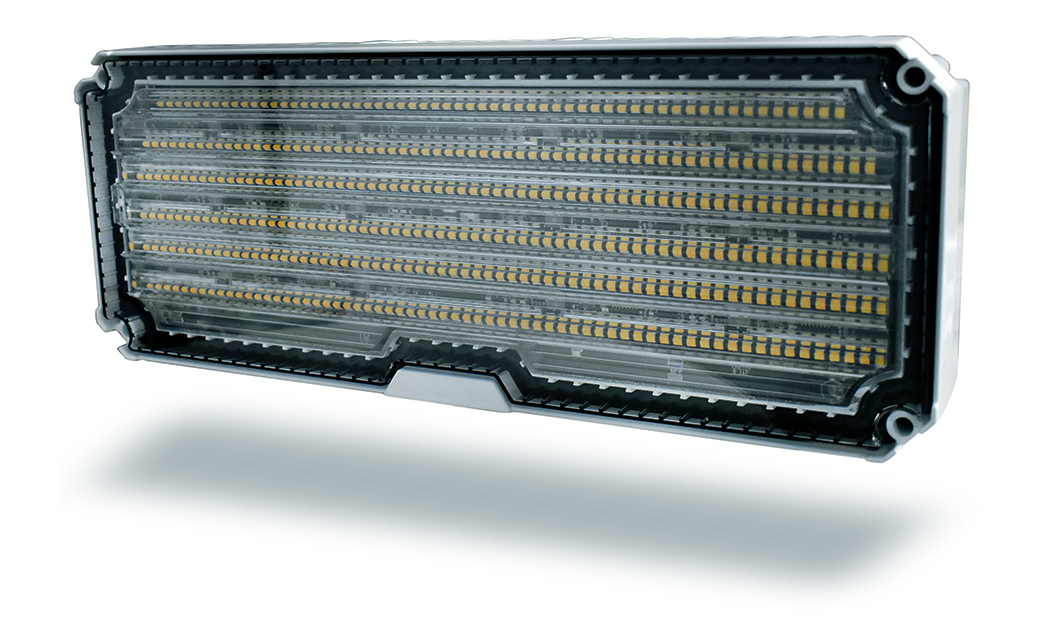

- 376 LEDs provide extreme efficiency and optimal light projection, with reduced eye glare
- Immediate operation, unlike metal halide lamps
- Works with less power than traditional metal halide lamps, leaving more for other equipment
- Spend less time adjusting the E100, as optics are engineered to provide better off-axis illumination, both to the side, and at a downward angle

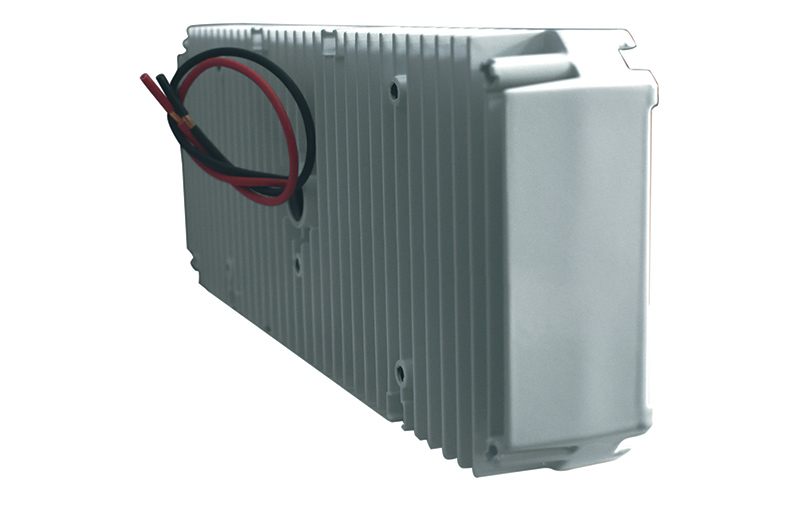

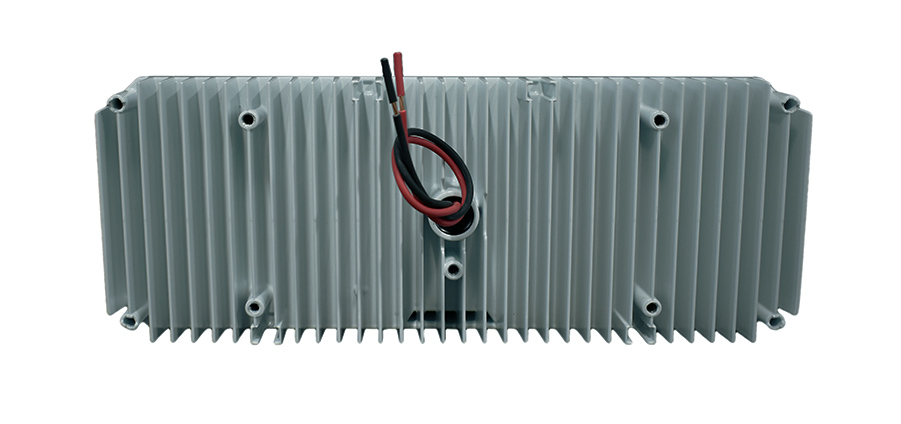

- WIRE COLORS
Black – Ground, Red – Positive

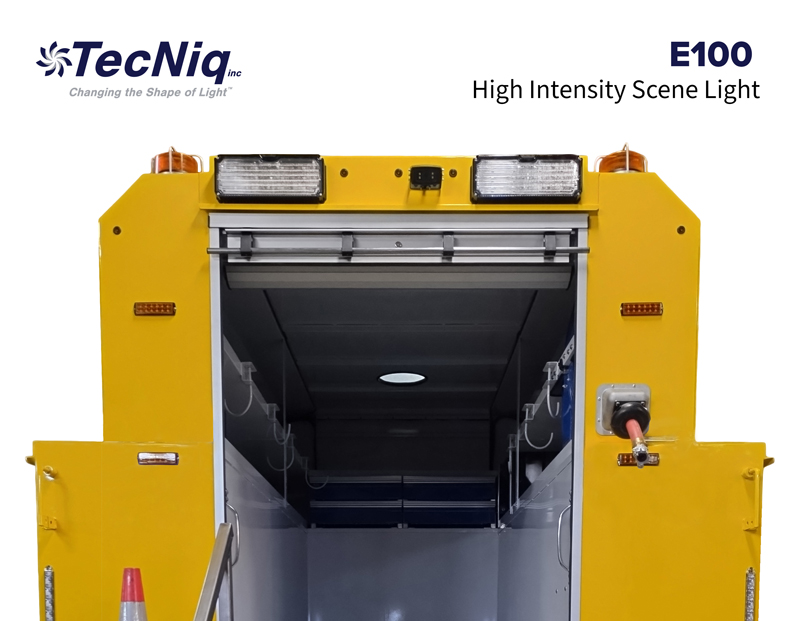

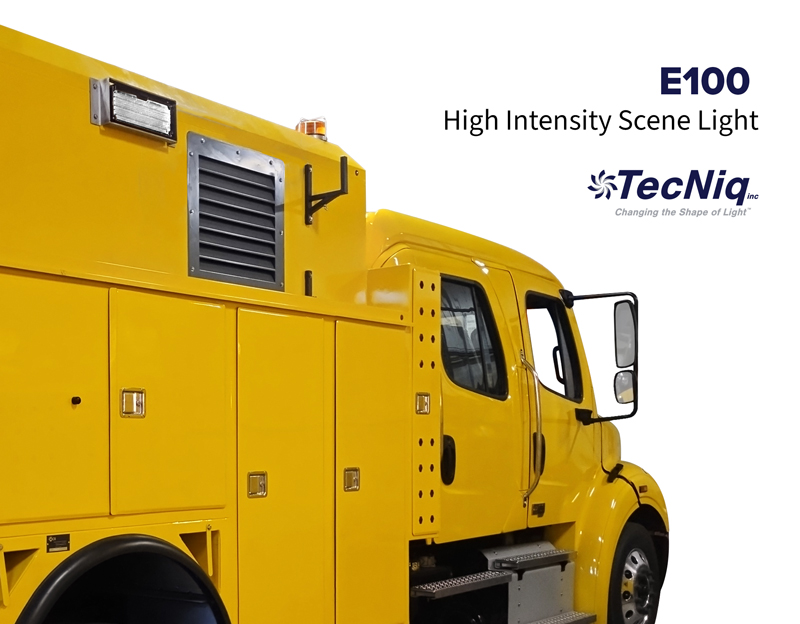

TecNiq’s ALL NEW E100 - HIGH-POWERED SCENE LIGHT is a surface mount scene light. TecNiq is proud to present it’s newest addition to the emergency lighting category. Designed to be BRIGHTER, LONGER LASTING, and MORE EFFICIENT - the E100 is the perfect scene light.
| Dimensions |
|
| LEDs | 376 |
| Lumens | Over 30,000 source lumens |
| Voltage | 9-30VDC |
| Current |
12V - 16.5A 24V - 9A |
| Connectors |
Deutsch (others available) Pigtail |
| Mounting | Mounts vary by application |
| LED Colors | White |
| Angle |
|
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E100-0BR32-1 |
E100 Brow Mounting Brackets Black w/ 3" Radius
|
- | ||||

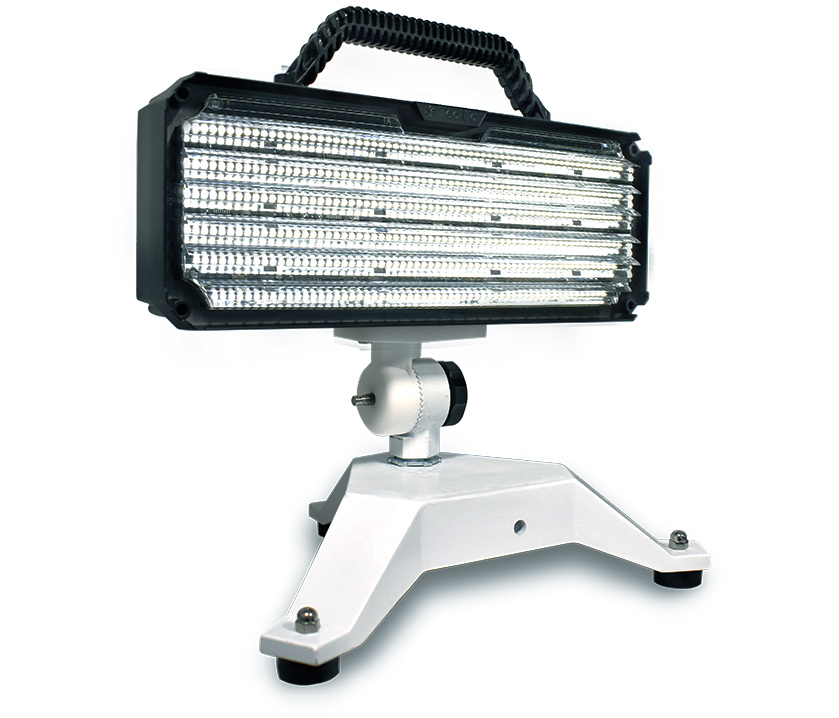

| E100-0PMKB-1 |

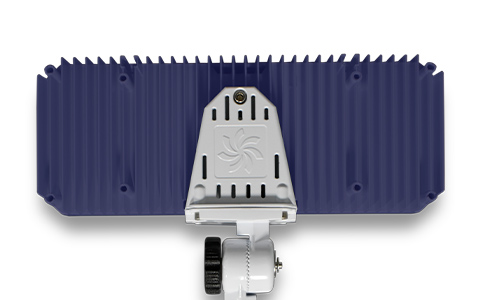

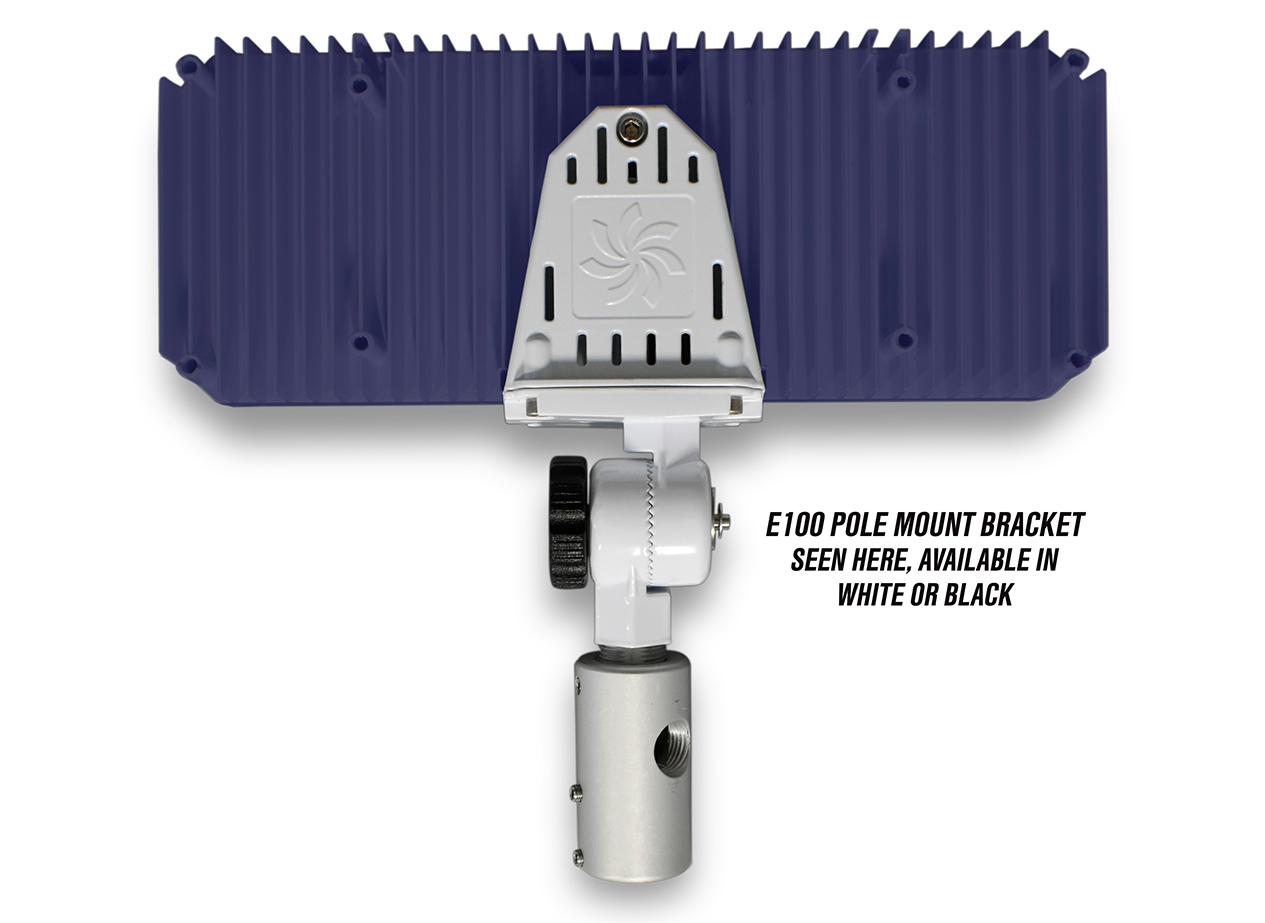

E100 Pole Mount Kit Black
|
- | ||||
| E100-0PMKW-1 |
E100 Pole Mount Kit White
|
- | ||||
| E100-1C00-1 |

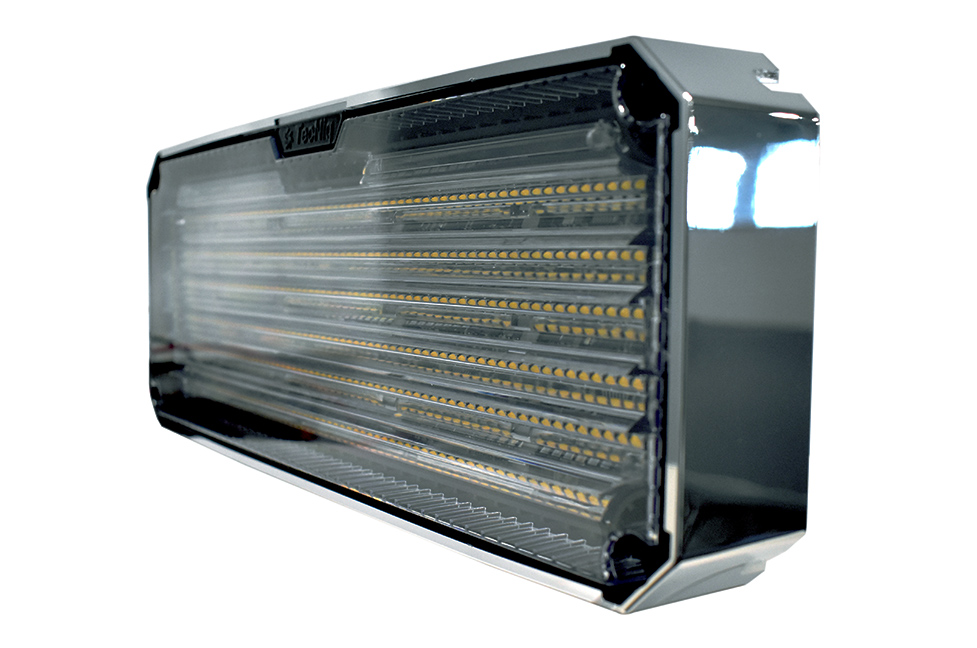

High Int Scene Light Chrome Ring
|
- | ||||
| E100-WB00-1 |
High Int Scene Light 12/24V dc Sf Mt Black Housing
|
 |
 |
Pigtail (12") | ||
| E100-WB0F-1 |
High Intensity Scene Light 12/24Vdc SM Black Housing w/ xTP04-2P
|
|
|
Deutsch (12") | ||
| E100-WBP0-1 |
High Intensity Scene Light 12/24Vdc Pole Mount Black Housing
|
|
|
Pigtail (12") | ||
| E100-WBPF-1 |
High Intensity Scene Light 12/24Vdc Pole Mount Black Housing w/ xTP04-2P
|
|
|
Deutsch (12") | ||
| E100-WW00-1 |
High Int Scene Light 12/24V dc Sf Mt white housing
|
|
|
Pigtail (12") | ||
| E100-WW0F-1 |
High Intensity Scene Light 12/24Vdc SM White Housing w/ xTP04-2P
|
|
|
Deutsch (12") | ||
| E100-WWP0-1 |
High Intensity Scene Light 12/24Vdc Pole Mount White Housing
|
|
|
Pigtail (12") | ||
| E100-WWPF-1 |
High Intensity Scene Light 12/24Vdc Pole Mount White Housing w/ xTP04-2P
|
|
|
Deutsch (12") |
