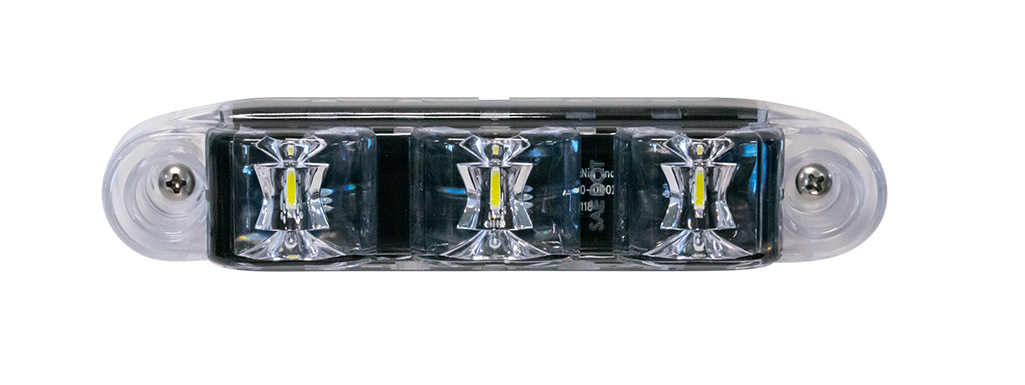

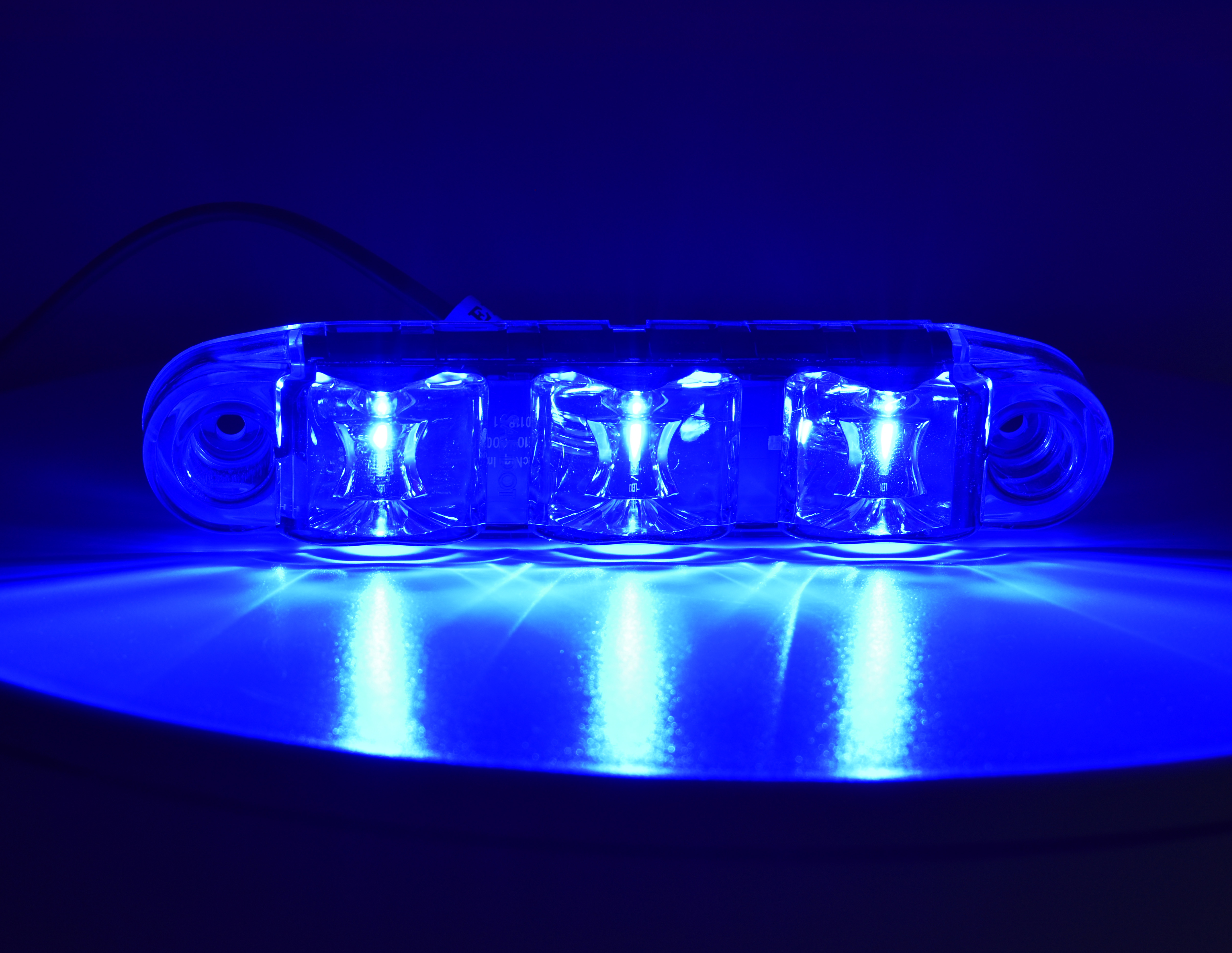

E10 Ground/Pump Panel Light
E10 Ground/Pump Panel Light
Technical Features
- Extra wide area of illumination (120° x 50°) covers many applications: task lighting, load lamp, ground lighting, panel lighting, and more
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Waterproof light that is immune to vibration
- Reliable performance over 50,000 hours
- Powerful multi-chip LEDs create 675 lumens
- Durable construction that can withstand the harshest conditions

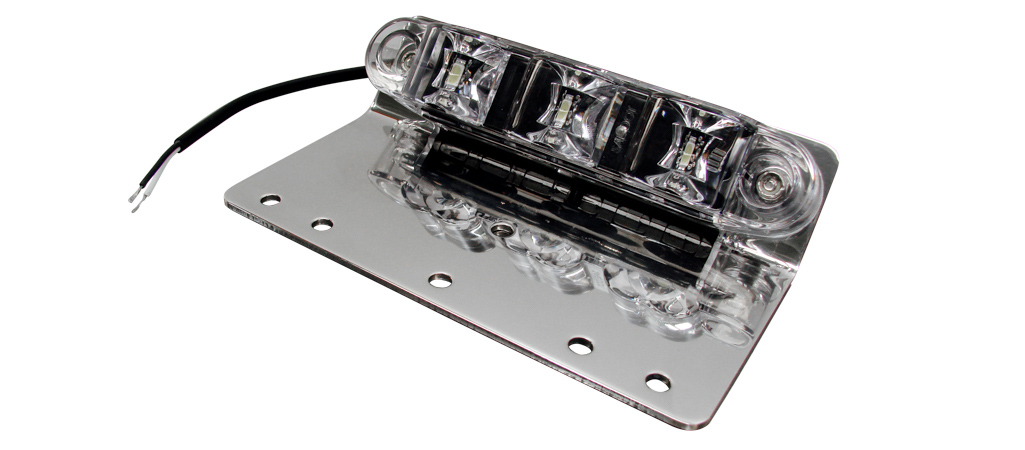

- Available with or without the stainless steel mounting bracket
- WIRE COLORS
White – Ground, Black – Positive
Because of its extra-wide output and rugged construction, TecNiq's E10 has quickly become the Swiss Army Knife" of
the lighting industry. Using TecNiq's proprietary urethane potting compound this light is sealed to handle the most extreme environments (Shown with separate mounting bracket). Originally developed to meet the NFPA regulations for a ground light, this super-bright LED light has found uses as a pump panel light, a loading light, a back-up light and a flood light.

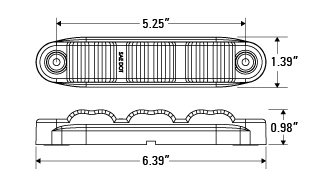

| Dimensions |
|
| LEDs | 3 |
| Lumens | 675 |
| Voltage | 9-14VDC |
| Current | 0.36A-0.44A |
| Connectors | 9" |

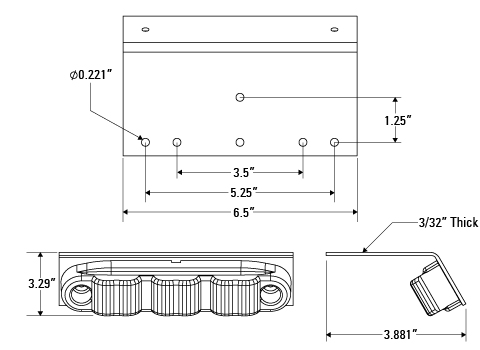

| Mounting | Surface mount using (2) #10 screws or<br>Stainless Steel Bracket using (5) #10 screws |
| LED Colors | White • Blue • Green • Red |
| Angle |
|
| Wire Colors |
White - Ground Black -Positive |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E10-B000-1 |
EV Ground Light Blue
|
 |
 |
10 | Sheathed Pigtail | |
| E10-BS00-1 |
EV Ground/Pump Panel Blue Light with SS Bracket
|
|
|
10 | Sheathed Pigtail | |
| E10-G000-1 |
EV Ground/Pump Panel Green Light
|
 |
|
10 | Sheathed Pigtail | |
| E10-GS00-1 |

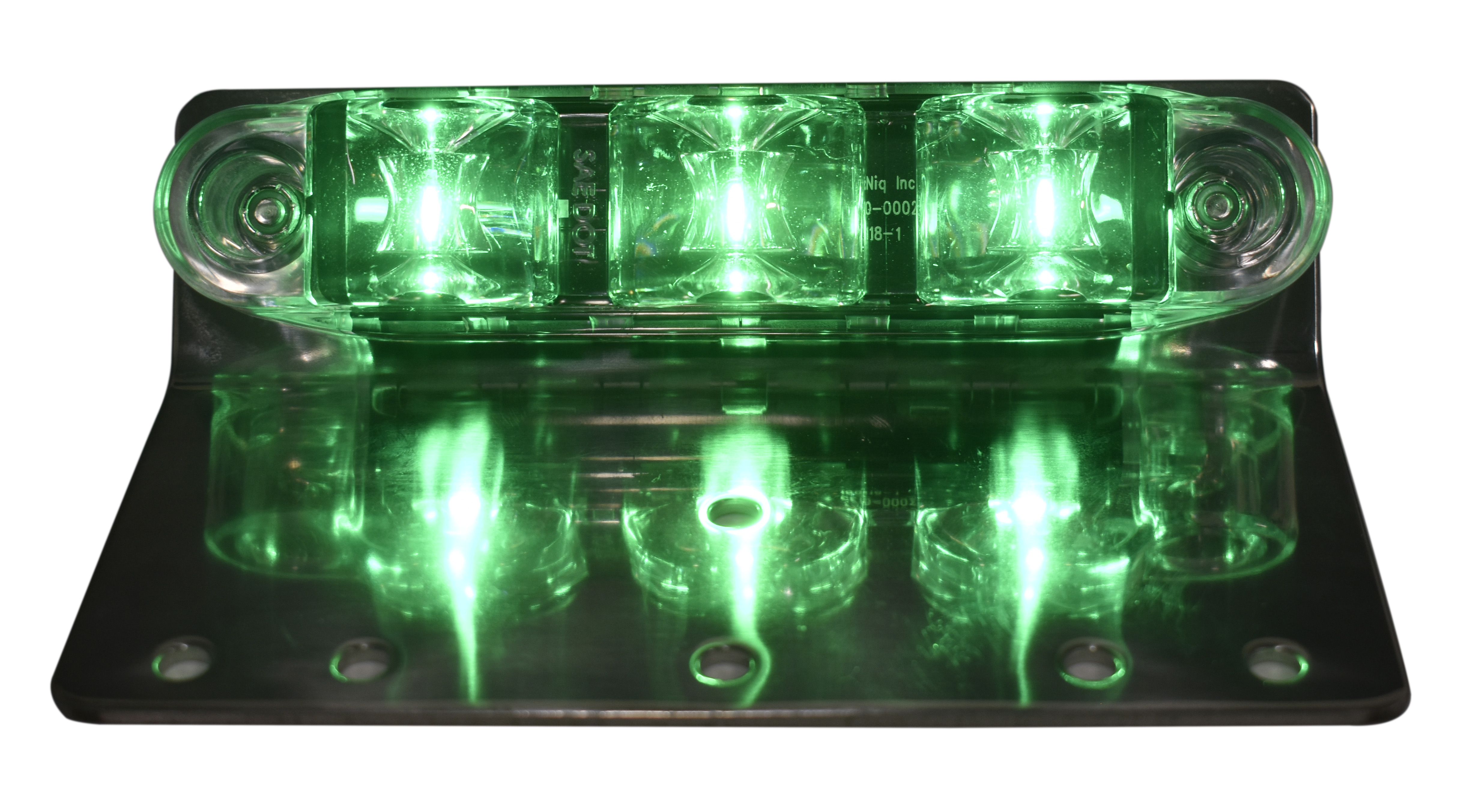

EV Ground/Pump Panel Green Light with SS Bracket
|
|
|
10 | Sheathed Pigtail | |
| E10-R000-1 |
EV Ground Light Red
|
 |
|
10 | Sheathed Pigtail | |
| E10-RS00-1 |

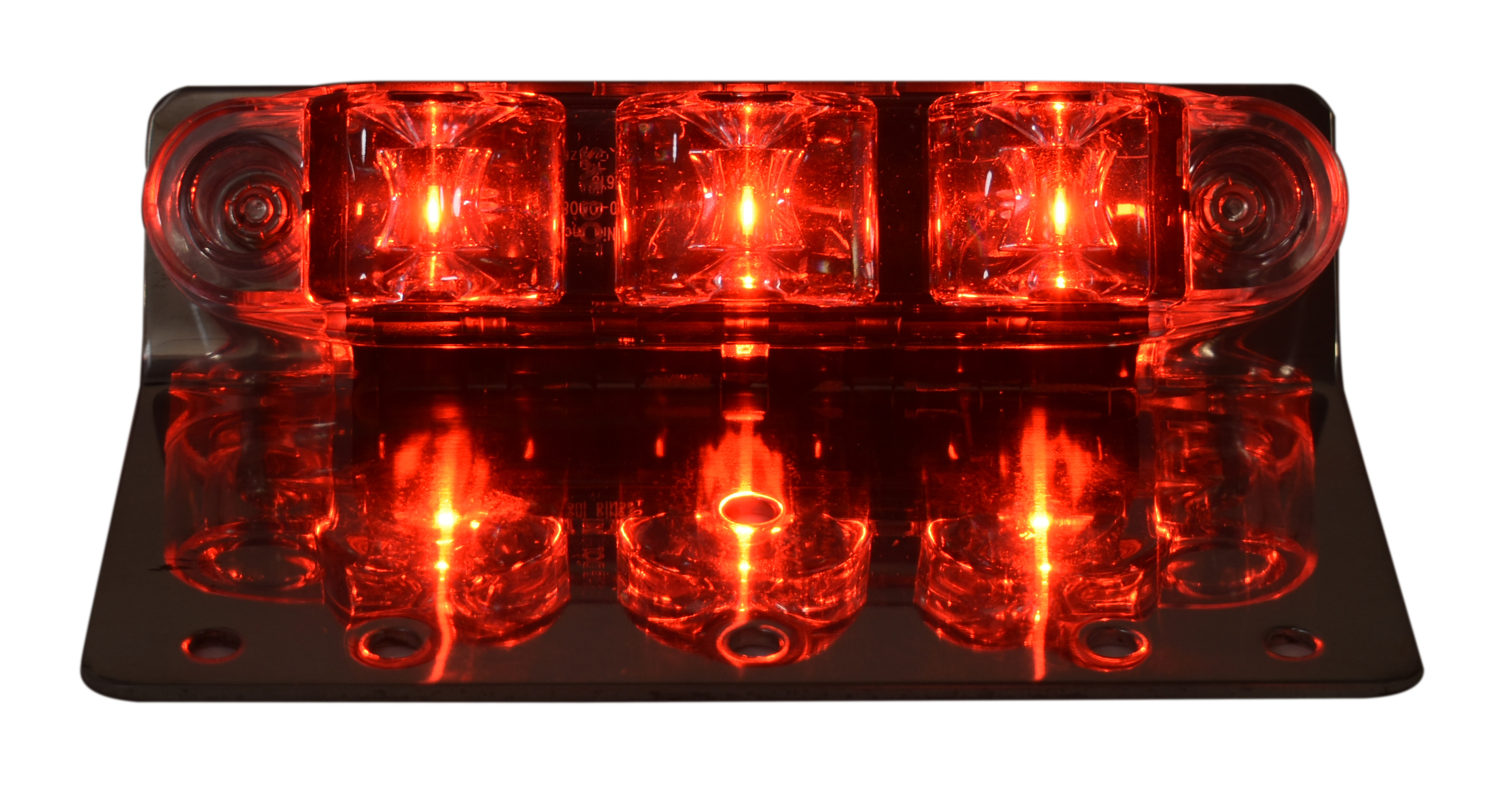

EV Ground/Pump Panel Red Light with SS Bracket
|
|
|
10 | Sheathed Pigtail | |
| E10-W000-1 |
EV Ground/Pump Panel Light
|
 |
|
10 | Sheathed Pigtail | |
| E10-WS00-1 |
EV Ground/Pump Panel Light with SS Bracket
|
|
|
10 | Sheathed Pigtail |
