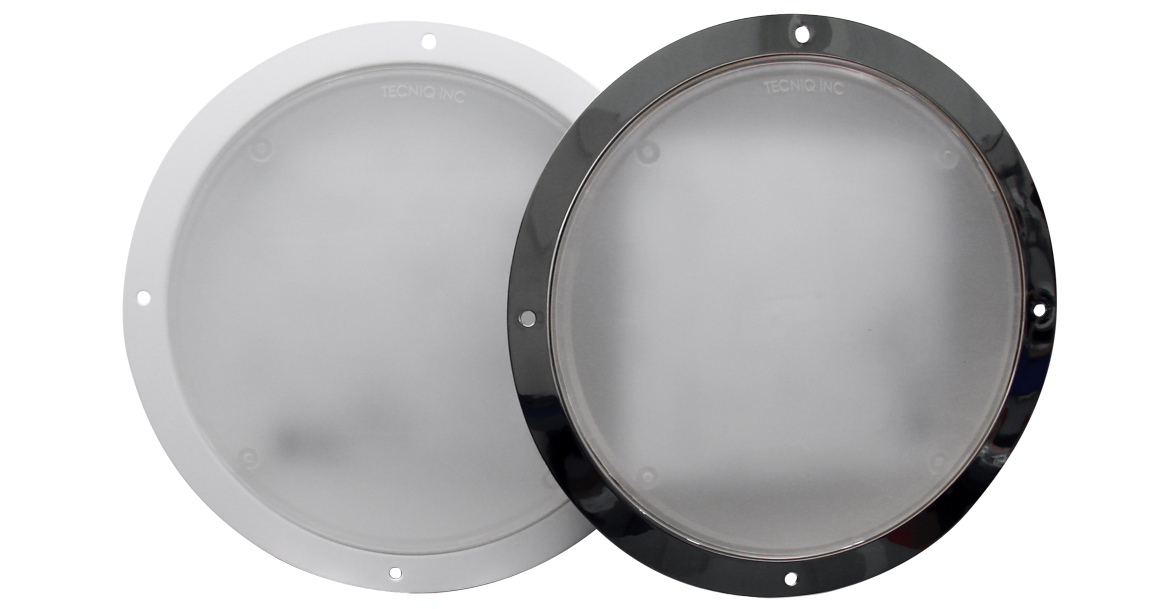

E08 8" Recessed Medical Vehicle Interior Light
E08 8" Recessed Medical Vehicle Interior Light
Technical Features
- Dual intensity - high and low function available
- Excellent interior illumination
- Vibration proof, moisture resistant design
- NFPA and Triple K compliant
- Reliable performance over 50,000 hours
- Powerful output of 1000 (18 LED) or 1550 (31 LED) lumens illuminates a wide area
- 12VDC and 24VDC (red/white combination model is 12V only)
- AccuColor LEDs provide superior color rendering for more natural skin tones to facilitate a more accurate diagnosis in medical lighting situations
- Smooth lens is easy to wipe clean

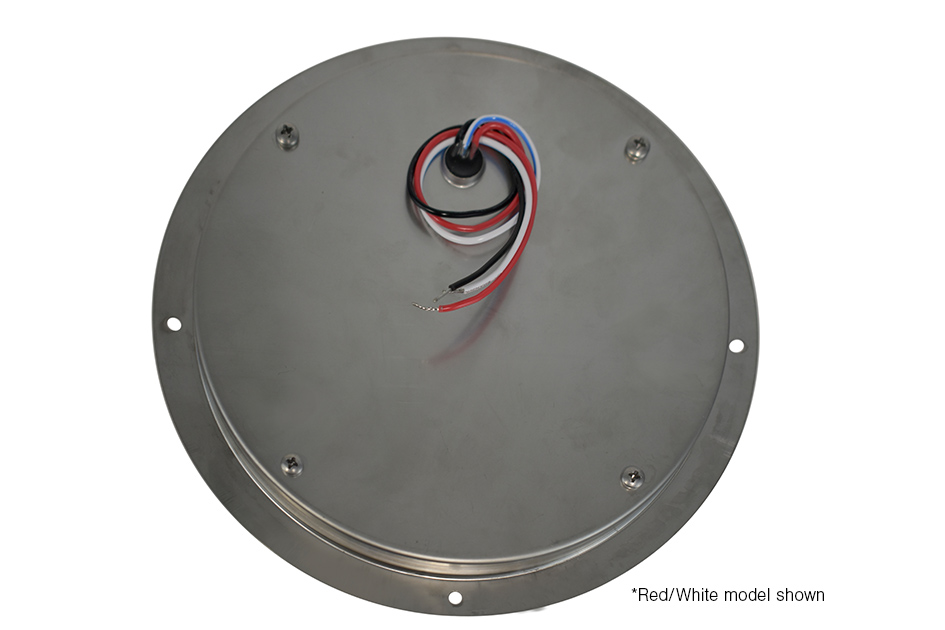

- WIRE COLORS
Black – Ground, White – Low Intensity, Yellow – High Intensity, Red (red/white model) – Red LEDs
TecNiq's E08 was designed to meet the rigorous demands of the ambulance industry's NFPA 1917 and Triple-K spec. Through our industry-leading lens design, the light from these high-output LEDs is precisely guided to the work surface providing a smooth and even area of illumination while minimizing glare in operator's eyes.

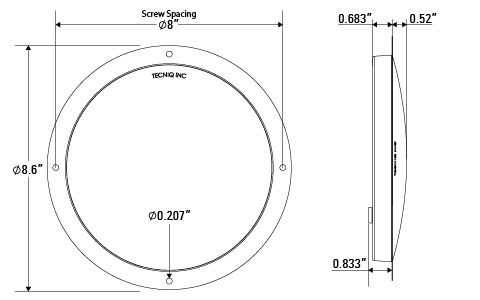

| Dimensions |
|
| LEDs | 31 / 18 (+12 Red) |
| Lumens |
1000 - (18 LED) 1550 - (31 LED) |
| Voltage |
9 - 30V DC (red/white combo model is 12V only) |
| Current |
0.57A - 0.86A - (18 LED) 1.12A - 1.52A - (31 LED) +0.30A - 0.44A - red (optional) |
| Connectors | 9" |
| Mounting | Fits standard mounting holes on an 8” circle with (4) #8 screws |
| LED Colors | White • Neutral White • Warm White |
| Angle |
|
| Wire Colors |
Black - Ground White - Low Intensity Yellow - High Intensity Red (red/white model) - Red LEDs |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E08-LC00-1 |
8" EV White Interior Light Chrome Trim - 31 LED's
|
 |
 |
10 | Pigtail (9") | |
| E08-LC10-1 |
8" EV White Interior Light Chrome Trim - 18 LED's 8 EV
|
|
|
10 | Pigtail (9") | |
| E08-LC1U-1 |
8IN EV Wht Int Lt Chrm Trm 3 Position Conn W/Label 18 Neutral Wht LED
|
|
|
|||
| E08-LC20-1 |
White Interior Light Chrome Trim - 18 LED's - MRI
|
|
|
10 | Pigtail (9") | |
| E08-LCR0-1 |
8" EV White Red Interior Light Chrome Trim
|
 |
|
10 | Pigtail (9") | |
| E08-LW00-1 |
8" EV White Interior Light White Trim - 31 LED's
|
|
|
10 | Pigtail (9") | |
| E08-LW10-1 |
8" EV White Interior Light White Trim - 18 LED's
|
|
|
10 | Pigtail (9") | |
| E08-LW20-1 |
8" EV White Interior Light White Trim - 18 LED's - MRI
|
|
|
10 | Pigtail (9") | |
| E08-LWR0-1 |
8" EV White Red Interior Light White Trim
|
|
|
10 | Pigtail (9") | |
| E08-WC00-1 |
8" EV White Interior Light Chrome Trim - 31 LED's
|
 |
|
10 | Pigtail (9") | |
| E08-WC10-1 |
8" EV White Interior Light Chrome Trim - 18 LED's8 EV
|
|
|
10 | Pigtail (9") | |
| E08-WCR0-1 |
8" EV White Red Interior Light Chrome Trim
|
 |
|
10 | Pigtail (9") | |
| E08-WW00-1 |
8" EV White Interior Light White Trim - 31 LED's
|
|
|
10 | Pigtail (9") | |
| E08-WW10-1 |
8" EV White Interior Light White Trim - 18 LED's
|
|
|
10 | Pigtail (9") | |
| E08-WW20-1 |
8" EV White Interior Light White Trim - 18 LED's - MRI
|
|
|
10 | Pigtail (9") | |
| E08-WWR0-1 |
8" EV White Red Interior Light White Trim
|
|
|
10 | Pigtail (9") |
