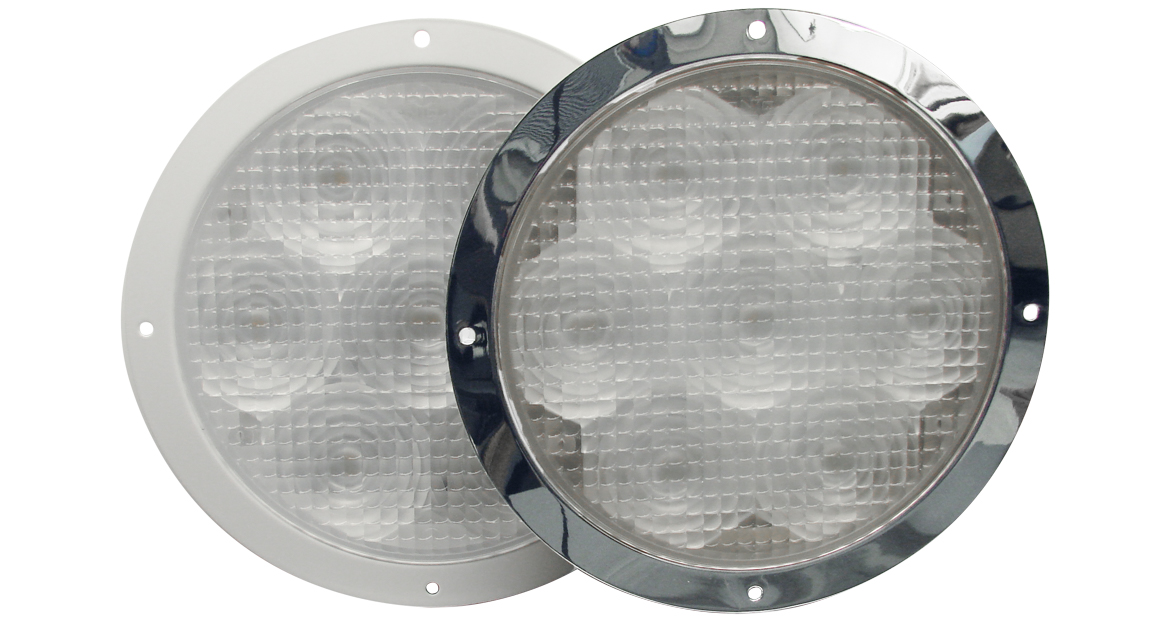

E07 8" Recessed Medical Vehicle Interior Light
E07 8" Recessed Medical Vehicle Interior Light
Technical Features
- Dual intensity - high and low function available
- Excellent interior illumination
- Vibration proof, moisture resistant design
- Exceeds Triple K requirements
- Reliable performance over 50,000 hours
- Produces 840 lumens
- High quality LEDs that won't change color over time
- WIRE COLORS
Black – Ground, White – Low Intensity, Red – High Intensity
TecNiq's E07 was designed to meet the rigorous demands of the ambulance industry's NFPA 1917 and Triple-K spec.
This thin, low-profile lamp can also be used in harsh environments where power consumption and ceiling space are limited. The superior color quality of TecNiq's AccuColor technology gives a more natural color rendering - allowing faster and more accurate diagnosis, while minimizing glare in operator's eyes.
| Dimensions |
|
| LEDs | 7 |
| Lumens | 840 |
| Voltage | 9-14VDC |
| Current | 1.00A-1.35A |
| Connectors | 9" |
| Mounting | Fits standard mount holes on 8” circle with (4) #8 screws |
| LED Colors | White • Neutral White |
| Angle |
|
| Wire Colors |
Black - Ground White - Low Intensity Red - High Intensity |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E07-WC00-1 |
White Emergency Vehicle Interior Light Chrome Trim
|
 |
 |
10 | Pigtail (9") | |
| E07-WW00-1 |
White Emergency Vehicle Interior Light White Trim
|
|
|
10 | Pigtail (9") |
