E06 Silho-X Area Light - 4"
E06 Silho-X Area Light - 4"
Technical Features
- Shock proof, moisture-resistant design
- Reliable performance over 50,000 hours
- Extremely bright: produces 300 lumens
- Easily installed using two #6 screws
- High-polished stainless steel trim with other finishes available
- Available in color changing RGB option
- WIRE COLORS
Black – Ground, White – Positive, Red (red/white model) – Red LEDs

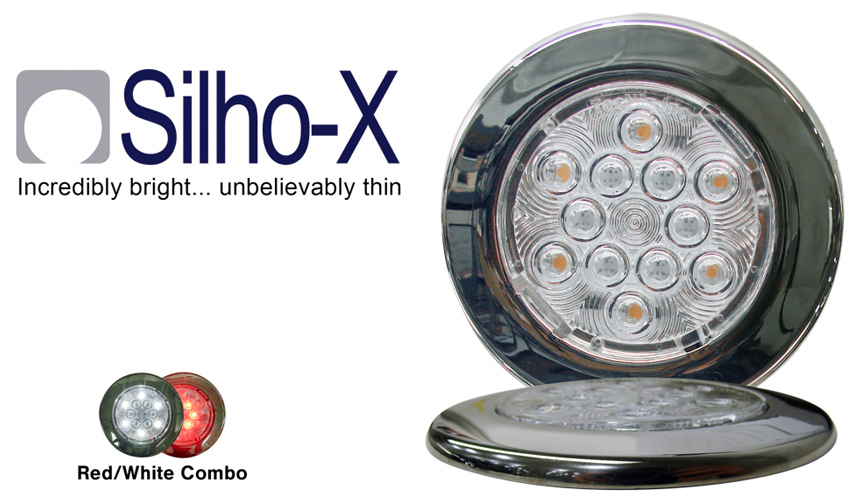

Unbelievably thin, remarkably bright...
The simplified, water-tight design, unique circuitry and ultra-efficient low-glare lenses make this product line unmatched by our competition in price vs. performance. Even more amazing is that all of these features are provided in a package that is less than 0.25" thick.
The high-quality automotive-grade LEDs, plastics and electro-polished (passivated) stainless steel are unique to our products. TecNiq engineers leveraged their decades of experience in LED lighting to locate the best value, next-generation LED sources and combined them with our unique world-leading technologies to create these unbelievable area lights.
| Dimensions |
|
| LEDs | 6 + 6 red (optional) |
| Lumens | 300 (white) |
| Voltage | 9-14VDC |
| Current |
0.22A-0.26A - white +0.13A-0.15A - red (optional) +0.05A-0.07A - blue (optional) |
| Connectors | 9" |
| Mounting | Surface mount using (2) #6 flat head screws hidden by the lens |
| LED Colors | White • Neutral White • Warm White • White/Red • White/Blue |
| Angle |
|
| Wire Colors |
Black - Ground White - Positive Red (red/white model) - Red LEDs |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E06-3S00-1 |
Silho-X 4" Round RGB Light SS Trim Ring
|
 |
 |
10 | Pigtail (9") | |
| E06-LS00-1 |
Silho-X 4" Round Neutral White Light SS Trim Ring
|
 |
|
10 | Pigtail (9") | |
| E06-LS0R-1 |
Silho-X 4" Round Neutral White/Red Light SS Trim Ring
|
 |
|
10 | Pigtail (9") | |
| E06-LSB0-1 |
Silho-X 4" Round Neutral White/Blue Combo Light SS Trim Ring
|
 |
|
10 | Pigtail (9") | |
| E06-MN00-1 |
Silho-X 4" Round Warm White Light Satin Nickel Trim Ring
|
 |
|
10 | Pigtail (9") | |
| E06-MS00-1 |
Silho-X 4" Round Warm White Light SS Trim Ring
|
|
|
10 | Pigtail (9") | |
| E06-MS0F-1 |
Silho-X 4" Round Warm White Light Diffuse Lens SS Trim Ring
|
|
|
10 | Pigtail (9") | |
| E06-MS0R-1 |
Silho-X 4" Round Warm White/Red Combo Lt SS Trim Ring
|
 |
|
10 | Pigtail (9") | |
| E06-MW00-1 |
Silho-X 4" Round Warm White Light, White Powder Coat Trim Ring
|
|
|
10 | Pigtail (9") | |
| E06-RS00-1 |
Silho-X 4" Round Red Light SS Trim Ring
|
 |
|
10 | Pigtail (9") | |
| E06-WB00-1 |
Silho-X 4" Round White Light Black Powder Coat Trim Ring
|
 |
|
10 | Pigtail (9") | |
| E06-WB0R-1 |
Silho-X 4" Round White/Red Combo Light Black Trim Ring
|
 |
|
10 | Pigtail (9") | |
| E06-WN00-1 |
Silho-X 4" Round White Light Satin Nickel Trim Ring
|
|
|
10 | Pigtail (9") | |
| E06-WS00-1 |
Silho-X 4" Round White Light SS Trim Ring
|
|
|
10 | Pigtail (9") | |
| E06-WS0B-1 |
Silho-X 4" Round White/Blue Combo Light SS Trim Ring
|
 |
|
10 | Pigtail (9") | |
| E06-WS0F-1 |
Silho-X 4" Round White Light Diffuse Lens SS Trim Ring
|
|
|
10 | Pigtail (9") | |
| E06-WS0R-1 |
Silho-X 4" Round White/Red Combo Light SS Trim Ring
|
|
|
10 | Pigtail (9") | |
| E06-WSRF-1 |
Silho-X 4" Round White/Red Combo Lt Diffuse Lens SS Trim Ring
|
|
|
10 | Pigtail (9") | |
| E06-WW00-1 |
Silho-X 4" Round White Light White Powder Coat Trim Ring
|
|
|
10 | Pigtail (9") |
