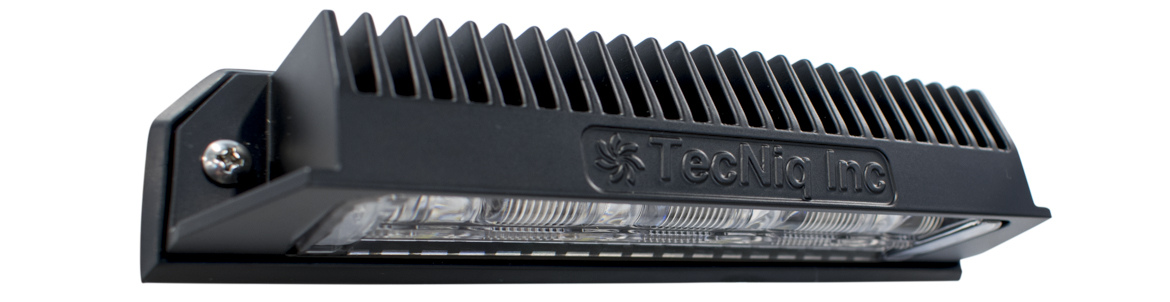

D30 Load Ramp Light
D30 Load Ramp Light
Technical Features
- Extremely durable surface mounted load light
- Aluminum heat sink housing, finished in a black powder coat will keep this light looking great for years of use
- Includes a form fitting TPE gasket, which has excellent chemical and UV resistance
- 2000 lumens of bright white light
- IP68 Rated - Water & dust proof
- Surface mount installation
- WIRE COLORS
White – Ground, Black – Positive
Durability for today's harsh environments - that was a focal point when designing the D30. Built with an aluminum heat sink housing, finished in a black powder coating will keep this light looking great for years. Surface mount installation with an IP68 Water and Dust proof rating, round out this Load Ramp light.

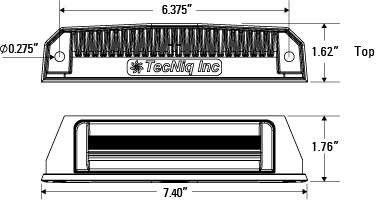

| Dimensions |
|
| LEDs | 4 |
| Lumens | 2000 |
| Voltage | 9-30VDC |
| Current | 1.3A - 1.9A |
| Connectors | 12" |
| Mounting | Surface mounted with two screws |
| Wire Colors |
White - Ground Black -Positive |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| D30-WB00-1 |
LED High Output Surface Mount Load Light
|
 |
 |
10 | Pigtail (9") | |
| D30-WB0B-1 |
LED High Output Surface Mount Load Light W/180 Bullets
|
|
|
10 | 0.180" Bullets | |
| D30-WB0F-1 |
**LED High Output Surface Mount Load Light Deutsch
|
|
|
10 | ||
| D30-WW0B-1 |
LED High Output Surface Mount Load Light White Housing W/180 Bullets
|
|
|
10 | 0.180" Bullets |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
