D21 Link-Light
D21 Link-Light
Technical Features
- Innovative Link feature - allowing lights to be easily connected and installed together
- Four bright colors - Amber, Blue, Red, and White
- Guaranteed to be water & shock proof
- Perfect for rub rails, accent lighting, area or deck lighting, high moisture exposure locations
- Can be installed with adhesive tape or mechanical fastener
- WIRE COLORS
Black – Ground, Red – Positive

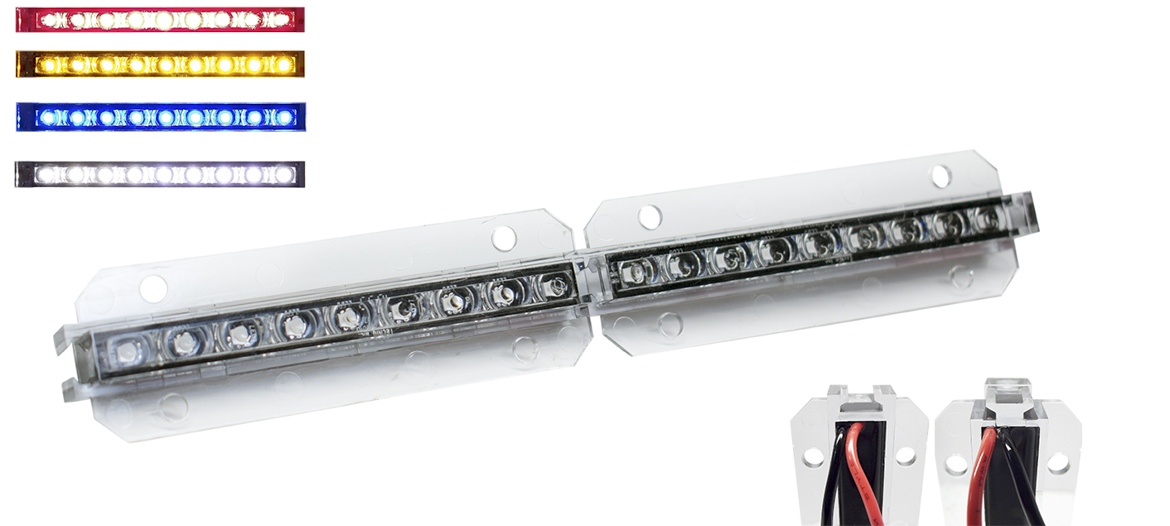

This innovative LED light is made with integrated slide locks, allowing you to easily link them together. Available with Amber,
Blue, Red, and White LEDS in a clear lens. These waterproof lights can be configured in a number of ways. The light includes a mechanical attachment flange, that fastens behind your wall or surface. Providing a very clean LED linear light that can be used in any environment, for a wide array of applications.

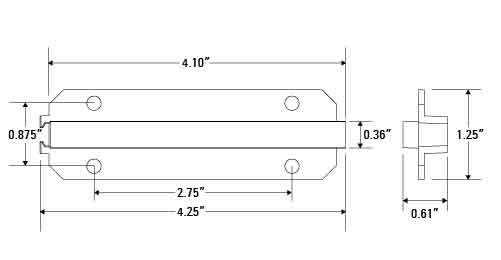

| Dimensions |
|
| LEDs | 9 |
| Lumens | 80 |
| Voltage | 9-14VDC |
| Current |
0.155A-0.215A - amber/red 0.145A-0.205A - blue/green/white |
| Connectors | 4.5" lead on each end of light |
| LED Colors | White • Amber • Green • Blue • Red |
| Wire Colors |
Black -Ground Red - Positive |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| D21-AC00-1 |
Emergency Accessory Light Amber
|
 |
 |
50 | Pigtail (4.5") | |
| D21-BC00-1 |
Emergency Accessory Light Blue
|
 |
|
50 | Pigtail (4.5") | |
| D21-GC00-1 |
Emergency Accessory Light Green
|
 |
|
50 | Pigtail (4.5") | |
| D21-RC00-1 |
Emergency Accessory Light Red
|
 |
|
50 | Pigtail (4.5") | |
| D21-WC00-1 |
Emergency Accessory Light White
|
 |
|
50 | Pigtail (4.5") |
