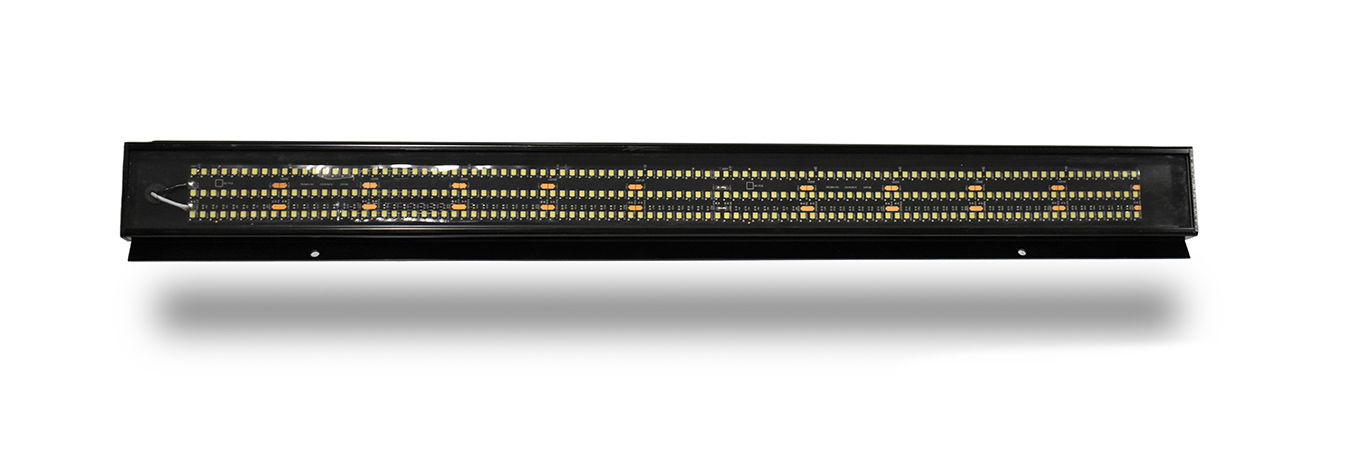

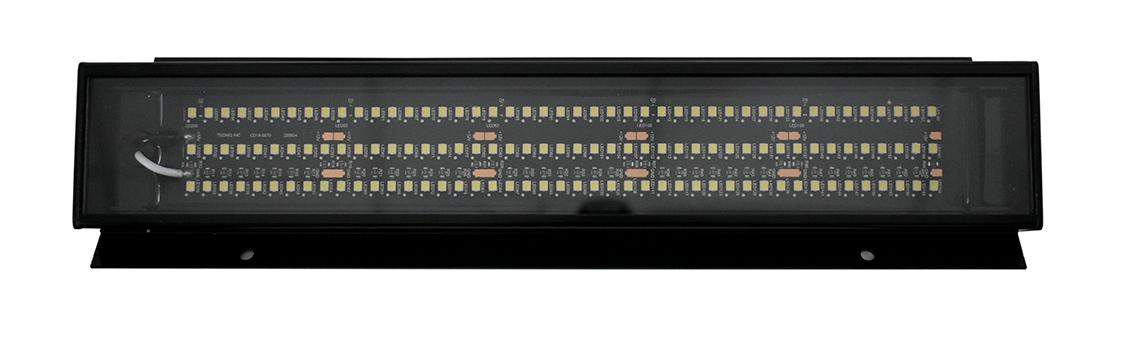

D18 Heavy Duty Scene Light
D18 Heavy Duty Scene Light
Technical Features
- 297 High intensity LEDs, providing 5000 (standard) or 8000 (premium) Lumens of output
- Water resistant design
- FR-4 printed circuitboards for higher quality
- Black Heavy Duty Aluminum extrusion with 30° tilt for increased illumination
- TecNiq Lifetime Warranty
- WIRE COLORS
White – Ground, Black – Positive
Designed with a 30° downward facing light projection, the D18 is perfect for illuminating inside trailers, compartments and more. With a lumen range from 2260 to 8500 lumens, the D18 projects plenty of bright white light. This style of light has become very popular with toy haulers, concession trailers, work trailers, and more.

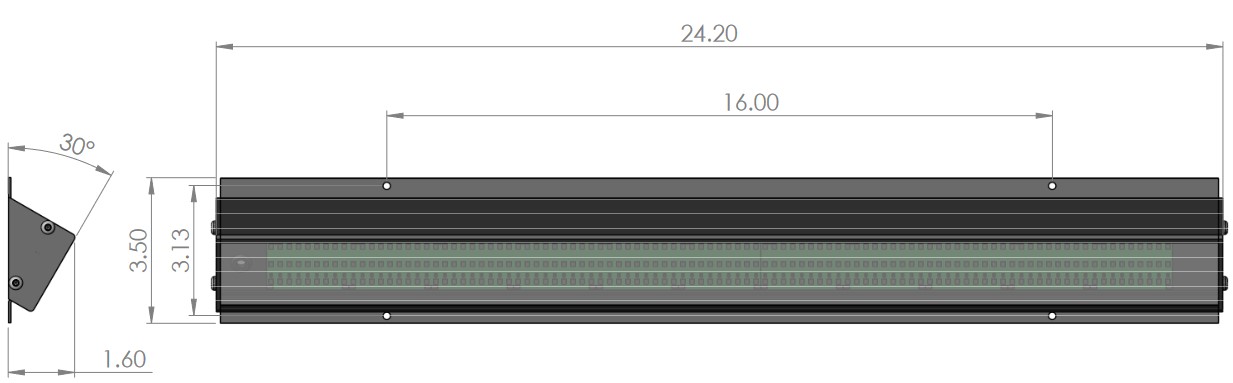

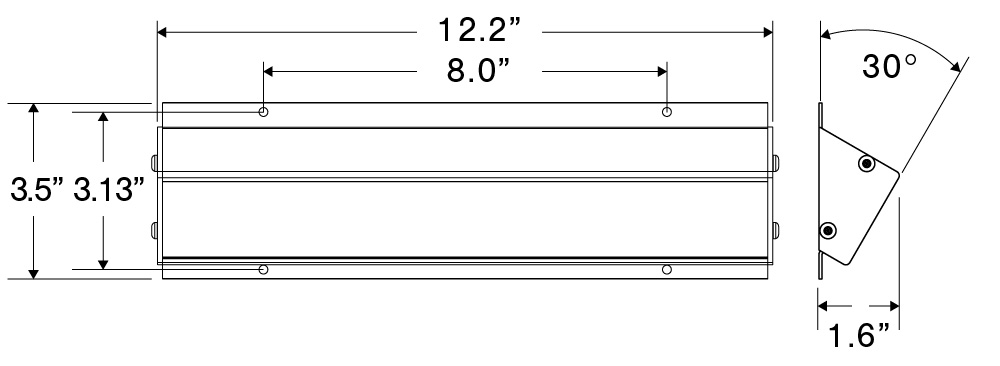

| Dimensions |
|
| LEDs | 297 |
| Lumens |
12" Standard - 2260 12" Premium - 3850 24" Standard - 5000 24" Premium - 8500 |
| Voltage | 9-14VDC |
| Current |
12" Standard - 1.32A - 1.80A at 12V 12" Premium - 2.2A - 3.0A at 12V 24" Standard - 2.93A - 3.97A at 12V 24" Premium - 4.85A - 6.55A @ 12.8Vdc |
| Connectors | 9" Pigtail |
| Mounting | Surface Mounted Using Just (4) #10 Screws |
| Wire Colors |
Standard Black - Positive White - Ground Premium Black - Positive White (red stripe) - Ground (Premium) |
| Ground | White |
| Run Time | 50,000 Hours of reliable performance |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| D18-WA06-1 |
Aluminum Exterior Area Light 6in Clear Anodize
|
 |
 |
|||
| D18-WA12-1 |
Aluminum Exterior Light 12in Clear Anodize
|
|
|
|||
| D18-WA24-1 |
Aluminum Exterior Light 24in Clear Anodize
|
|
|
|||
| D18-WAP06-1 |
Aluminum Exterior Light Premium 6in Clear Anodize
|
|
|
|||
| D18-WAP12-1 |
Aluminum Exterior Light Premium 12in Clear Anodize
|
|
|
|||
| D18-WAP24-1 |
Aluminum Exterior Light Premium 24in Clear Anodize
|
|
|
|||
| D18-WB00-1 |
Aluminum Exterior Area Light 24in
|
|
|
Pigtail (12") | ||
| D18-WB010-1 |
Aluminum Exterior Area Light 12in
|
|
|
Pigtail (24") | ||
| D18-WB06-1 |
Aluminum Exterior Area Light 6in Black
|
|
|
Pigtail (12") | ||
| D18-WBP0-1 |
Aluminum Exterior Area Light Premium 24in
|
|
|
Pigtail (24") | ||
| D18-WBP06-1 |
Aluminum Exterior Light Premium 6in Black
|
|
|
Pigtail (24") | ||
| D18-WBP10-1 |
Aluminum Exterior Area Light Premium 12in
|
|
|
Pigtail (12") | ||
| D18-WW06-1 |
Aluminum Exterior Area Light 6in White
|
|
|
Pigtail (24") | ||
| D18-WW12-1 |
Aluminum Exterior Light 12in White
|
|
|
Pigtail (12") | ||
| D18-WW24-1 |
Aluminum Exterior Light 24in White
|
|
|
Pigtail (12") | ||
| D18-WWP06-1 |
Aluminum Exterior Light Premium 6in White
|
|
|
Pigtail (24") | ||
| D18-WWP12-1 |
Aluminum Exterior Light Premium 12in White
|
|
|
Pigtail (12") | ||
| D18-WWP24-1 |
Aluminum Exterior Light Premium 24in White
|
|
|
Pigtail (24") |
