D17 Ancillary Accent Light
D17 Ancillary Accent Light
Technical Features
- This accent light provides efficient options for boat decks, RV's, and additional applications, where style and function are desired
- Lamp features (6) high efficiency LEDs, providing 540 lumens of output
- Sleek and stylish surface mount design
- IP68 Rated - Guaranteed dust and water proof

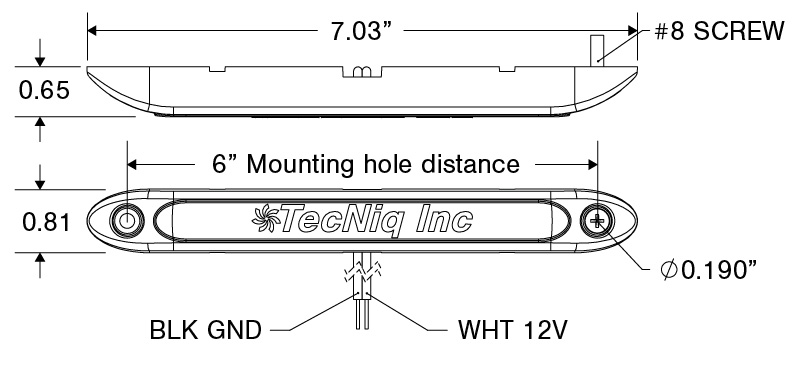

- NOW AVAILABLE with New Front Facing Light Projection (see D17-W0S0-1 model)
- WIRE COLORS
Black – Ground, White – Positive
Introducing the D17 Porch/Deck Accent Lights. The ALL NEW D17 Accent Lights are built on the same foundation as all TecNiq Lights - superior engineering, sleek design, and an unwavering commitment to the highest quality product on the market. The D17's are the perfect option for boats, RV's, work trucks, trailers, delivery trucks, and more. Light up walk areas for safer movement, deliver visibility in dark areas, and provide long lasting performance.

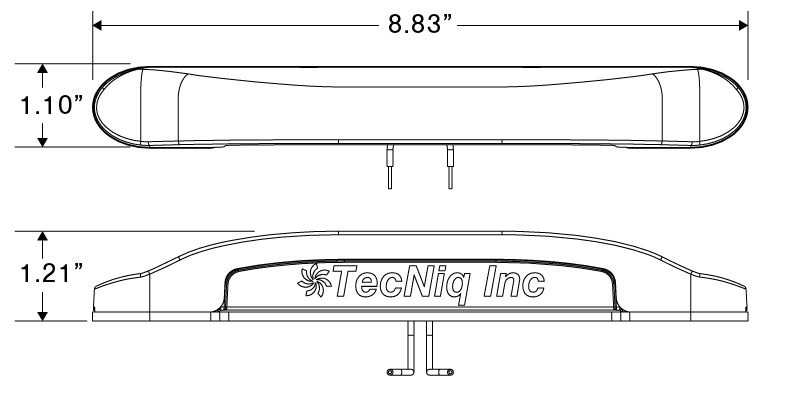

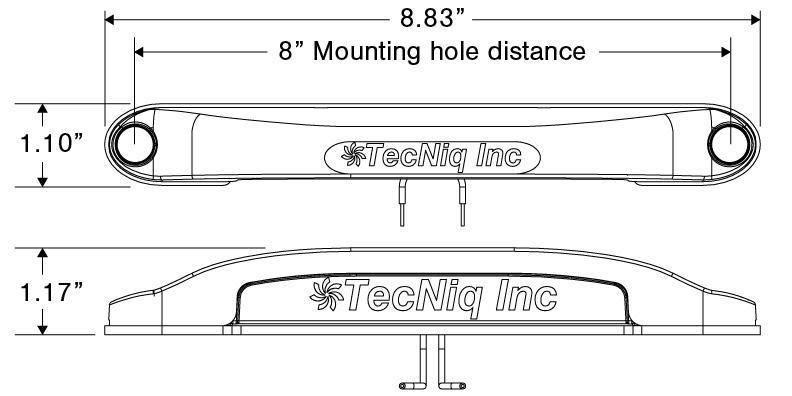

| Dimensions |
|
| LEDs | 6 |
| Lumens | 540 |
| Voltage | 9-14VDC |
| Current | 0.21A -0.29A |
| Connectors | 9" Unsheathed Pigtail |
| Mounting | Surface Mounted vertically |
| LED Colors | White |

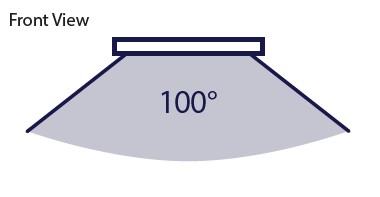

| Angle |
|
| Wire Colors |
Black -Ground White - Positive |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| D17-30S0-1 |
Surface Mount RGB Accent Light
|
 |
 |
30 | Pigtail (9") | |
| D17-A0S0-1 |
Surface Mount Amber Accent Light
|
 |
|
30 | Pigtail (9") | |
| D17-BB00-1 |
Porch/Accent Light Blue
|
 |
|
30 | Pigtail (9") | |
| D17-W0S0-1 |

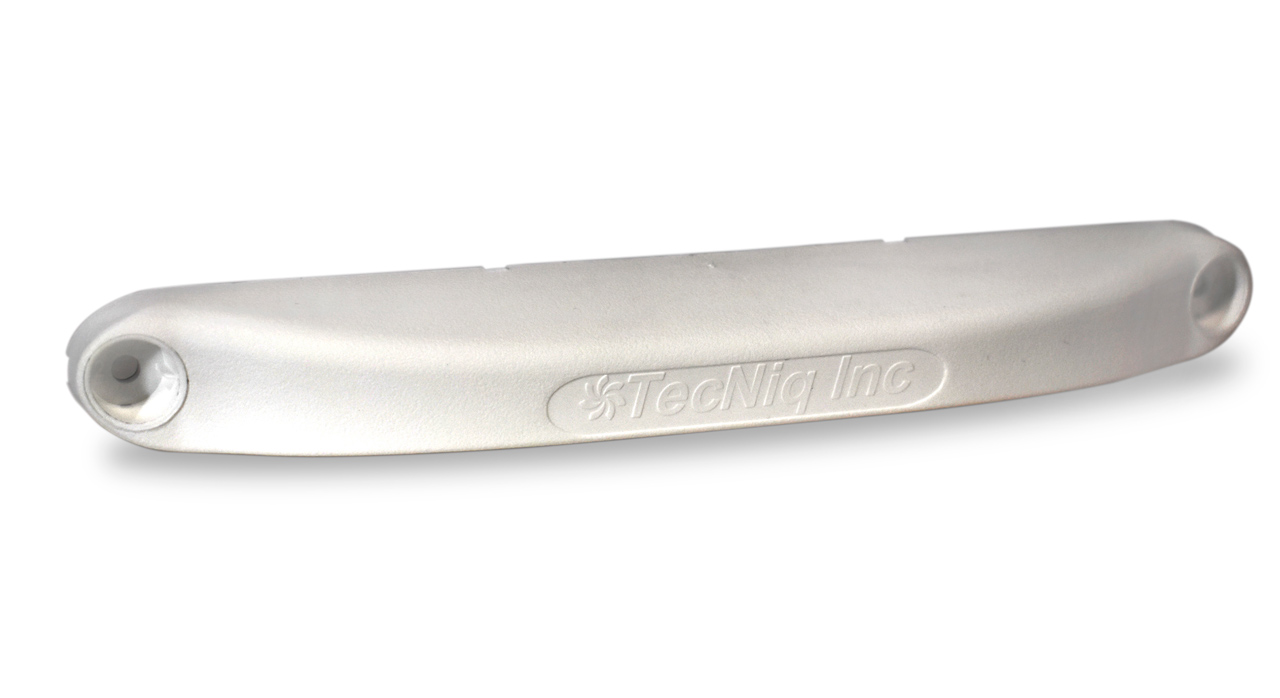

Surface Mount White Accent Light
|
 |
|
30 | Pigtail (9") | |
| D17-WB00-1 |
Porch/Accent Light Black
|
|
|
30 | Pigtail (9") | |
| D17-WS00-1 |

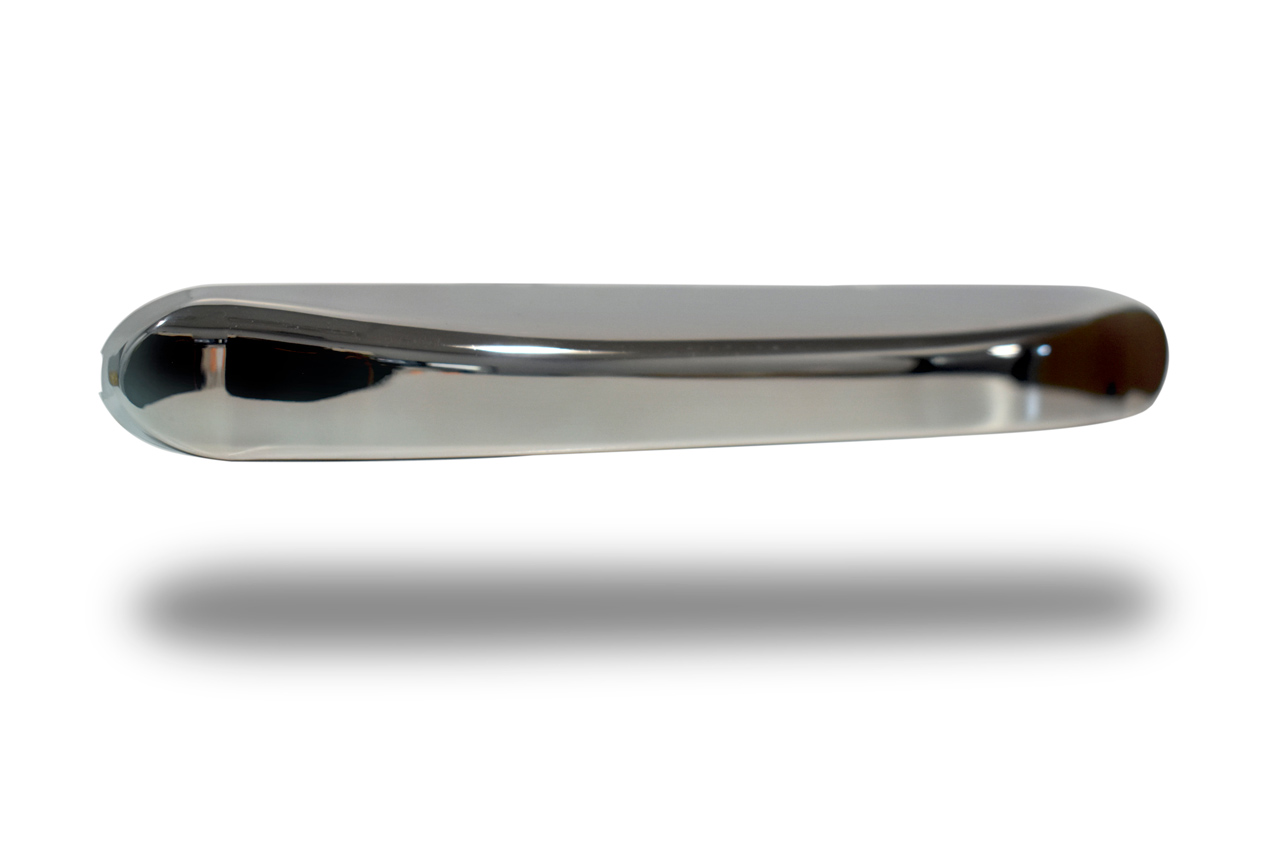

Porch/Accent Light with Stainless Cover
|
|
|
30 | Pigtail (9") | |
| D17-WW00-1 |
Porch/Accent Light White
|
|
|
30 | Pigtail (9") |
