D06 45° Accent/Step Light
D06 45° Accent/Step Light
Technical Features
- Perfect for accent, steps, walkways
- IP68 rated - Water and dust proof
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- Durable impact resistant lens
- Exceeds FMVSS 108 standards
- Surface mount installation with two fasteners
- Life performance: 100,000 hours
- WIRE COLORS
Black – Ground, White – Positive

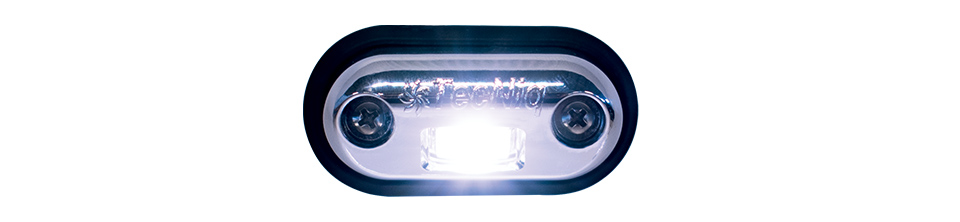

Our 45 degree step light is UV resistant, IP68 rated and has 100,000 hours of life performance. This light comes complete with chrome case and is easily surface mounted using two screws. It is versatile and can be utilized as accent lighting, on steps or in walkways.
| Dimensions |
|
| LEDs | 1 |
| Lumens | 115 |
| Voltage | 9-14VDC |
| Current | 0.11A-0.14A- white |
| Connectors | 9" Sheathed |
| Mounting | Mounts using (2) screws. Ø0.15" screw hole |
| LED Colors | White |
| Wire Colors |
Black - Ground White - Positive |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| D06-0G00-1 |
Step Light 45 Deg. Gasket
|
50 | - | |||
| D06-WB00-1 |
Step Light White 45 Deg Blk Case
|
 |
 |
|||
| D06-WC00-1 |
Step Light White 45 Deg. W/Chrome Case
|
|
|
50 | Sheathed Pigtail (9") | |
| D06-WC0F-1 |
**Step Light White 45 Deg. Chrome Case xT04-2P Connector
|
|
|
