D03 Linear Area/Accent Lights
D03 Linear Area/Accent Lights
Technical Features

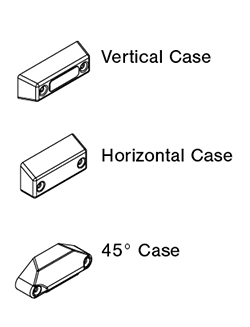

- Available with three different mounting covers - Horizontal, Vertical, and 45°
- High clarity lens design emits a light projection range of 180° wide
- Perfect for accent or step lighting
- IP68 rated - Water and dust proof
- Corrosion resistant 316 Stainless Steel covers
- Surface mount installation with two fasteners
- White LED model provides 120 lumens
- Available in color changing RGB option
- WIRE COLORS
Black – Ground, Colored (LED Color) – Positive

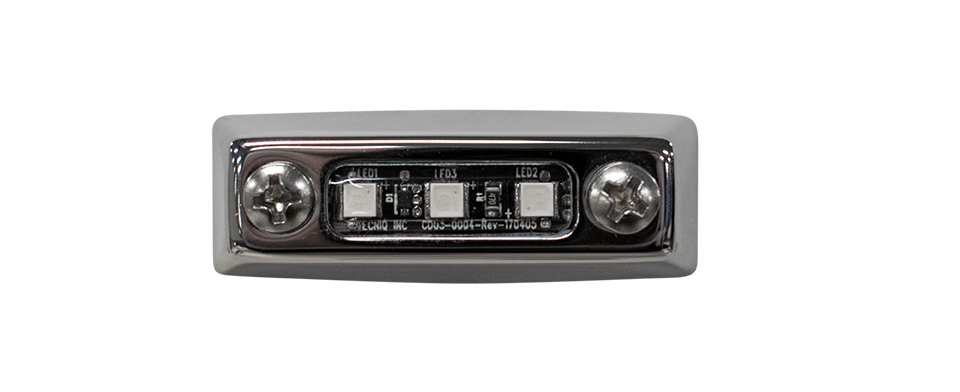

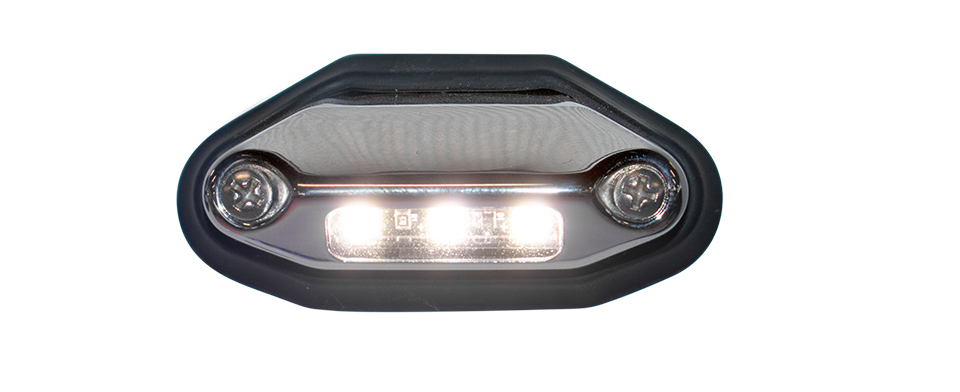

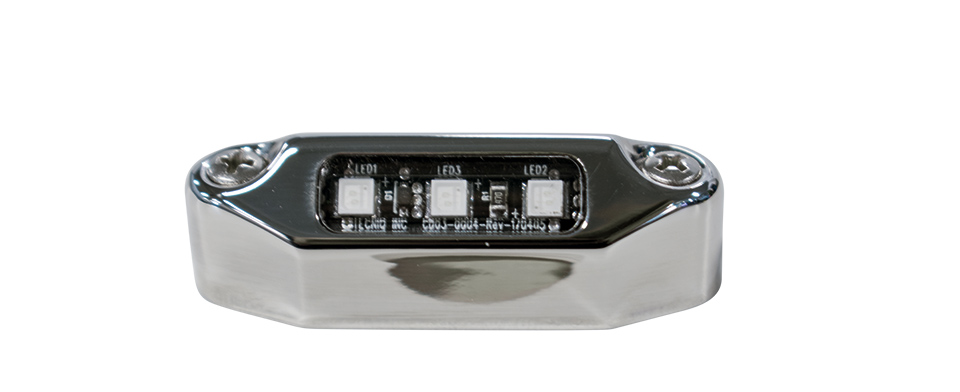

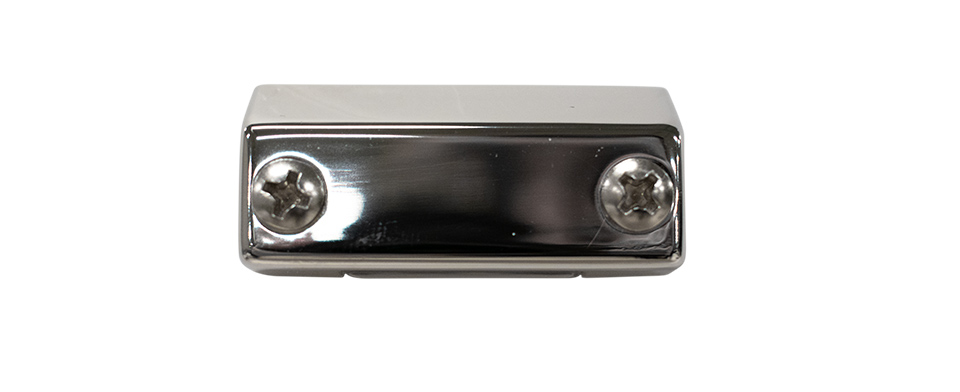

TecNiq's D03 linear area or accent lights are sleek LEDs offering up to 120 lumens of light. Available with either horizontal, vertical, or 45° mounting covers, these lights can provide great illumination to small or high traff areas. The D03 comes in RGB, Blue, Green, Red, Amber, or White, and is a surface mount light.

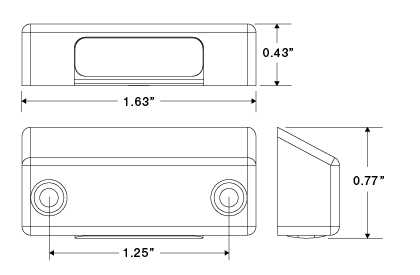

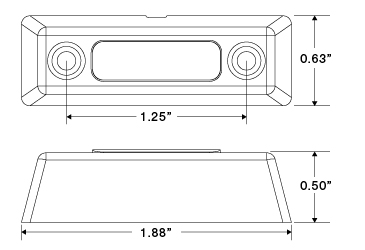

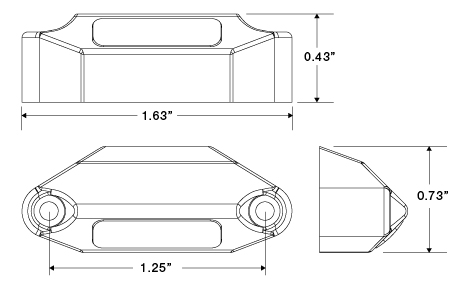

| Dimensions |
|
| LEDs | 3 |
| Lumens | 120 |
| Voltage | 9-14VDC |
| Current | 0.07A-0.09A |
| Connectors | 7" |
| Mounting | Mounts using (2) #4 screws |
| LED Colors | Red • Amber • Green • Blue • White • RGB |
| Angle |
|
| Wire Colors |
Colored (LED Color) - Ground Black - Positive |
| Ground | Colored |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| D03-0B45-1 |
Mini Light Black 45 Degree Case
|
50 | - | |||
| D03-0BH0-1 |
Mini Light Black Horizontal Case
|
50 | - | |||
| D03-0BV0-1 |
Mini Light Black Vertical Case
|
50 | - | |||
| D03-0G00-1 |
D03 Gasket
|
50 | - | |||
| D03-0S45-1 |
D03 Stainless 45 Degree Cover
|
50 | - | |||
| D03-0SH0-1 |
D03 Horizontal Stainless Cover
|
50 | - | |||
| D03-0SV0-1 |
D03 Vertical Stainless Cover
|
50 | - | |||
| D03-0W45-1 |
Mini Light White 45 Degree Case
|
50 | - | |||
| D03-0WH0-1 |
Mini Light White Horizontal Case
|
50 | - | |||
| D03-0WV0-1 |
Mini Light White Vertical Case
|
50 | - | |||
| D03-3000-1 |
Mini Light Linear Body RGB
|
 |
 |
50 | Pigtail (9") | |
| D03-30SA-1 |
Mini Light Linear Body RGB Sheathed w xTM06-4S
|
|
|
50 | ||
| D03-345F-1 |
Mini Light Linear Body RGB Deutsch Conn
|
|
|
|||
| D03-A000-1 |
Mini Light Linear Body Amber
|
 |
|
50 | Pigtail (9") | |
| D03-A450-1 |
Mini Lamp Body 45 Degree Amber
|
|
|
50 | Pigtail (9") | |
| D03-B000-1 |
Mini Light Linear Body Blue
|
 |
|
50 | Pigtail (9") | |
| D03-B450-1 |
Mini Lamp Body 45 Degree Blue
|
|
|
50 | Pigtail (9") | |
| D03-G000-1 |
Mini Light Linear Body Green
|
 |
|
50 | Pigtail (9") | |
| D03-G450-1 |
Mini Lamp Body 45 Degree Green
|
|
|
50 | Pigtail (9") | |
| D03-R000-1 |
Mini Light Linear Body Red
|
 |
|
50 | Pigtail (9") | |
| D03-R450-1 |
Mini Lamp Body 45 Degree Red
|
|
|
50 | Pigtail (9") | |
| D03-W000-1 |
Mini Light Linear Body White
|
 |
|
50 | Pigtail (9") | |
| D03-W450-1 |
Mini Lamp Body 45 Degree White
|
|
|
50 | Pigtail (9") | |
| D03-W450F-1 |
White 3LED Mini Linear Accent 45 Degree W/ DTM04 Connector
|
|
|
50 |
