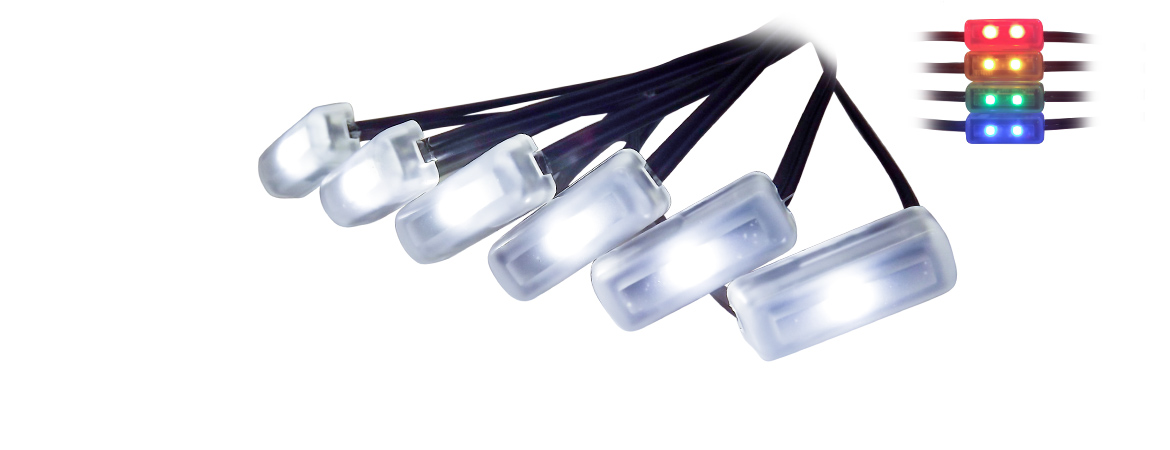

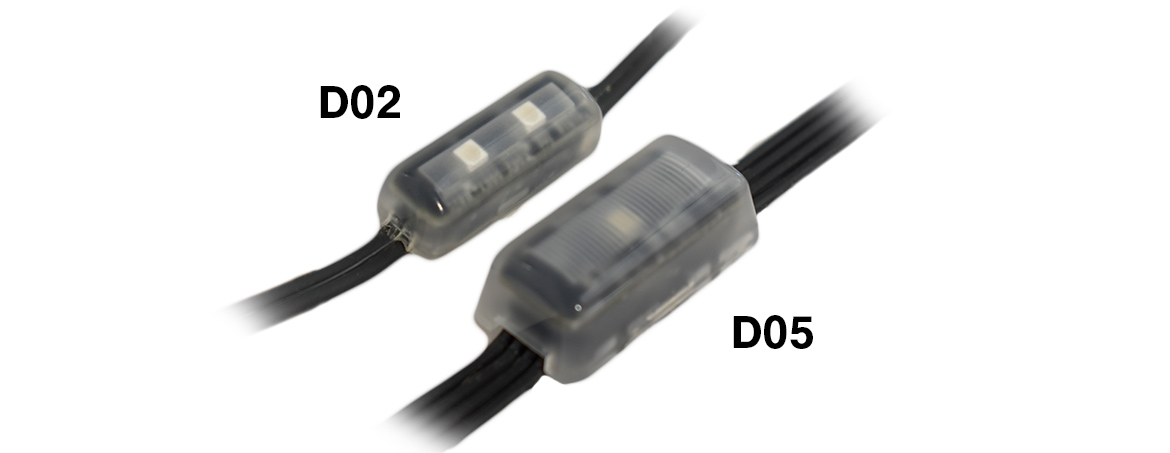

D02 D05 Aerial Lighting Solutions
D02 D05 Aerial Lighting Solutions
Technical Features
- Provides an impressive 50 lumens per pod (white)
- Sealed light is vibration and water proof
- Up to 100 lamps per string, spaced 14 inches

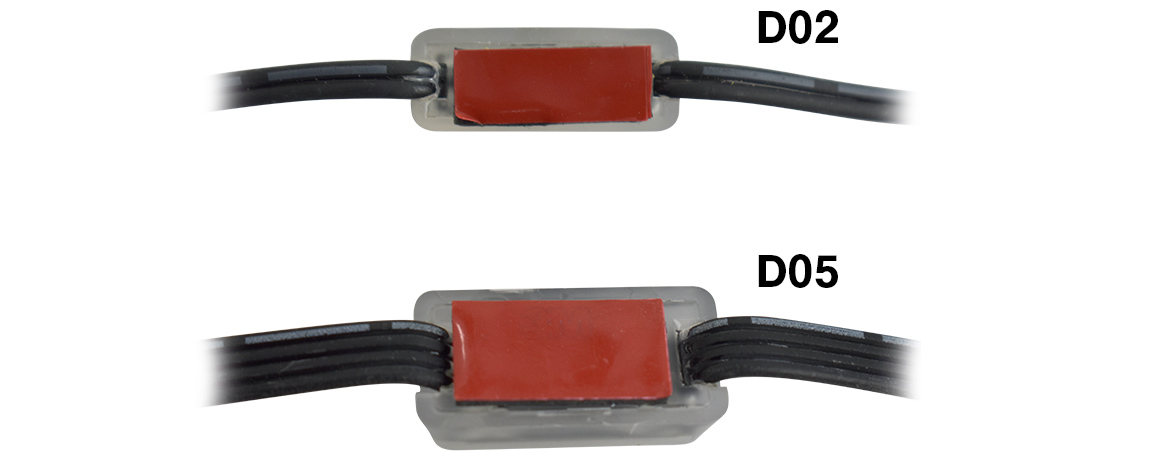

- Easily installed with 3M adhesive tape back of lamp
- Life performance: 50,000 hours
- WIRE COLORS
Black – Ground, Black (Gray Dashes) – Positive
Though designed for use on aerial ladders, this light's unique form makes it versatile for use in other applications. Designed durable enough to handle harsh outdoor environments, yet their modern styling allows them to be used as an interior design feature or accent lighting. The modular design allows for any one light to be replaced without major rework.

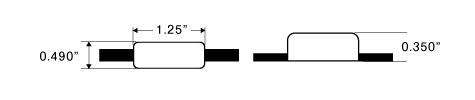

| Dimensions |
|
| LEDs | 1 per lamp |
| Lumens | 50 |
| Voltage | 9-14VDC |
| Current |
0.03A-0.035A blue/green 0.06A-0.08A red/amber 0.07A-0.09A white |
| Connectors | 14" |
| Mounting | Mounts with secure 3M tape |
| LED Colors | Blue • White • Green • Red • Amber |
| Angle |
|
| Wire Colors |
Black - Ground Black (gray dashes) - Positive |
| Ground | Black |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| D02-A001-1 |
Ladder Light Amber 1 Section - 14" Section Length
|
 |
 |
Pigtail | ||
| D02-B001-1 |
Ladder Light Blue 1 Sections - 14" Section Length
|
 |
|
Pigtail | ||
| D02-B060-1 |
Ladder Light Blue 60 Sections - 14" Section Length
|
|
|
|||
| D02-G001-1 |
Ladder Light Green 1 Sections - 14" Section Length
|
 |
|
Pigtail | ||
| D02-R001-1 |
Ladder Light Red 1 Sections - 14" Section Length
|
 |
|
Pigtail | ||
| D02-R050-1 |
Ladder Light Red 50 Sections - 14" Section Length
|
|
|
|||
| D02-R060-1 |
Ladder Light Red 60 Sections - 14" Section Length
|
|
|
|||
| D02-R086-1 |
Ladder Light Red 86 Sections - 14" Section Length
|
|
|
|||
| D02-W001-1 |
Ladder Light White1 Sections - 14" Section Length
|
 |
|
Pigtail | ||
| D02-W031-1 |
Ladder Light White 31 Sections - 14" Section Length
|
|
|
|||
| D02-W060-1 |
Ladder Light White 60 Sections - 14" Section Length
|
|
|
|||
| D05-3008-1 |
Ladder Light RGB 08 Section - 14" Section Length
|
 |
|
|||
| D05-3020-1 |
Ladder Light RGB 20 Section - 14" Section Length
|
|
|
Pigtail | ||
| D05-3021-1 |
Ladder Light RGB 21 Section - 14" Section Length
|
|
|
Pigtail | ||
| D05-3026-1 |
Ladder Light RGB 26 Section - 14" Section Length
|
|
|
Pigtail | ||
| D05-3100-1 |
Ladder Light RGB 100 Sections - 14" Section Length
|
|
|
Pigtail | ||
| D05-Z100-1 |
Ladder Light RGB 100 Sections - 13 9/32" Section Length
|
|
|
Pigtail |
