T90 : Mid-Ship Turn Signal/Side Marker

* Some part numbers for this product ship without mounting hardware. Please be sure to add mounting hardware to the PO, if needed.

Brand new for TecNiq, the California Mid-Turn
TecSeal Urethane Potting - Guaranteed Circuit Board Protection
Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
IP68 Rated - Dust and water proof
Reliable performance over 100,000 hours
A breakaway from traditional designs
Lifetime Warranty
DOT Rated
WIRE COLORS
White – Ground, Red – High/Turn, Black – Low/Dim

Related Products

Add to PO

6" Oval Grommet

Add to PO

6" Oval Surface Mount Trim Ring Black

Add to PO

6" Oval Surface Mount Trim Ring Chrome

Add to PO

.090 Thick Neoprene Gasket

Add to PO

SS trim ring for oval tail lamp

6" Oval Stop/Tail/Turn Grommet Mount

6" Oval LED High Visibility STT

PC/P2 Rated Miniature Side Marker

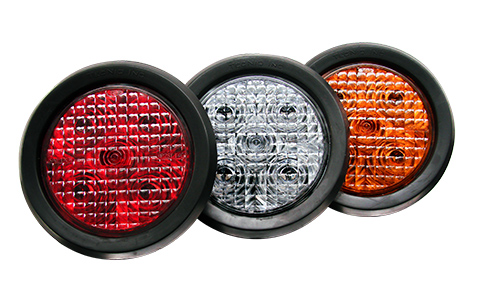

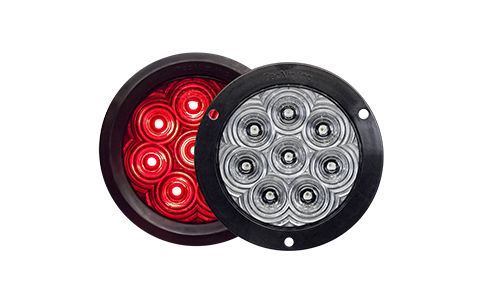

4" Round Stop/Tail/Turn

4" High Visibility Stop/Tail/Turn

2" Round, Low-Profile Side Marker

2.5" low-profile Side Marker w/reflector

Product Description

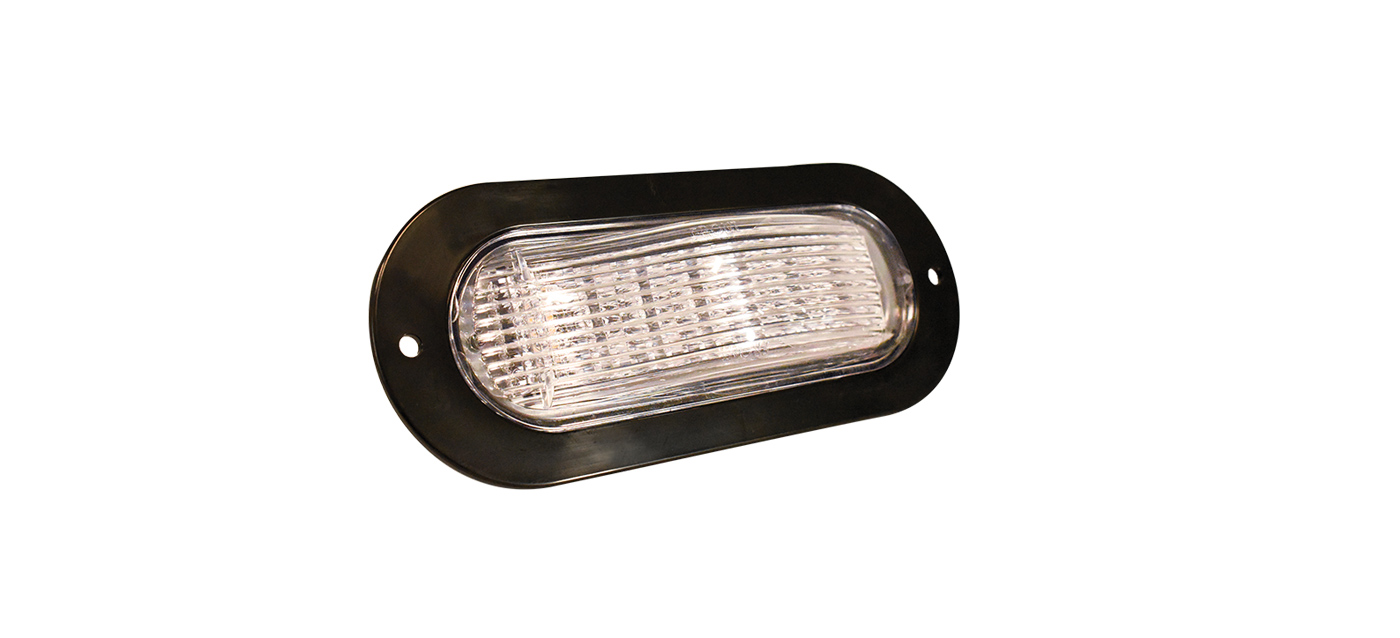

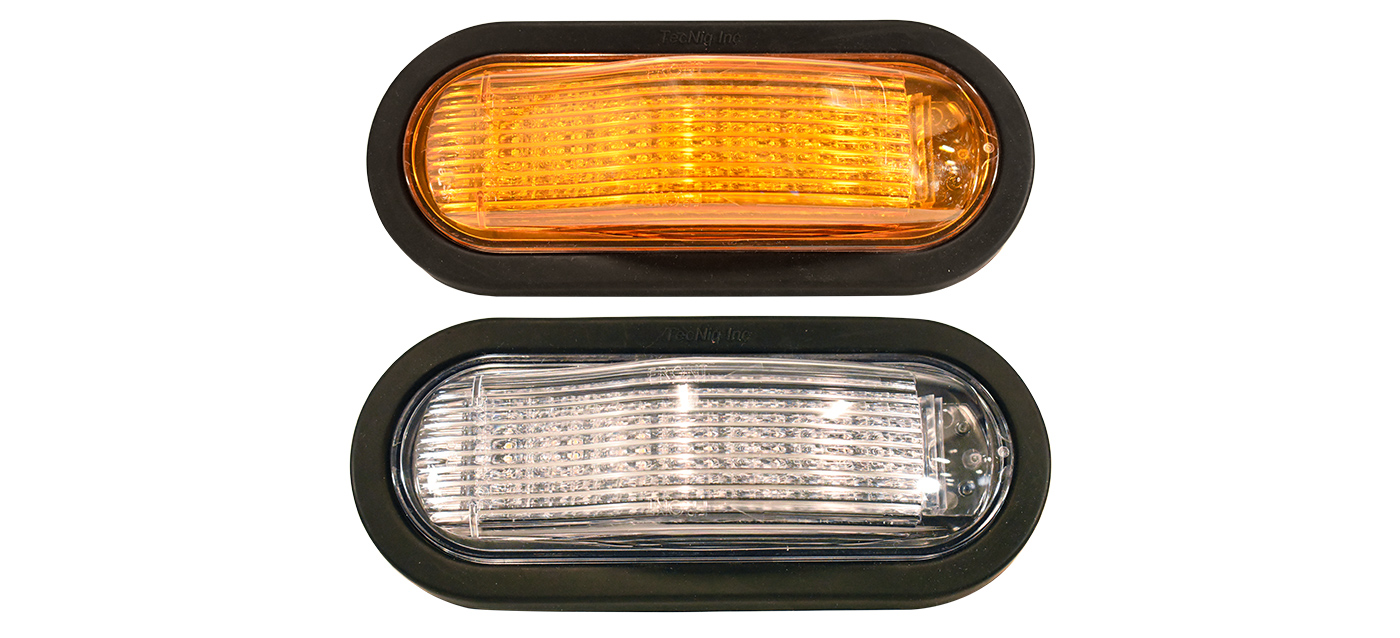

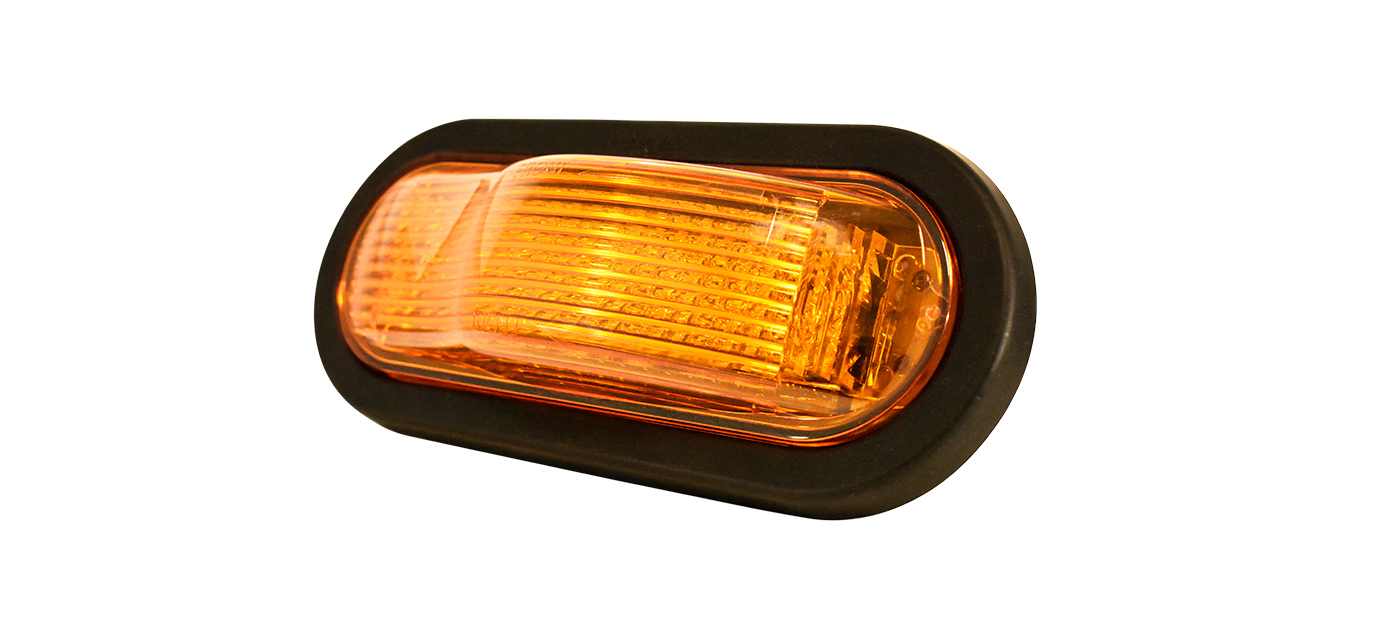

The T90 by TecNiq is a true Mid-Ship Turn Signal/Side Marker. Available with either Amber or Clear lensing, the T90 offers a breakaway from traditional designs, with sleaker lines and a more elegant form. The T90 is reliable for over 100k hours, features 7 high quality LEDs that operate at 9-14V DC. The T90 can be ordered with Amp, Tri-Pole, or 9" pigtail connectors and is offered in flange, surface, and grommet mount models.

Downloads

Document	Size
T90 Product Sheet	897 KB
T90 Specification Sheet	706 KB

Current:

0.25A-0.34A (bright)
0.04A-0.05A (dim)

Connector:

LED Colors:

Amber

Wire Colors:

White Wire	—	Ground
Red Wire	—	High/Turn
Black Wire	—	Low/Dim

Mounting Styles:

Part Numbers

Part Number	Description	LED – Lens	StdPack	Connector
T60-0G00-1	6" Oval Grommet		-	-
T61-0B00-1	6" Oval Surface Mount Trim Ring Black		-	-
T61-0C00-1	6" Oval Surface Mount Trim Ring Chrome		-	-
T61-0G00-1	.090 Thick Neoprene Gasket		-	-
T62-0S00-1	SS trim ring for oval tail lamp		-	-
T90-AAFA-1	Midturn Amber Lens Flange Mount Amp		112	Amp
T90-AAFP-1	Midturn Amber Lens Flange Mount Pigtail		112	Pigtail
T90-AAFT-1	Midturn Amber Lens Flange Mount Tripole		112	Tri Pole
T90-AAGA-1	Midturn Amber Lens Grommet Mount Amp		80	Amp
T90-AAGP-1	Midturn Amber Lens Grommet Mount Pigtail		80	Pigtail
T90-AAGT-1	Midturn Amber Lens Grommet Mount Tripole		80	Tri Pole
T90-AASA-1	Midturn Amber Lens Surface Mount Amp		80	Amp
T90-AASP-1	Midturn Amber Lens Surface Mount Pigtail		80	Pigtail
T90-AAST-1	Midturn Amber Lens Surface Mount Tripole		80	Tri Pole
T90-ACFA-1	Midturn Clear Lens Flange Mount Amp		112	Amp
T90-ACFP-1	Midturn Clear Lens Flange Mount Pigtail		112	Pigtail
T90-ACFT-1	Midturn Clear Lens Flange Mount Tripole		112	Tri Pole
T90-ACGA-1	Midturn Clear Lens Grommet Mount Amp		80	Amp
T90-ACGP-1	Midturn Clear Lens Grommet Mount Pigtail		80	Pigtail
T90-ACGT-1	Midturn Clear Lens Grommet Mount Tripole		80	Tri Pole
T90-ACSA-1	Midturn Clear Lens Surface Mount Amp		80	Amp
T90-ACSP-1	Midturn Clear Lens Surface Mount Pigtail		80	Pigtail
T90-ACST-1	Midturn Clear Lens Surface Mount Tripole		80	Tri Pole

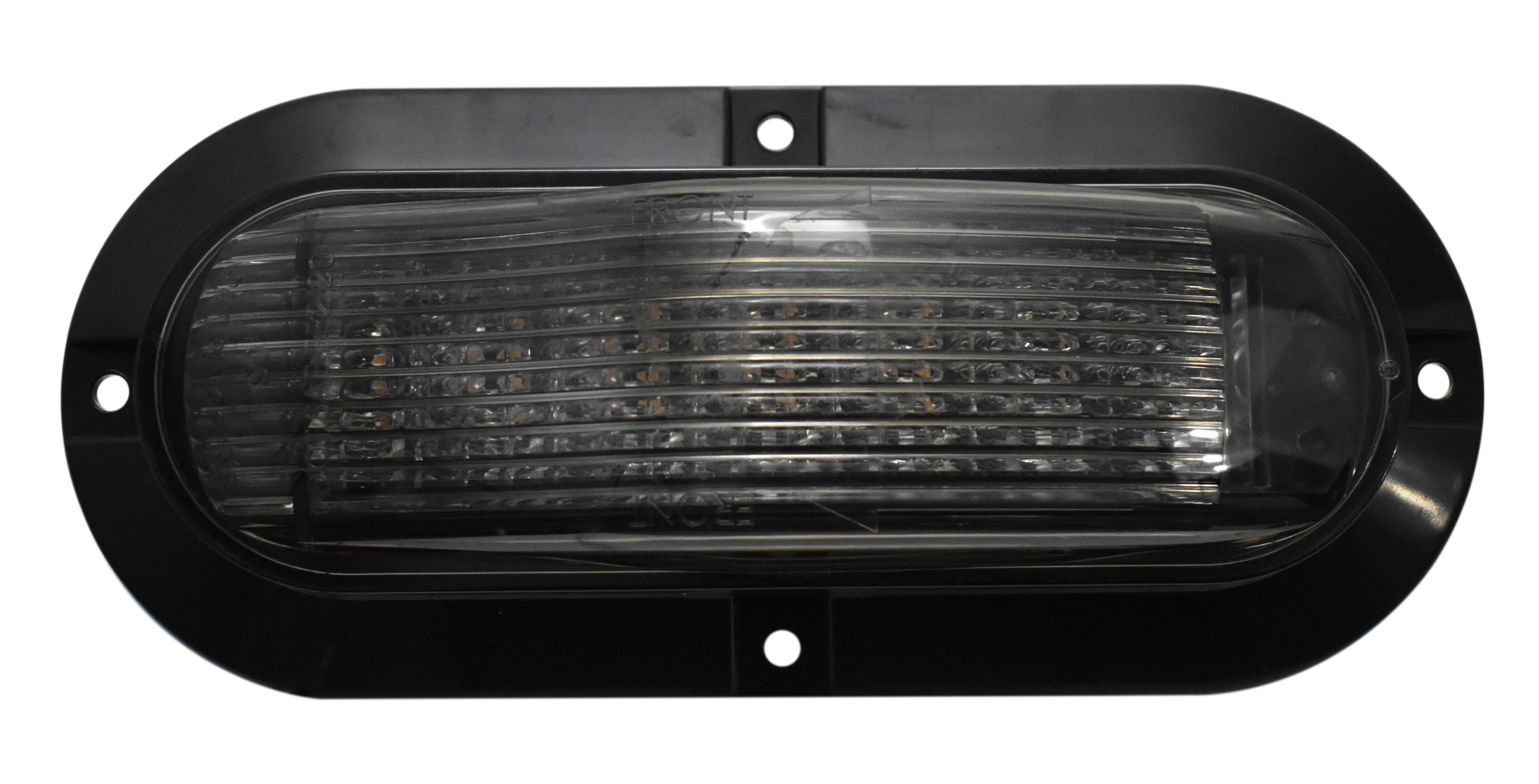

T90-ATGP-1	Midturn P2 Tinted Lens Grommet Mount Pigtail		80	Pigtail
T90-ATSP-1	Midturn Tinted Lens Surface Mount Pigtail		80	Pigtail

T90 : Mid-Ship Turn Signal/Side Marker

Related Products

Product Description

Downloads

Product Specifications

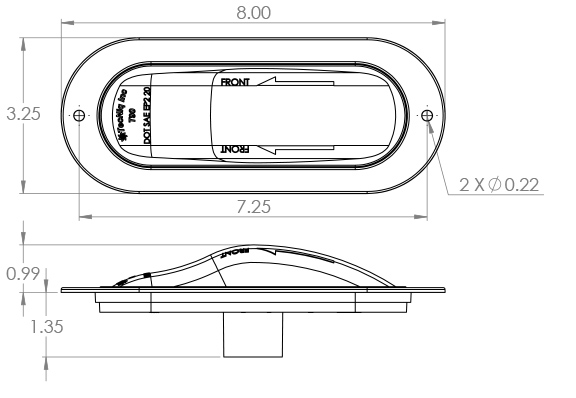

Flange Mount - 8.00"x 3.25"x 1.37"

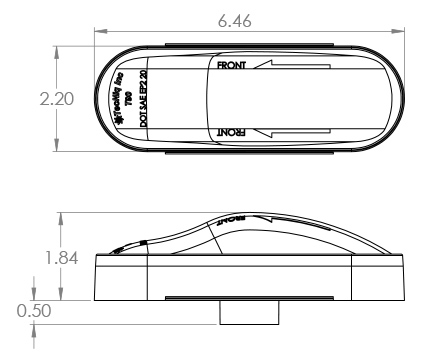

Grommet Mount - 6.45"x 2.22"x 1.48"

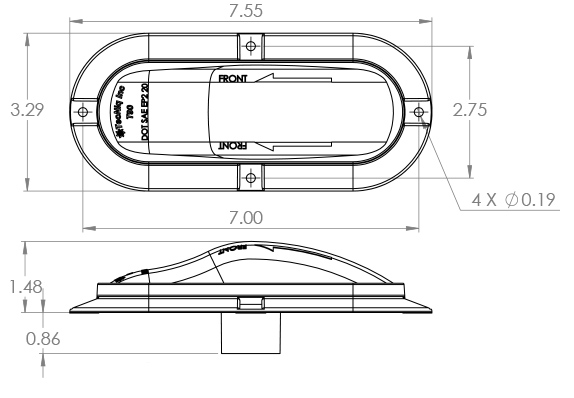

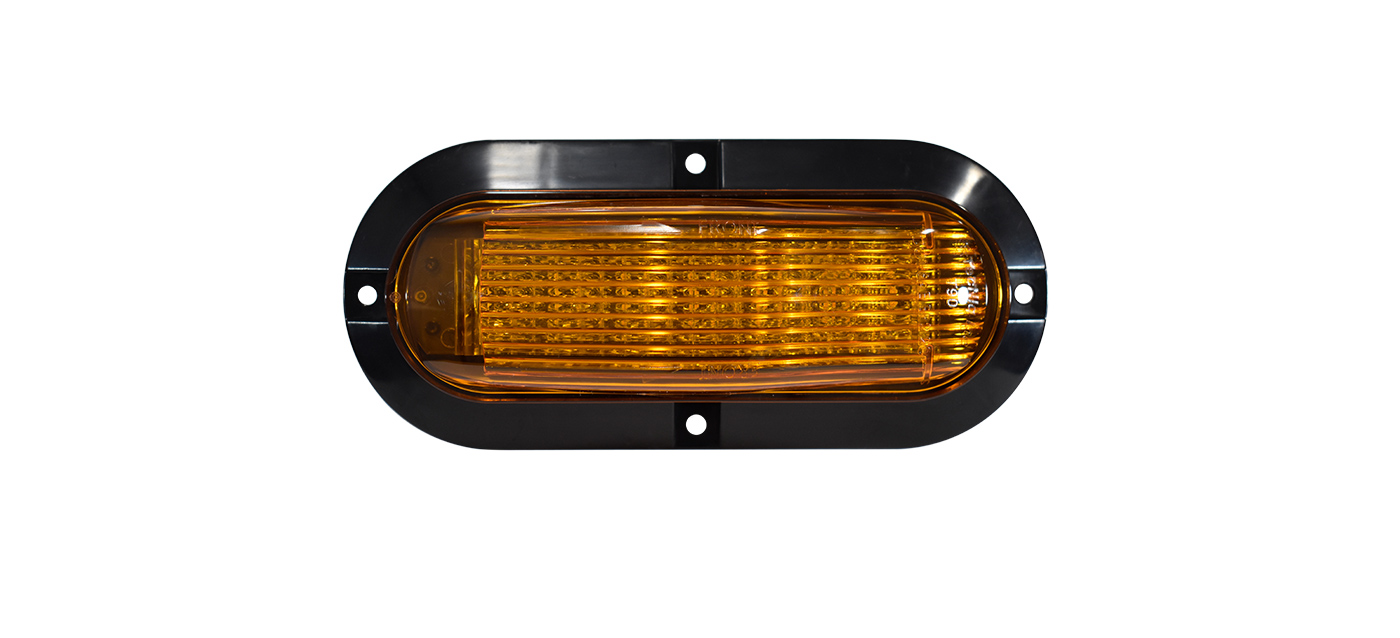

Surface Mount - 7.5"x 3.3"x 1.65"

Amp Connector

Tri-Pole Connector

9" pigtail

Part Numbers
