T68 : 6" Oval LED High Visibility STT

* Some part numbers for this product ship without mounting hardware. Please be sure to add mounting hardware to the PO, if needed.

Related Products


  Features

  • Newest addition to TecNiq's High Visibility Stop/Tail/Turn family
  • Durable impact resistant lens
  • Fits all industry standard 6" oval applications
  • Grommet, flange, and surface
  • TecSeal Urethane Potting - Guaranteed Circuit Board Protection
  • Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
  • IP68 Rated - Dust and water proof with hermetic seal
  • Meets all FMVSS 108 standards for wide and narrow vehicles
  • Reliable performance over 100,000 hours
  • Lifetime Warranty
  • WIRE COLORS
    White –
    Ground, Red – High/Turn, Black – Low/Dim

  Specifications

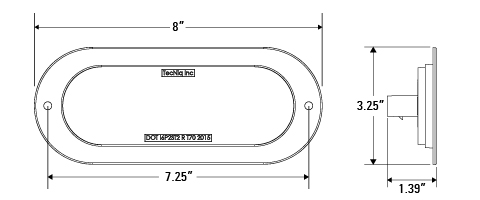

Dimensions:
LEDs: 8
Voltage: 9 - 14V DC
Current: 0.12A-0.16A Red
0.25A-0.35A White
0.125A-0.155A Amber flasher
Connector:
Mounting: Fits standard mounting holes

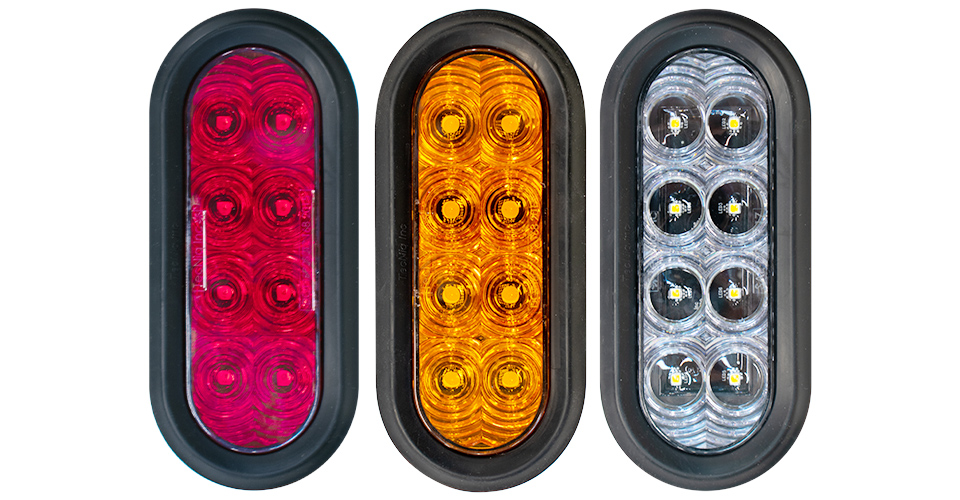

LED Colors: Red • Amber • White
Mounting Styles:
Wire Colors:
White Wirered/amber stripeGround
Red WireStop/Turn
Black WireTail

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector
T60-0G00-16" Oval Grommet   --
T68-AAZ0A-16" oval high visibility Strobe grommet mount with amp connector   120Amp
T68-AAZ0P-16" oval high visibility Strobe grommet mount with pigtail wires   140Pigtail
T68-AAZ0T-16" oval high visibility Strobe grommet mount   120Tri Pole
T68-RRF0A-16" Oval High Visibility Flange Mount STT Amp Conn.   120Amp
T68-RRF0P-16" Oval High Visibility Flange Mount STT Pig-Tail   140Pigtail
T68-RRF0T-16" Oval High Visibility Flange Mount STT Tripole Connector   120Tri Pole
T68-RRG0A-16" Oval High Visibility Grommet Mount STT Amp Conn   120Amp
T68-RRG0P-16" Oval High Visibility Grommet Mount STT Pig-Tail   140Pigtail
T68-RRG0T-16" Oval High Visibility Grommet Mount STT Tripole Connector   120Tri Pole
T68-RRS0A-16" Oval High Visibility Surface Mount STT Amp Conn   120Amp
T68-RRS0P-16" Oval High Visibility Surface Mount STT Pig-Tail   140Pigtail
T68-RRS0T-16" Oval High Visibility Surface Mount STT Tripole Connector   120Tri Pole
T68-RRSPA-16" Oval High Visibility Surface Mount STT 9in Wires w Amp Connector   120Amp
T68-WCF0A-16" Oval High Vis Reverse Clear Lens Flange Mount Amp Connector   120Amp
T68-WCF0P-16" Oval High Vis Reverse Clear Lens Flange Mount Pigtail Connector   140Pigtail
T68-WCF0T-16" Oval High Vis Reverse Clear Lens Flange Mount Tripole Connector   120Tri Pole
T68-WCG0A-16" Oval High Vis Reverse Clear Lens Grommet Mount Amp Connector   120Amp
T68-WCG0P-16" Oval High Vis Reverse Clear Lens Grommet Mount Pigtail Connector   140Pigtail
T68-WCG0T-16" Oval High Vis Reverse Clear Lens Grommet Mount Tripole Connector   120Tri Pole
T99-0010-112" 3-Pole .156" Bullet w/#6 GND Lug - Straight   -Tri Pole
T99-0020-112" 3-Pole .156" Bullet w/#6 GND Lug - 90 degree   -Tri Pole
T99-0040-1Amp - Pigtail Wire Adapter   -Amp
T99-0050-1Amp - Tripole Adapter   -Amp - Tri Pole
T99-0060-1Y Style plug with 6" wires   -Tri Pole
