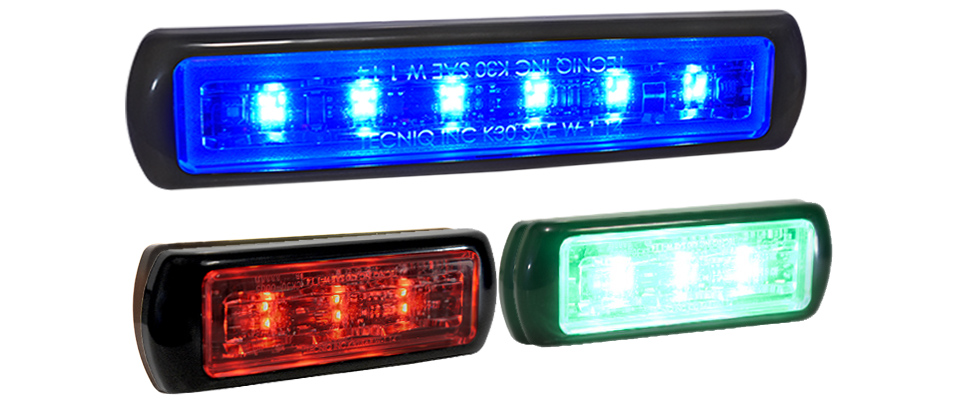

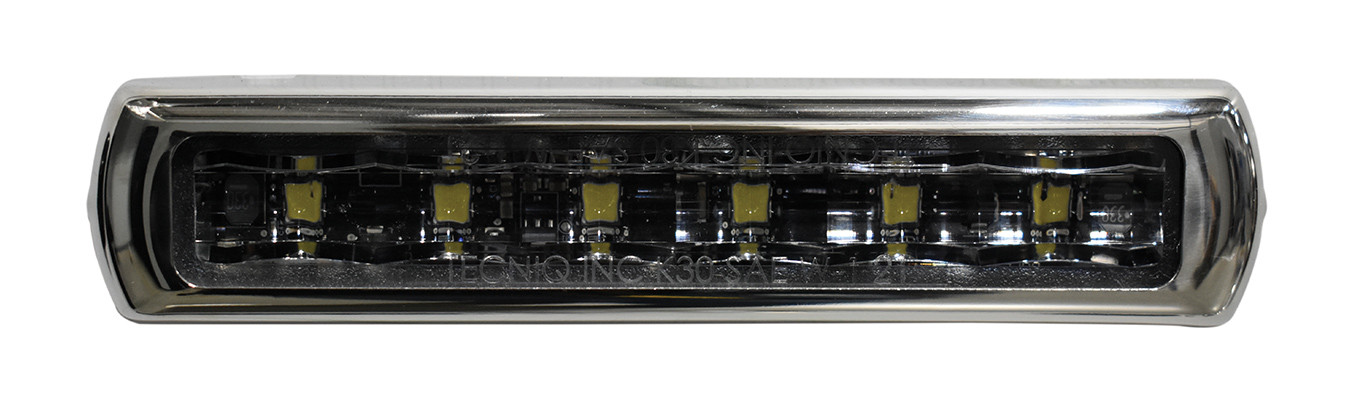

K30 : Grille Light

* Some part numbers for this product ship without mounting hardware. Please be sure to add mounting hardware to the PO, if needed.

Related Products


  Features

  • IP68 Rated - Sealed light for dust and waterproof
  • TecSeal Urethane Potting - Guaranteed circuit board protection
  • Impact resistant lens
  • UV Resistant automotive grade polycarbonate lens
  • Rated LED Life - 50,000 - 100,000 hrs
  • Lifetime limited warranty
  • Available in (3), (6), or (12) LED models
  • 21 different color and lens combinations
  • Designed, Engineered, and Assembled in the USA
  • WIRE COLORS
    Black –
    Ground, Red – Positive, White – Flash Pattern Program

  Specifications

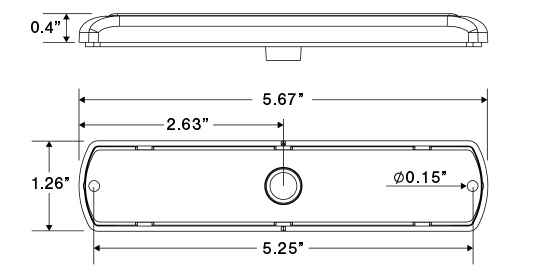

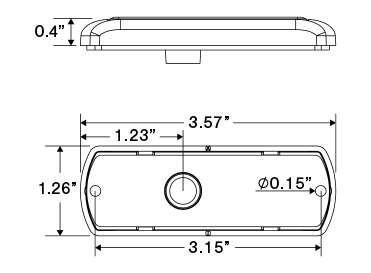

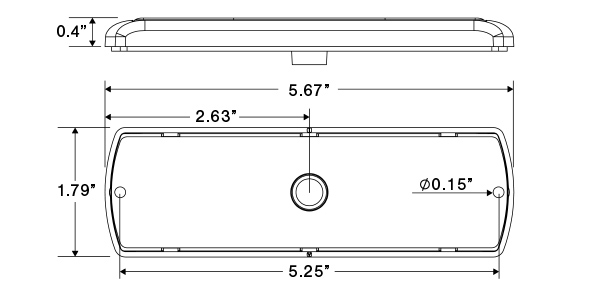

Dimensions:
LEDs: 3, 6, or 12
Voltage: 9-14 VDC
Current: 3 LED – 0.225A - 0.275A
6 LED – 0.450A - 0.550A
12 LED – 0.680A - 0.880A
Lumens: 1200
Wire: 12" pigtail
Mounting: Surface mounted
LED Colors: Red • Amber • Green • Blue • White • White/Blue • White/Green • White/Red
Wire Colors:
Black WireGround
Red Wire12/24VDC Power
White WireProgramming

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector
K30-0S02-1K30 3 LED Trim Ring SS   --
K30-0S09-1K30 6 LED Trim Ring SS   --
K30-0S14-1K30 12 LED Trin Ring SS   --
K30-AA030-1Amber Grille Flasher 3 LED Amber Lens   8012" Pigtail
K30-AA060-1Amber Grille Flasher 6 LED Amber Lens   10012" Pigtail
K30-AA120-1Amber Grille Flasher 12 LED Amber Lens   4012" Pigtail
K30-AC030-1Amber Grille Flasher 3 LED Clear Lens   8012" Pigtail
K30-AC060-1Amber Grille Flasher 6 LED Clear Lens   10012" Pigtail
K30-AC120-1Amber Grille Flasher 12 LED Clear Lens   4012" Pigtail
K30-BC030-1Blue Grille Flasher 3 LED Clear Lens   8012" Pigtail
K30-BC060-1Blue Grille Flasher 6 LED Clear Lens   10012" Pigtail
K30-BC120-1Blue Grille Flasher 12 LED Clear Lens   4012" Pigtail

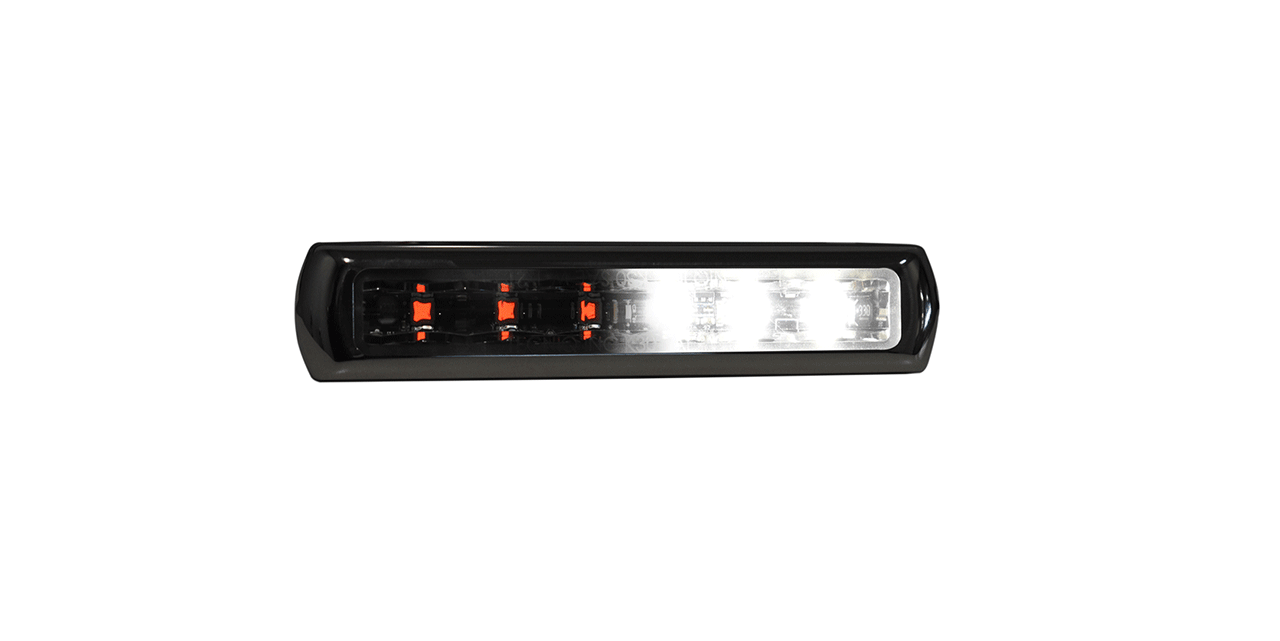

K30-BW060-1Blue/White Dual Color Grille Flasher 6 LED Clear Lens   10012" Pigtail

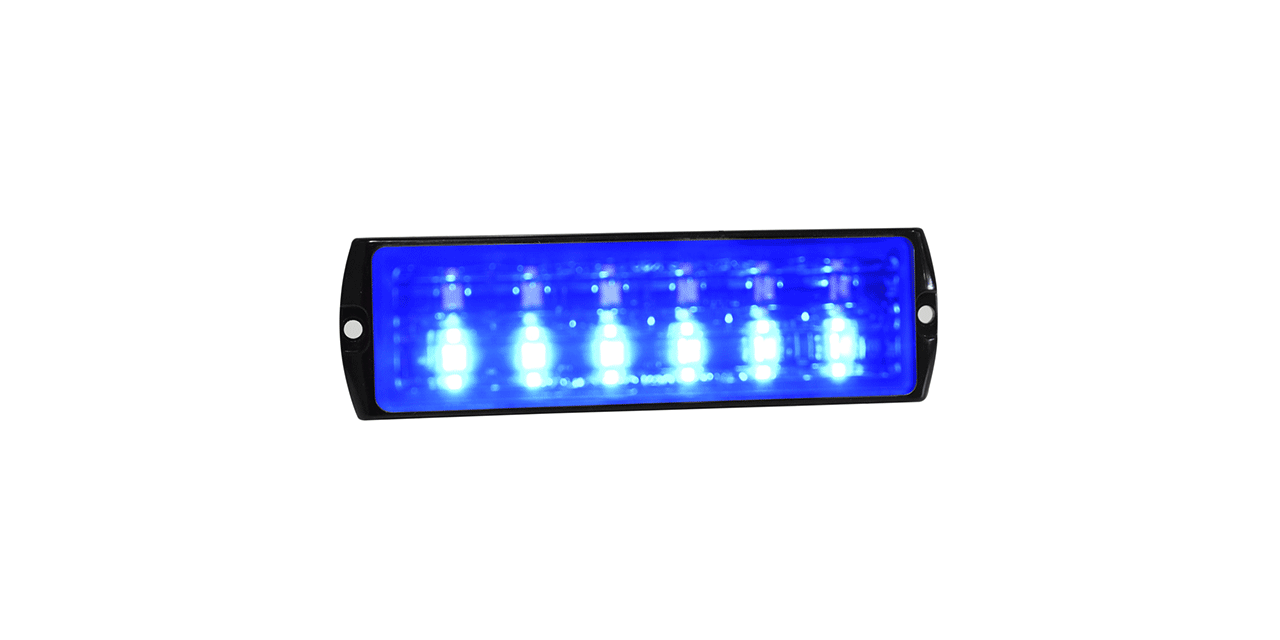

K30-BW120-1Blue/White Dual Color Grille Flasher 12 LED Clear Lens   4012" Pigtail
K30-GC030-1Green Grille Flasher 3 LED Clear Lens   8012" Pigtail
K30-GC060-1Green Grille Flasher 6 LED Clear Lens   10012" Pigtail
K30-GC120-1Green Grille Flasher 12 LED Clear Lens   4012" Pigtail
K30-GW060-1K30 Green/White Dual Color Grille Flasher 6 LED Clear Lens   10012" Pigtail
K30-GW120-1Green/White Dual Color Grille Flasher 12 LED Clear Lens   4012" Pigtail
K30-RC030-1Red Grille Flasher 3 LED Clear Lens   8012" Pigtail
K30-RC060-1Red Grille Flasher 6 LED Clear Lens   10012" Pigtail
K30-RC120-1Red Grille Flasher 12 LED Clear Lens   4012" Pigtail
K30-RR030-1Red Grille Flasher 3 LED Red Lens   8012" Pigtail
K30-RR060-1Red Grille Flasher 6 LED Red Lens   10012" Pigtail
K30-RR120-1Red Grille Flasher 12 LED Red Lens   4012" Pigtail
K30-RW060-1Red/White Dual Color Grille Flasher 6 LED Clear Lens   10012" Pigtail
K30-RW120-1Red/White Dual Color Grille Flasher 12 LED Clear Lens   4012" Pigtail
K30-WC030-1White Grille Flasher 3 LED Clear Lens   8012" Pigtail
K30-WC060-1White Grille Flasher 6 LED Clear Lens   10012" Pigtail
K30-WC120-1White Grille Flasher 12 LED Clear Lens   4012" Pigtail
