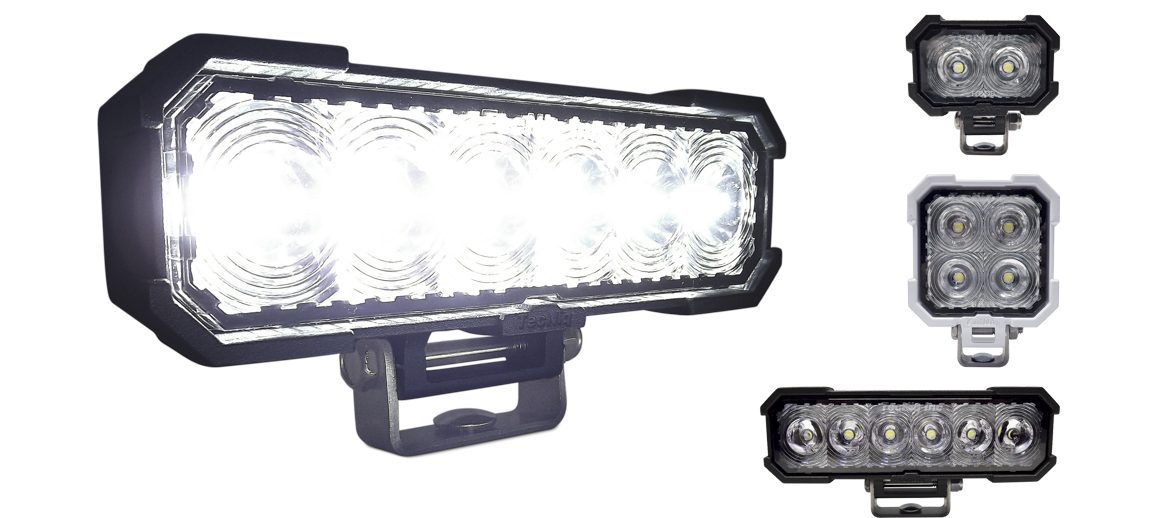

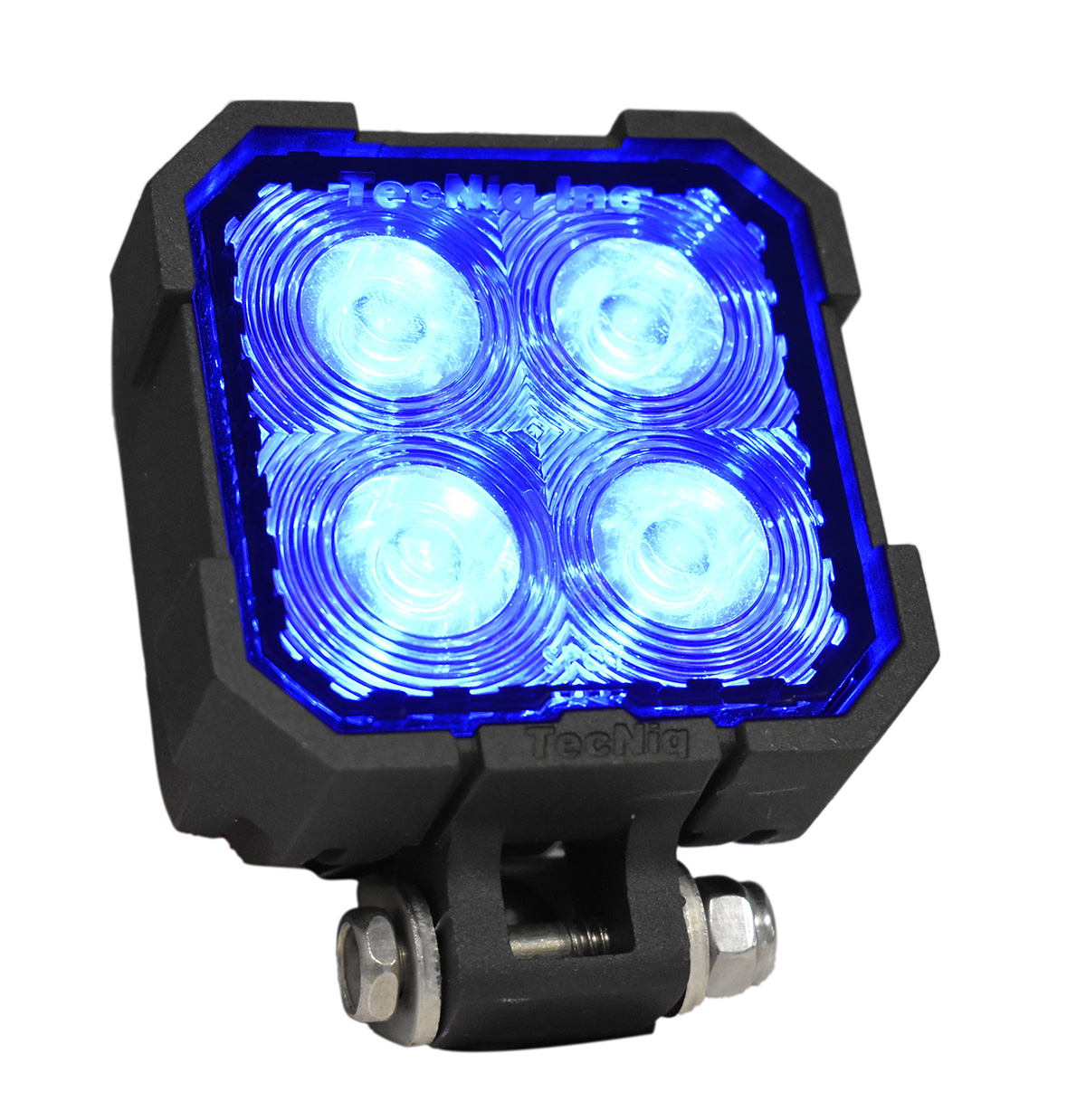

P0X : SteelHead Heavy Duty Work Lighting

Related Products


  Features

  • Designed for the most demanding task illumination applications, in the most extreme environments
  • Vibration resistant and 100% water proof
  • Models include Flood or Spot light projection

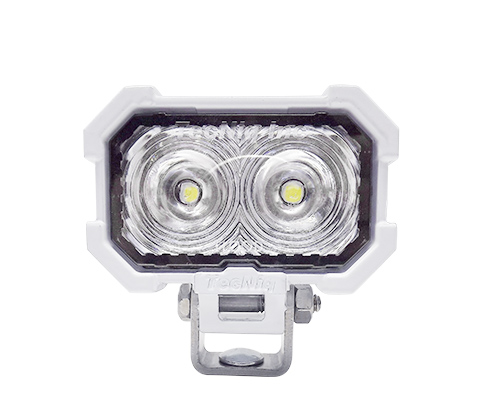

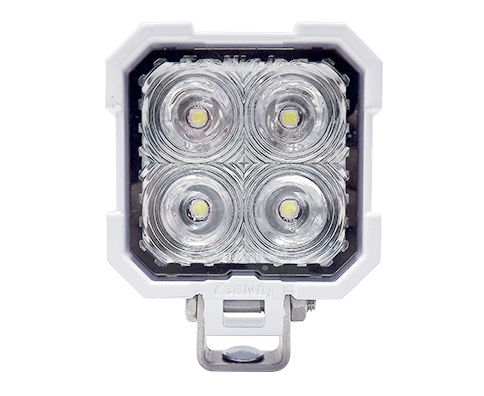

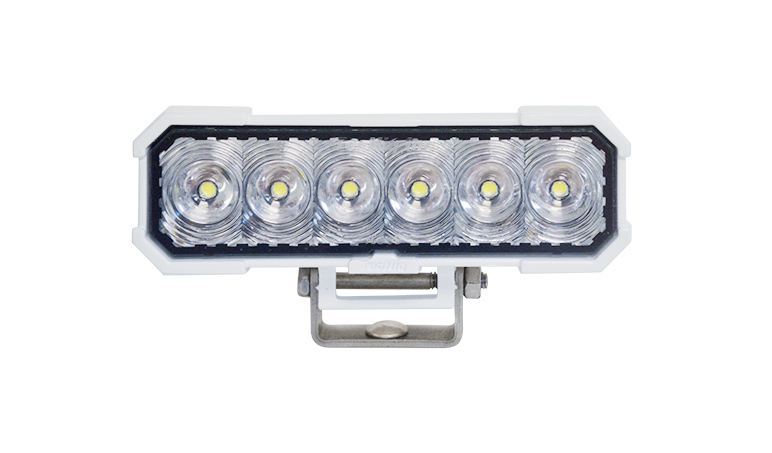

  • Available in Black or White Heavy Duty Powder Coating

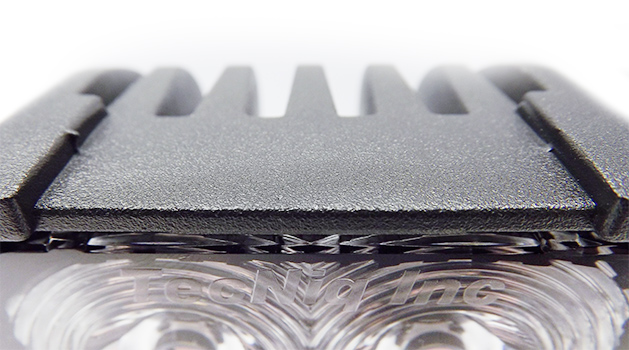

  • Proprietary thermal management provides powerful performance in a small package
  • Operating voltage range of 9 - 30 VDC
  • IP68 Rated
  • Reliable performance over 50,000 hours
  • Stainless Steel mounting hardware included
  • WIRE COLORS
    Black –
    Ground, White – Positive

  Specifications

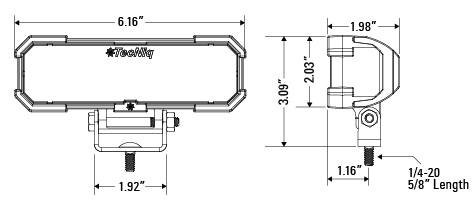

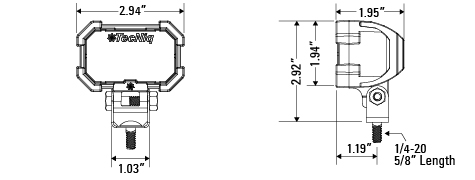

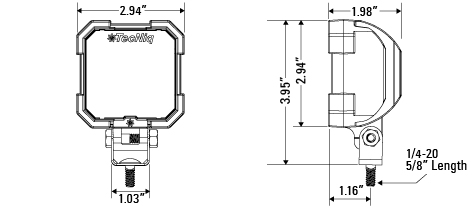

Dimensions:
LEDs: 2, 4, or 6
Lumens: 750 Lumens (2 LED)
1100 Lumens (4 LED)
1900 Lumens (6 LED)
Voltage: 9 - 30VDC
Current (12V/24V):

2 LED (12V/24V)

White – 0.52A/0.26A

4 LED (12V/24V)

Amber – 0.85A/0.425A
Blue – 1.20A/0.60A
Green – 1.35A/0.675A
Red – 0.55A/0.275A
White – 0.66A/0.33A

6 LED (12V/24V)

Amber – 1.30A/0.65A
Blue – 1.75A/0.875A
Green – 2.00A/1.00A
Red – 0.82A/0.41A
White – 1.70A/0.85A
Mounting: Mounts with 5/8" mounting bolt and hardware (included)
Wire: 9" Pigtail
Wire Colors:
Black WireGround
White Wire12/24VDC Power

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector
P02-WBFP-1SteelHead Flood Lamp 2 LED Black Finish Pigtail Wires   4Sheathed Pigtail
P02-WBSP-1SteelHead Spot Lamp 2 LED Black Finish Pigtail Wires   4Sheathed Pigtail
P02-WWFP-1SteelHead Flood Lamp 2 LED White Finish Pigtail Wires   4Sheathed Pigtail
P02-WWSP-1SteelHead Spot Lamp 2 LED White Finish Pigtail Wires   4Sheathed Pigtail
P04-ABFP-1Amber SteelHead Flood Lamp 4 LED Black Finish Pigtail Wire   2Sheathed Pigtail
P04-ABSP-1Amber SteelHead Spot Lamp 4 LED Black Finish Pigtail Wires   2Sheathed Pigtail
P04-BBFP-1Blue SteelHead Flood Lamp 4 LED Black Finish Pigtail Wire   2Sheathed Pigtail
P04-BBSP-1Blue SteelHead Spot Lamp 4 LED Black Finish Pigtail Wires   2Sheathed Pigtail
P04-GBFP-1Green SteelHead Flood Lamp 4 LED Black Finish Pigtail Wire   2Sheathed Pigtail
P04-GBSP-1Green SteelHead Spot Lamp 4 LED Black Finish Pigtail Wires   2Sheathed Pigtail
P04-RBFP-1Red SteelHead Flood Lamp 4 LED Black Finish Pigtail Wire   2Sheathed Pigtail
P04-RBSP-1Red SteelHead Spot Lamp 4 LED Black Finish Pigtail Wires   2Sheathed Pigtail
P04-WBFP-1White SteelHead Flood Lamp 4 LED Black Finish Pigtail Wire   2Sheathed Pigtail
P04-WBSP-1White SteelHead Spot Lamp 4 LED Black Finish Pigtail Wires   2Sheathed Pigtail
P04-WWFP-1SteelHead Flood Lamp 4 LED White Finish Pigtail Wires   2Sheathed Pigtail
P04-WWSP-1SteelHead Spot Lamp 4 LED White Finish Pigtail Wires   2Sheathed Pigtail
P06-ABFP-1Amber SteelHead Flood Lamp 6 LED Black Finish Pigtail Wire   2Sheathed Pigtail
P06-ABSP-1Amber SteelHead Spot Lamp 6 LED Black Finish Pigtail Wires   2Sheathed Pigtail
P06-BBFP-1Blue SteelHead Flood Lamp 6 LED Black Finish Pigtail Wire   2Sheathed Pigtail
P06-BBSP-1Blue SteelHead Spot Lamp 6 LED Black Finish Pigtail Wires   2Sheathed Pigtail
P06-GBFP-1Green SteelHead Flood Lamp 6 LED Black Finish Pigtail Wire   2Sheathed Pigtail
P06-GBSP-1Green SteelHead Spot Lamp 6 LED Black Finish Pigtail Wires   2Sheathed Pigtail
P06-RBFP-1Red SteelHead Flood Lamp 6 LED Black Finish Pigtail Wire   2Sheathed Pigtail
P06-RBSP-1Red SteelHead Spot Lamp 6 LED Black Finish Pigtail Wires   2Sheathed Pigtail
P06-WBFP-1White SteelHead Flood Lamp 6 LED Black Finish Pigtail Wires   2Sheathed Pigtail
P06-WBSP-1White SteelHead Spot Lamp 6 LED Black Finish Pigtail Wires   2Sheathed Pigtail
P06-WWFP-1SteelHead Flood Lamp 6 LED White Finish Pigtail Wires   2Sheathed Pigtail
P06-WWSP-1SteelHead Spot Lamp 6 LED White Finish Pigtail Wires   2Sheathed Pigtail
