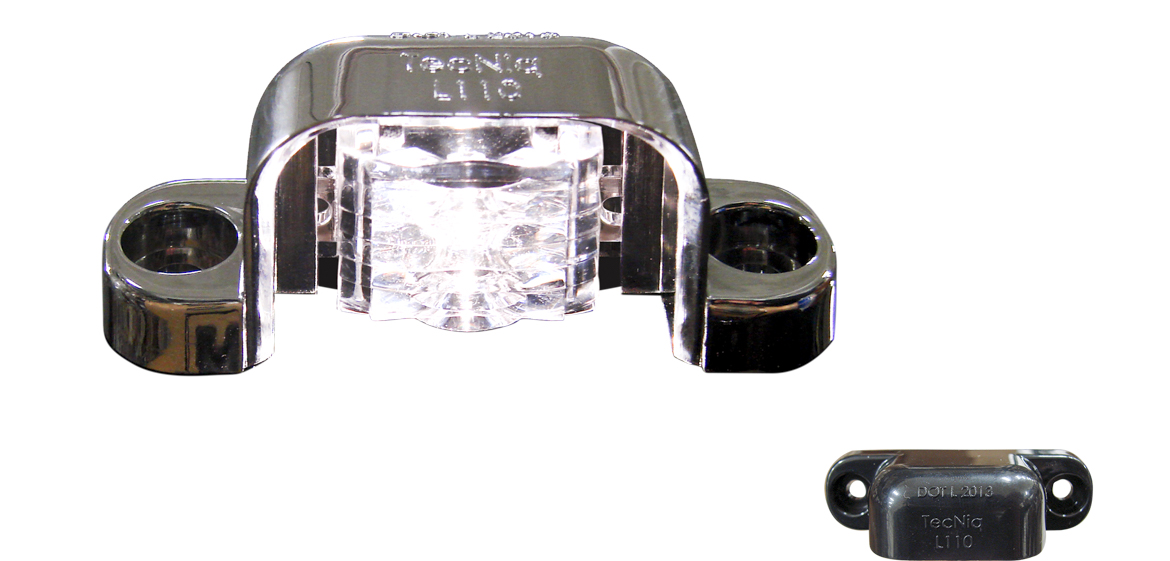

L11 : DOT rated LED License Lamp

  • SAE DOT rated
  • IP68 Rated - Dust and water proof
  • TecSeal Urethane Potting - Guaranteed Circuit Board Protection
  • Durable impact resistant lens
  • Life performance over 50,000 hours
  • Designed for Recessed Mounted license plates, and easily mounts with two screws.
  • Available in our black or chrome finish
  • DOT Rated
  • WIRE COLORS
    Bidirectional positive and ground
Dust and Waterproof. IP68 Rated.
Meets all FMVSS 108 requirements.
Reliable over 50,000 hours.

Related Products


  Product Description

Incorporating a new ultra-efficient lens design, our license lamps provide bright, even illumination that exceeds government requirements. We have incorporated the best materials including a tough automotive polycarbonate lens, urethane potting sealant and top-quality automotive grade LEDs. Together they create a durable and bright lighting solution. The Model L11 projects about 2 inches from the mounting plane and is designed to meet DOT requirements for applications where the upper edge of the license plate is underneath the plane of the lamp base or closer to the center of the vehicle than the plane of the lamp base. Available in either black or chrome finish.

  Product Specifications

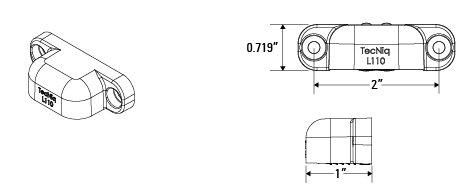

Dimensions:
LEDs: 1
Voltage: 9 - 14V DC
Current: 0.06A-0.11A
Wire:
9" pigtail
9" wire w/ 0.180" bullet
Wire Colors:
White WireInterchangeable
Black WireInterchangeable
Mounting: Surface mount using just (2) screws

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector

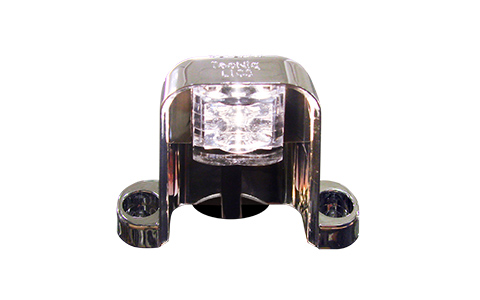

L10-0G00-1License Lamp Gasket   10-
L10-WB00-1Black Base License Lamp Vertical Plane Mount   10Sheathed Pigtail
L10-WB0G-1Black Base License Lamp Vertical Plane Mount with9" black wire, 2.5" white wire & #10 ground ring   10Pigtail w/ Ground Ring
L10-WB9B-1Black Base License Lamp Vertical Plane Mount w/.180 Bullet   100.180" Bullets
L10-WB9M-1Black Base License Lamp Vertical Plane Mount W/.156 Bullet   100.156" Bullets
L10-WC00-1Chrome Base License Lamp Vertical Plane Mount   10Sheathed Pigtail
L10-WC0F-1Chrome Base License Lamp Vertical Plane Mount w xT06-2S Connector   10T06-2S Connector
L10-WC9B-1Chrome Base License Lamp Vertical Plane Mount w/.180 Bullet   10Sheathed Pigtail
L11-WB00-1Black Base License Lamp Vertical Plane Mount   10Sheathed Pigtail
L11-WB0F-1Black Base License Lamp Vertical Plane Mount & 2 position Deutsch Connector   10ATM06-2S
L11-WB0G-1Black Base License Lamp Vertical Plane Mount W/ 9" wires & 1/4" Ground Ring   10Pigtail w/ Ground Ring
L11-WB1B-1Black Base License Lamp Vertical Plane Mount 13" Wires w 180 Bullets   100.180" Bullets
L11-WB9B-1Black Base License Lamp Vertical Plane Mount w/.180" Bullets   100.180" Bullets
L11-WB9N-1Black Base License Lamp Vertical Plane Mount w/.156" Barrels   100.156" Barrels
L11-WC00-1Chrome Base License Lamp Vertical Plane Mount   10Sheathed Pigtail
L11-WC9B-1Chrome Base License Lamp V-Plane Mount w/.180" Bullets   100.180" Bullets
L11-WC9M-1Chrome Base License Lamp Vertical Plane Mount W/.156 Bullets   100.156" Bullets
L11-WC9N-1Chrome Base License Lamp V-Plane Mount w/.156" Barrels   100.156" Barrels

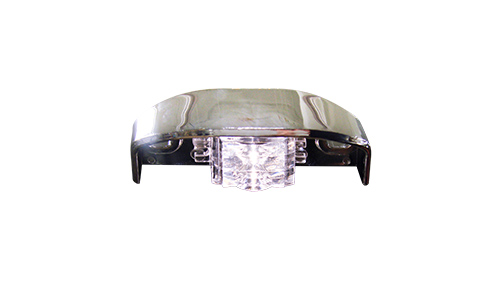

L12-WB00-1Black Base License Lamp Vertical Plane Mount   10Sheathed Pigtail
L12-WB5B-1Black Base License Lamp Vertical Plane Mount w/.180" Bullets   100.180" Bullets
L12-WB8B-1Black Base License Lamp Vertical Plane Mount 18" Lead W/.180 Bullet   100.180" Bullets
L12-WC00-1Chrome Base License Lamp Vertical Plane Mount   10Sheathed Pigtail
L14-WB00-1Black Base License Lamp Vertical Plane Mount   10Sheathed Pigtail
L14-WG00-1Grey Base License Lamp Vertical Plane Mount   10Sheathed Pigtail
L31-WB00-1License Plate Frame with Light   10Pigtail (9")
L31-WB10-1License Plate Frame with Light, 15" Wire   10Pigtail (15")

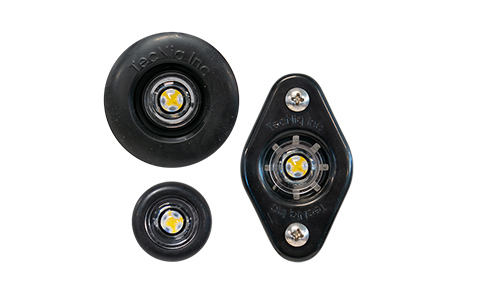

L34-WB9B-1License Lamp Black Bracket w/ .180 Bullets   10Sheathed Pigtail
L34-WC9B-1License Lamp Large Grommet w/ .180 Bullets   100.180" Bullets
L34-WG90-1License Lamp Standard Grommet 12in Pigtails   10Pigtail (12")
L34-WG9A-1License Lamp Standard Grommet w/ Amp Connector   10Amp
L34-WG9B-1License Lamp Standard Grommet w/ .180 Bullets   100.180" Bullets
L90-0B00-1License plate Full Back No Lamp Black   10-
L90-0B00-KLicense plate frame no light with screw kit   10-
L90-0G00-1License plate frame grey no light   10-
L90-0G00-KLicense plate frame grey no light with screw kit   10-
L95-0B00-1License Plate Bracket Black Tecniq   10-
L95-1B00-1Elevated License Plate Bracket Black   10-
